January 2007
4-196
WorkCentre 7132
REP 22.3.1
Reversion 4.0
Repairs/Adjustments

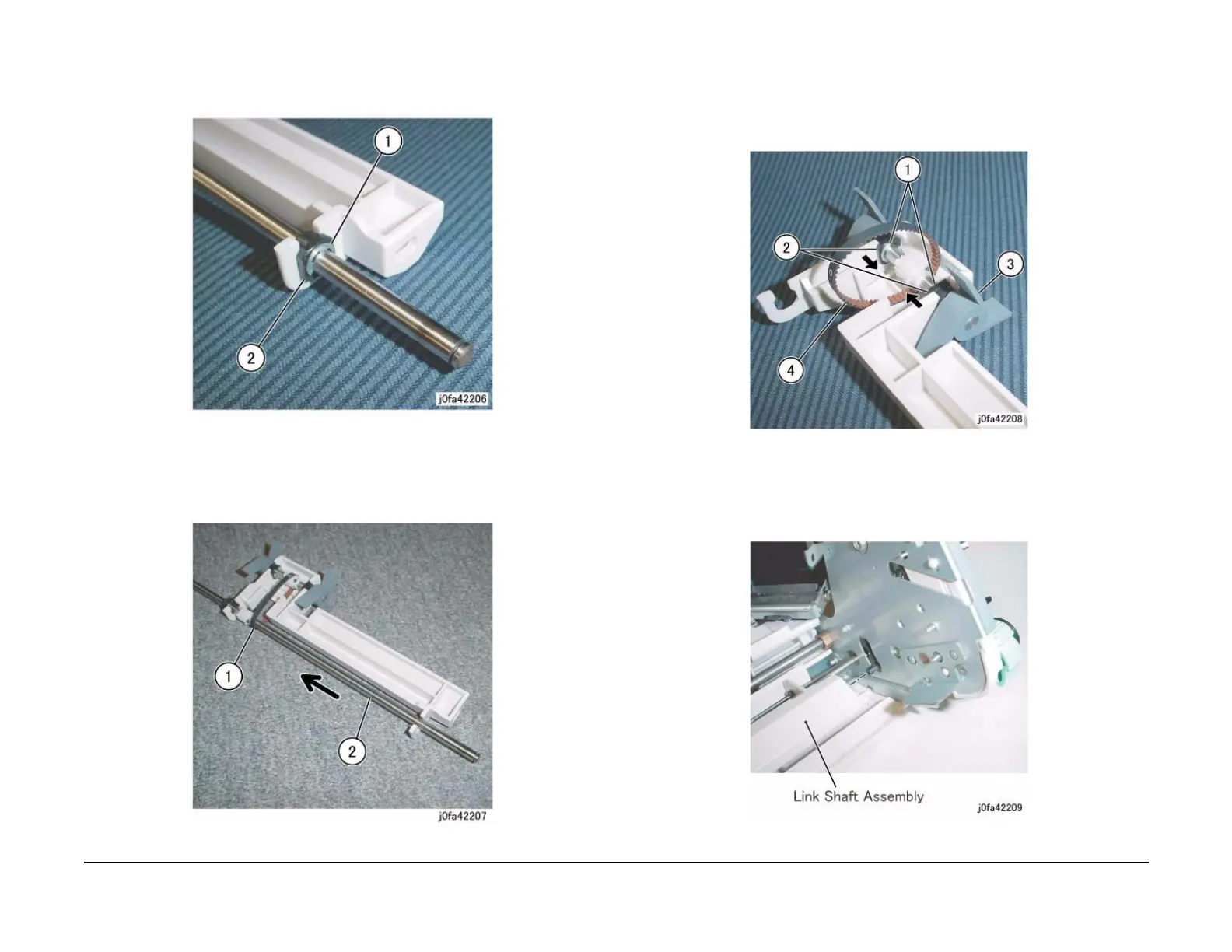

8. Remove the Bearing. (Figure 6)
(1)Remove E-Clip.
(2)Remove Bearing.
Figure 6 Removing Bearing (0fa42206)
9. Remove the Shaft Assembly. (Figure 7)
(1)Remove Paddle Belt from Pulley.
(2)Remove Shaft Assembly in the direction of the arrow.
Figure 7 Removing Shaft Assembly (j0fa42207)
10. Remove the Paddle Belt. (Figure 8)
(1)Remove E-Clips (2).
(2)Move Bearings (2) in the direction of the arrow.
(3)Remove Sub Paddle Shaft Assembly.
(4)Remove Paddle Belt.
Figure 8 Removing the Paddle Belt (j0fa42208)
Replacement
1. Reverse the removal procedure for replacement.
2. Install the Paddle Link Assembly as shown in the figure. (Figure 9)
Figure 9 Installing the Paddle Link Assembly (j0fa42209)
To Next Page
