January 2007
4-179
WorkCentre 7132
REP 16.10.1
Repairs/Adjustments
Reversion 4.0
REP 16.10.1 Stacker Motor Assembly
Parts List on PL 17.10
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Remove the Rear Cover. (REP 16.4.1)

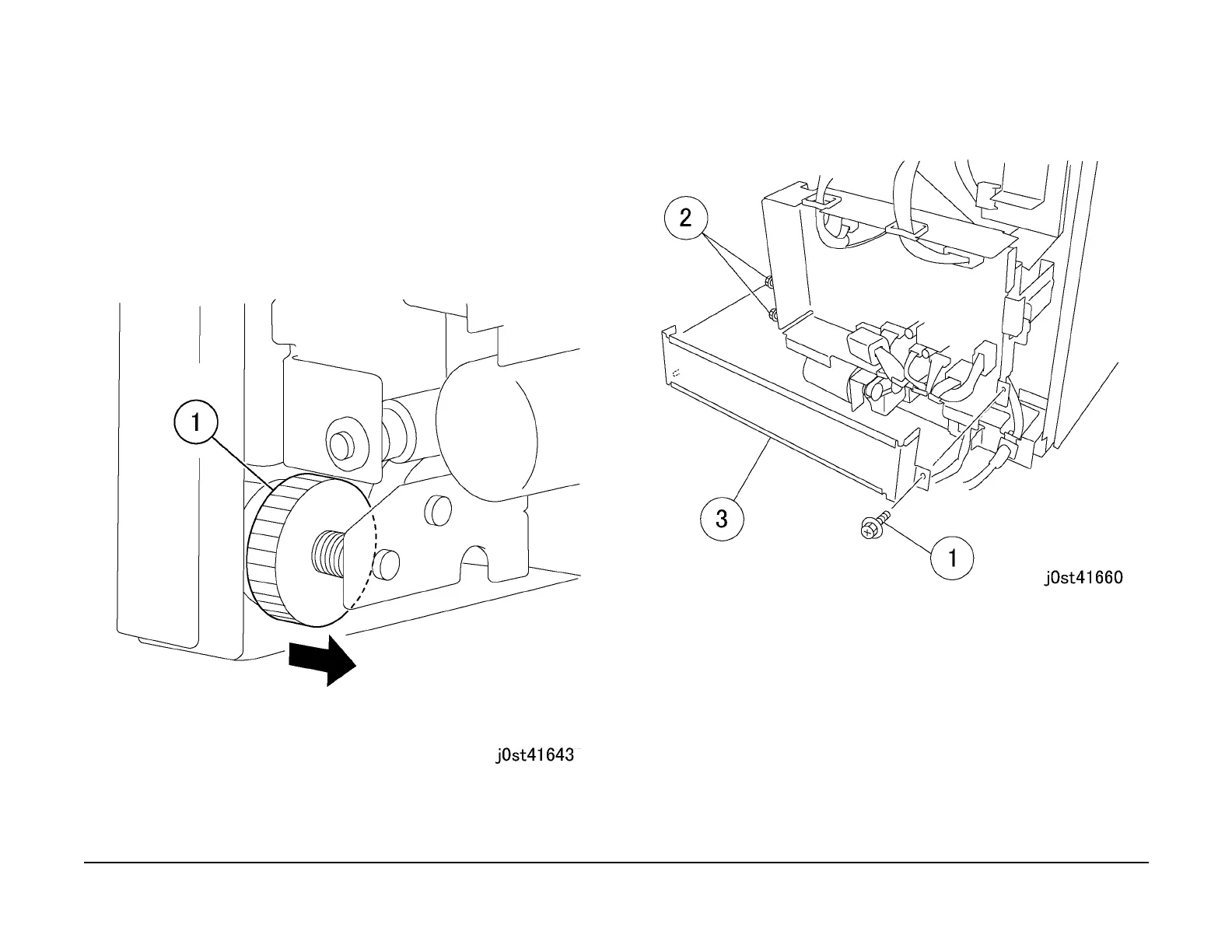

2. Slide the gear to lower down the Stacker Tray. (Figure 1)
1. Slide the gear to disengage the teeth of Cam.
Figure 1 Moving the gear
3. Remove the bracket. (Figure 2)
1. Remove the screw.
2. Loosen the screws (x2).
3. Remove the bracket.
Figure 2 Removing the bracket
4. Remove the screws. (Figure 3)
1. Remove the screws (x2).
2. Loosen the screw.
