January 2007
5-75
WorkCentre 7132
PL 17.2
Parts-list
Reversion 4.0

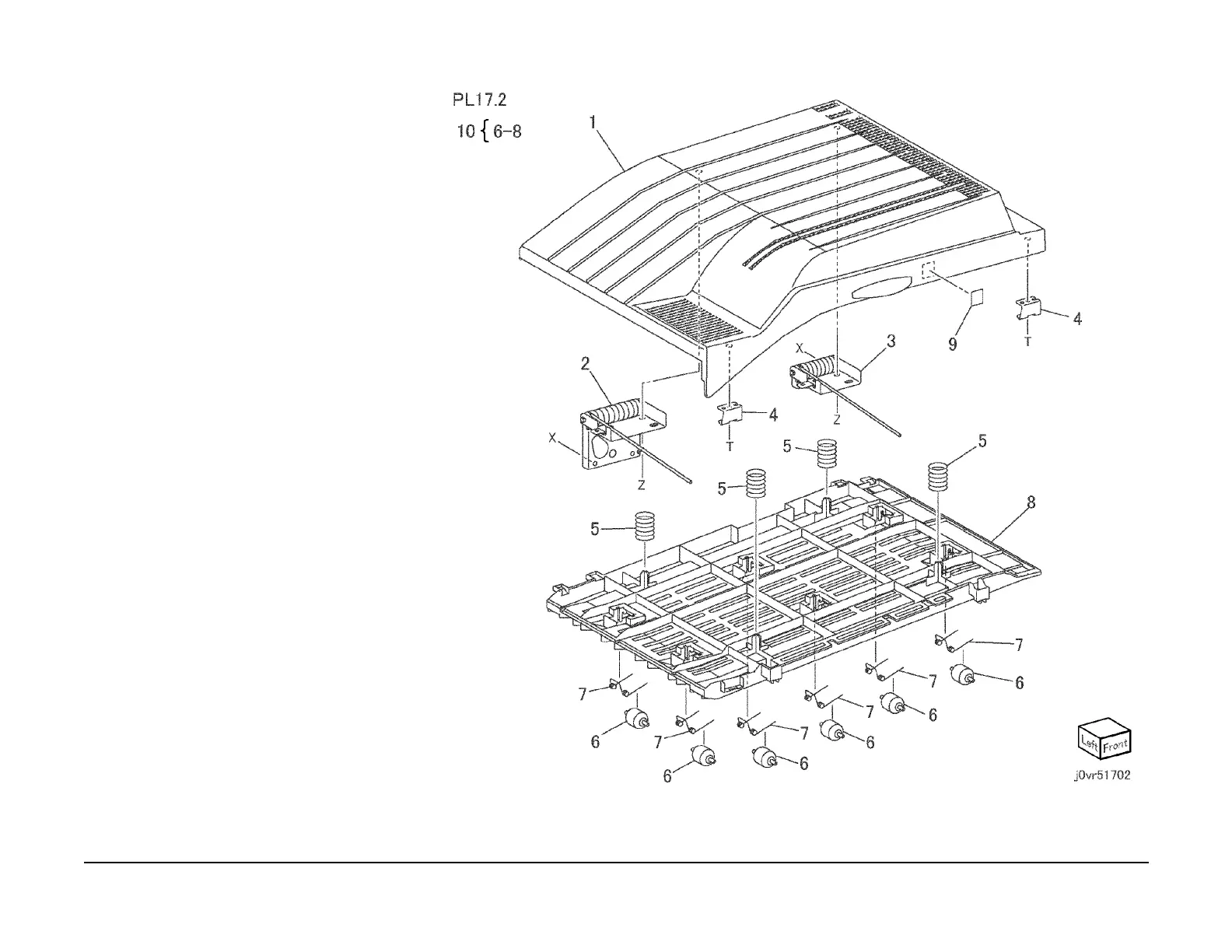

PL 17.2 H-Transport Assembly (1 of 2)
Item Part Description
1 – Top Door (P/O PL 17.1 Item 2)
2 – Hinge Assembly (P/O PL 17.1 Item
2)
3 – Hinge Assembly (P/O PL 17.1 Item
2)
4 – Bracket (P/O PL 17.1 Item 2)
5 – Spring (P/O PL 17.1 Item 2)
6 – Pinch Roll (P/O PL 17.2 Item 10)
7 – Spring (P/O PL 17.2 Item 10)
8 – Upper Chute (P/O PL 17.2 Item 10)
9 – Label (P/O PL 17.1 Item 2)
10 – Upper Chute Assembly (Not
Spared)
