January 2007
4-29
WorkCentre 7132
REP 4.2.1
Repairs/Adjustments
Reversion 4.0

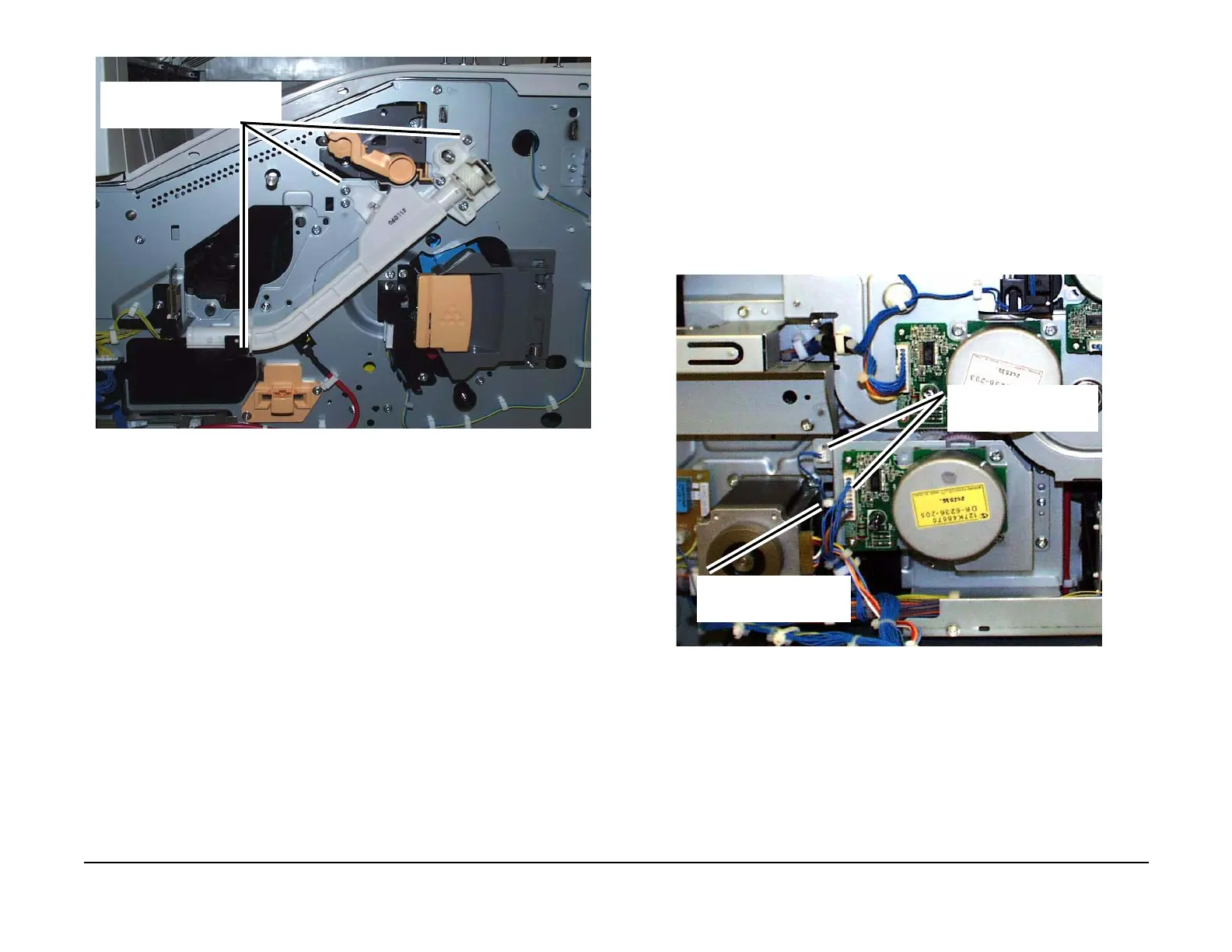

Figure 2 Removing the Waste Auger
REP 4.2.1 Developer Motor Assembly
Parts List on PL 1.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Switch off the power and disconnect the power cord.
2. Remove the Rear Lower Cover, the ESS Cover, and the MCU Cover. (REP 10.2.1)
3. Remove the MCU PWB chassis. (REP 9.1.1)
4. Remove the ESS PWB chassis. (REP 9.2.1)
5. Disconnect the connectors (2). (Figure 1)
Figure 1 Disconnecting the connectors (2)
6. Remove the Developer Motor Assembly. (Figure 2)
1
Remove the screws (3) and
remove the Waste Auger
1
Disconnect the connec-
tors (2)
2
Disconnect the wire clamp
from the frame
To Next Page
