January 2007
4-229
WorkCentre 7132
REP 22.9.5
Repairs/Adjustments
Reversion 4.0

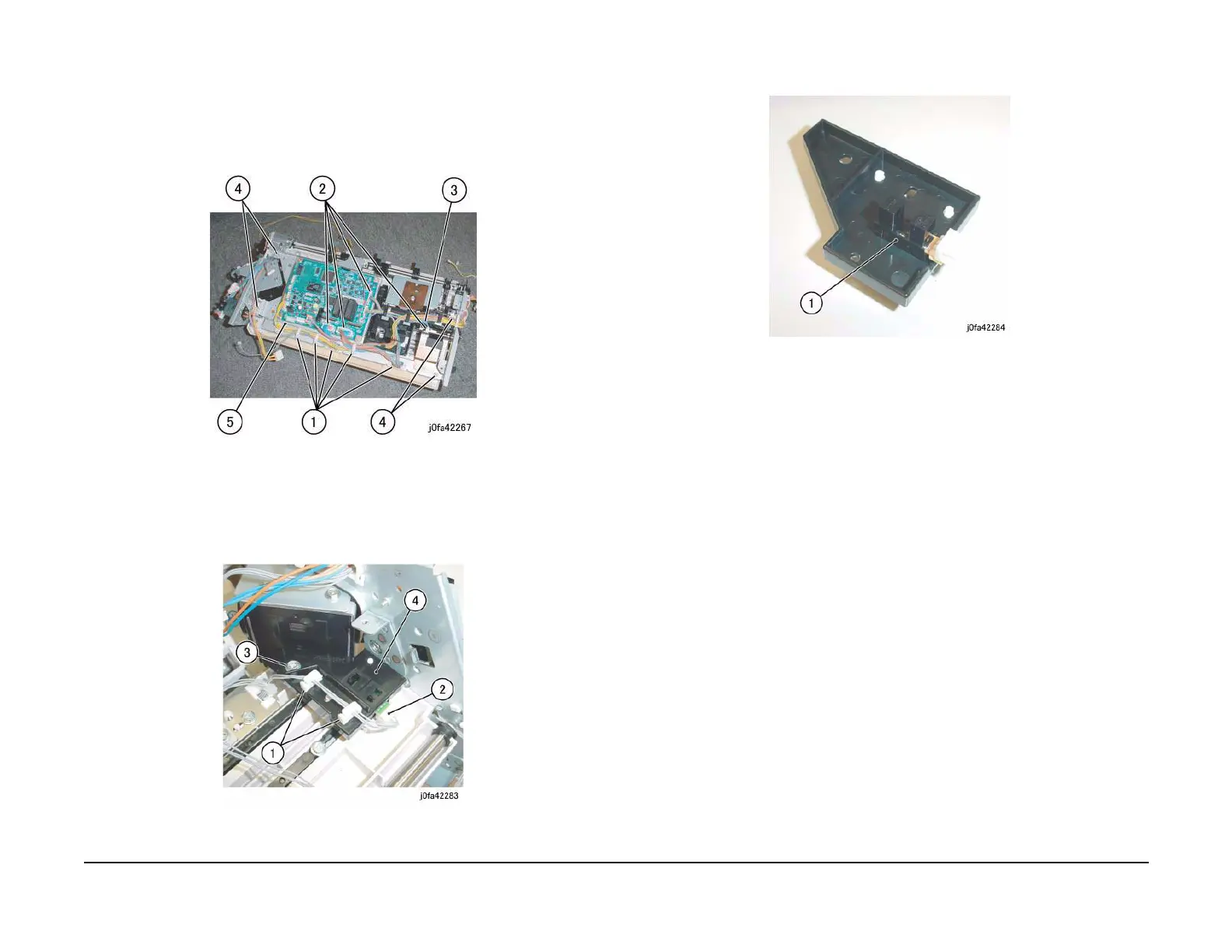

7. Remove the Bottom Plate. (Figure 2)
(1)Release Clamps (5) and remove the wire.
(2)Disconnect Connectors (8).
(3)Remove Wire form Hook.
(4)Remove Screw (4).
(5)Remove Bottom Plate.
Figure 2 Moving the Bottom Plate (j0fa42267)
8. Remove the Rear Tamper Home Sensor Assembly. (Figure 3)
(1)Release Clamps (2) and remove the wire.
(2)Remove Tapping Screw.
(3)Move Rear Tamper Home Sensor Assembly in order to disconnect the connector.
Figure 3 Removing the Rear Tamper Home Sensor Assembly (j0fa42283)
9. Remove the Rear Tamper Home Sensor. (Figure 4)
(1)Remove Rear Tamper Home Sensor from the bracket.
Figure 4 Removing the Rear Tamper Home Sensor (j0fa42284)
Replacement
1. Reverse the removal procedure for replacement.
