January 2007
5-73
WorkCentre 7132
PL 16.10
Parts-list
Reversion 4.0

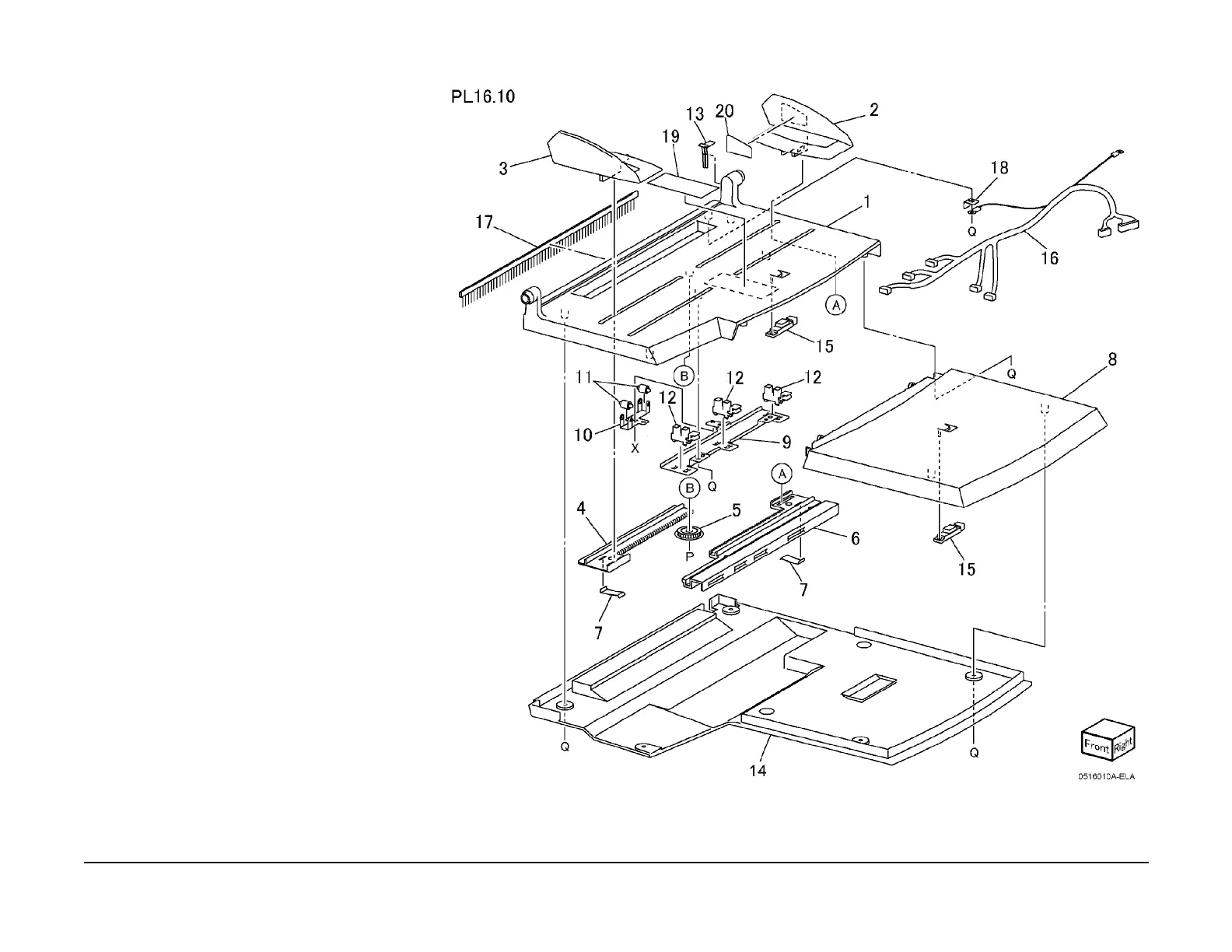

PL 16.10 DADF Document Tray
Item Part Description
1 – Hinge Tray (P/O PL 16.2 Item 3)
2 – Side Guide (Rear) (P/O PL 16.2
Item 3)
3 – Side Guide (Front) (P/O PL 16.2
Item 3)
4 – Rack Gear (P/O PL 16.2 Item 3)
5 – Pinion Gear (P/O PL 16.2 Item 3)
6 120E22370 Rack Gear and Actuator
7 809E51860 Rack Spring
8 – Tray Upper Cover (P/O PL 16.2
Item 3)
9 – Sensor Bracket (P/O PL 16.2 Item
3)
10 – Tray Spring (P/O PL 16.2 Item 3)
11 – Roller (P/O PL 16.2 Item 3)
12 930W00111 DADF Tray Set Guide Sensor 1,
DADF Tray Set Guide Sensor 2,
DADF Tray Set Guide Sensor 3
13 – Harness Guide (P/O PL 16.2 Item
3)
14 – Tray Lower Cover (P/O PL 16.2
Item 3)
15 130E89950 DADF Tray Size 1 Sensor, DADF
Tray Size 2 Sensor (P/O PL 16.2
Item 3)
16 962K19712 Tray Wire Harness
17 105E06910 Eliminator
18 – Earth Bracket (P/O PL 16.2 Item 3)
19 – Label (Installation) (P/O PL 16.2
Item 3)
20 – Label (Max) (P/O PL 16.2 Item 3)
