January 2007
5-11
WorkCentre 7132
PL 2.3
Parts-list
Reversion 4.0

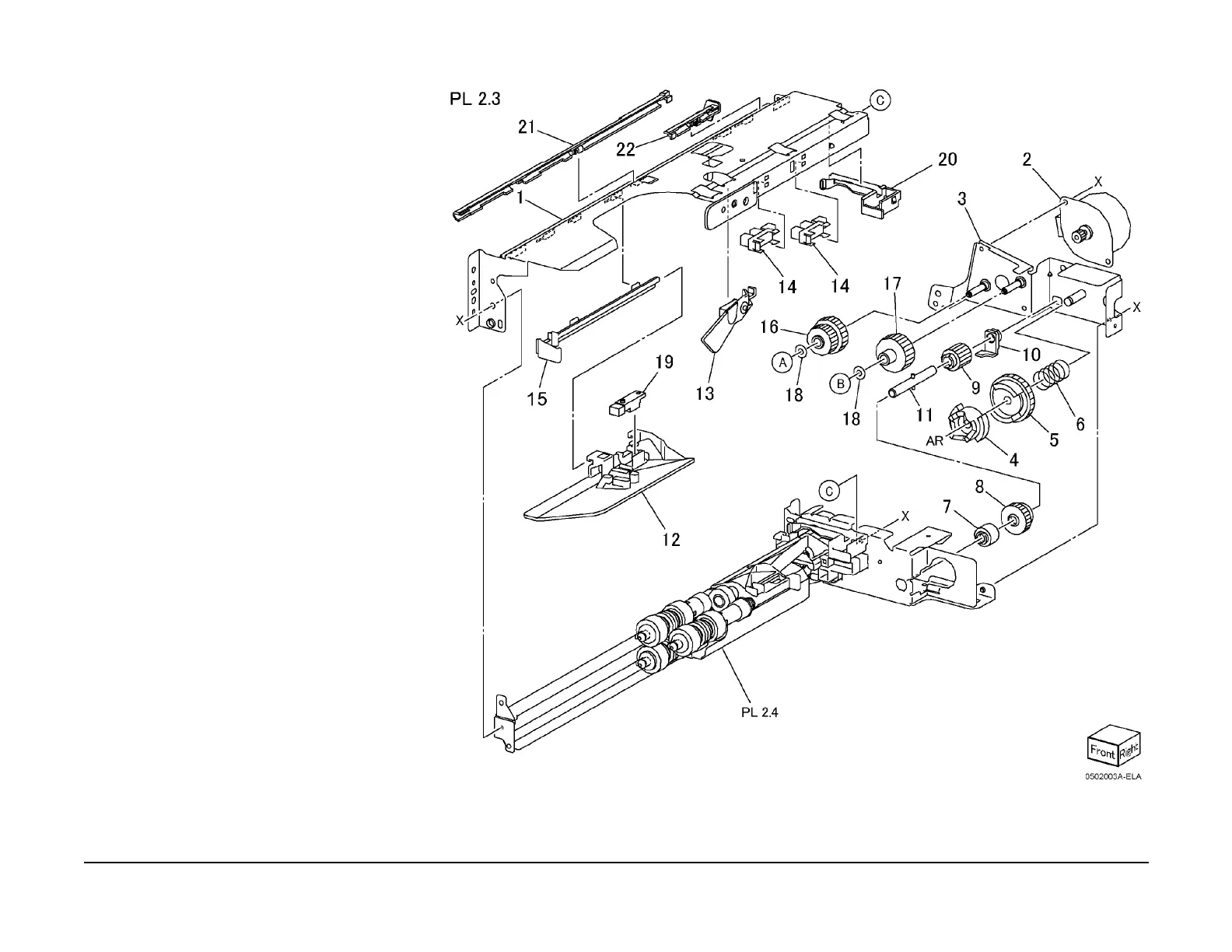

PL 2.3 Feeder 1 Assembly (1 of 2)
Item Part Description
1 – Upper Frame (P/O PL 2.1 Item 11)
2 127K38171 Tray 1 Feed Lift Motor
3 – Drive Bracket (P/O PL 2.1 Item 11)
4 014E44770 Spacer
5 – Gear (31) (P/O PL 2.1 Item 11)
6 – Spring (P/O PL 2.1 Item 11)
7 – Clutch (P/O PL 2.1 Item 11)
8 – Gear (P/O PL 2.1 Item 11)
9 – Gear (33T) (P/O PL 2.1 Item 11)
10 – Bearing Shaft (P/O PL 2.1 Item 11)
11 – Drive Shaft (P/O PL 2.1 Item 11)
12 – Chute (P/O PL 2.1 Item 11)
13 120E22481 Actuator
14 930W00113 No Paper Sensor, Level Sensor
15 – Rail (P/O PL 2.1 Item 11)
16 – Gear (28/21) (P/O PL 2.1 Item 11)
17 – Gear (29) (P/O PL 2.1 Item 11)
18 – Washer (P/O PL 2.1 Item 11)
19 930W00211 Prefeed Sensor
20 – Harness Rear Holder (P/O PL 2.1
Item 11)
21 – Upper Harness Holder (P/O PL 2.1
Item 11)
22 – Center Harness Holder (P/O PL 2.1
Item 11)
To Next Page
