WorkCentre 7132
REP 15.1.1
Repairs/Adjustments
Reversion 4.0
REP 15.1.1 DADF
Parts List on PL 16.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
The DADF is heavy component. Take care when lifting the DADF.
1. Disconnect the connector. (Figure 1)
1. Loosen the screws (x2) and disconnect the connector.

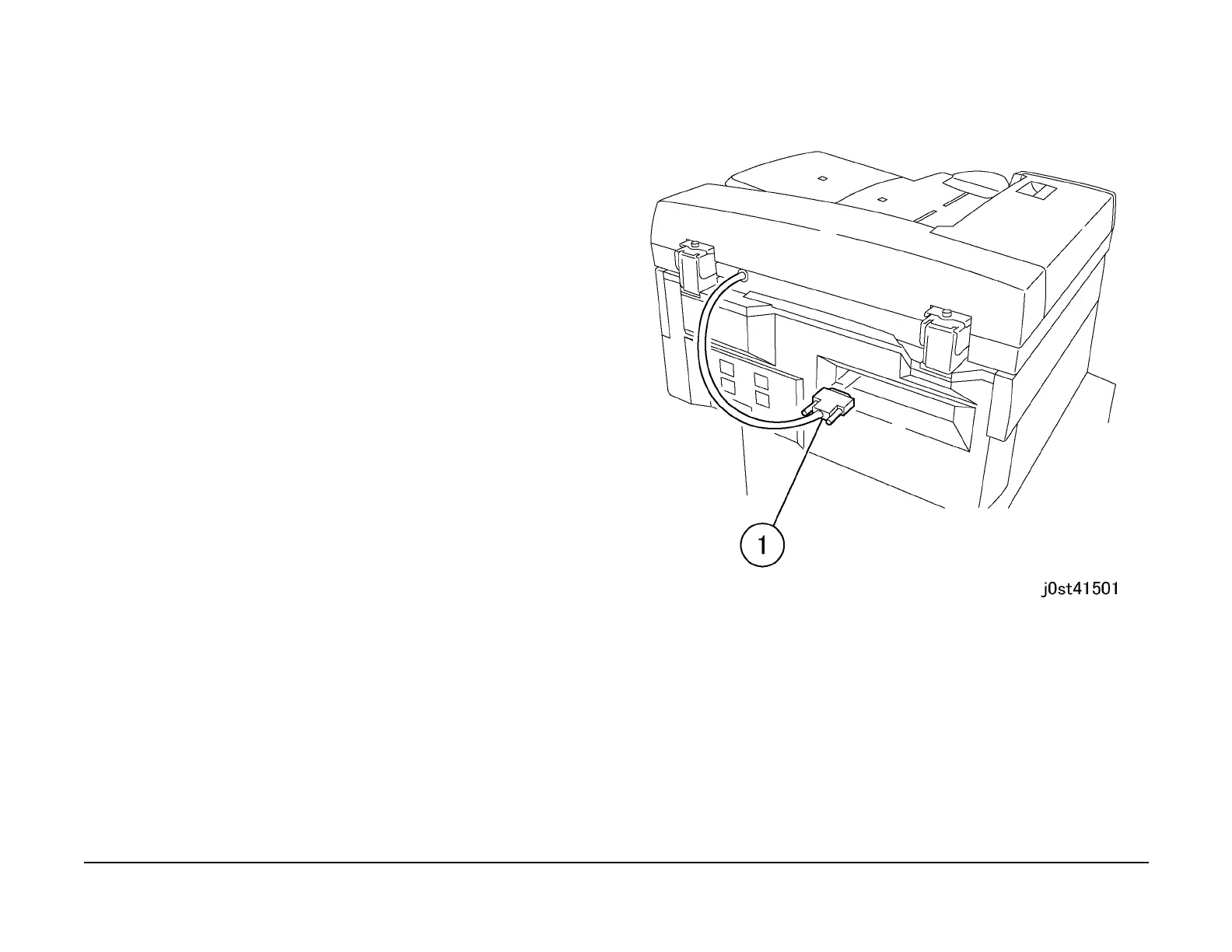

Figure 1 Disconnecting the connector
2. Remove the DADF. (Figure 2)
1. Remove the Knob Screws (x2).
2. Remove the DADF.
To Next Page
