January 2007

5-29

WorkCentre 7132

PL 9.1

Parts-list

Reversion 4.0

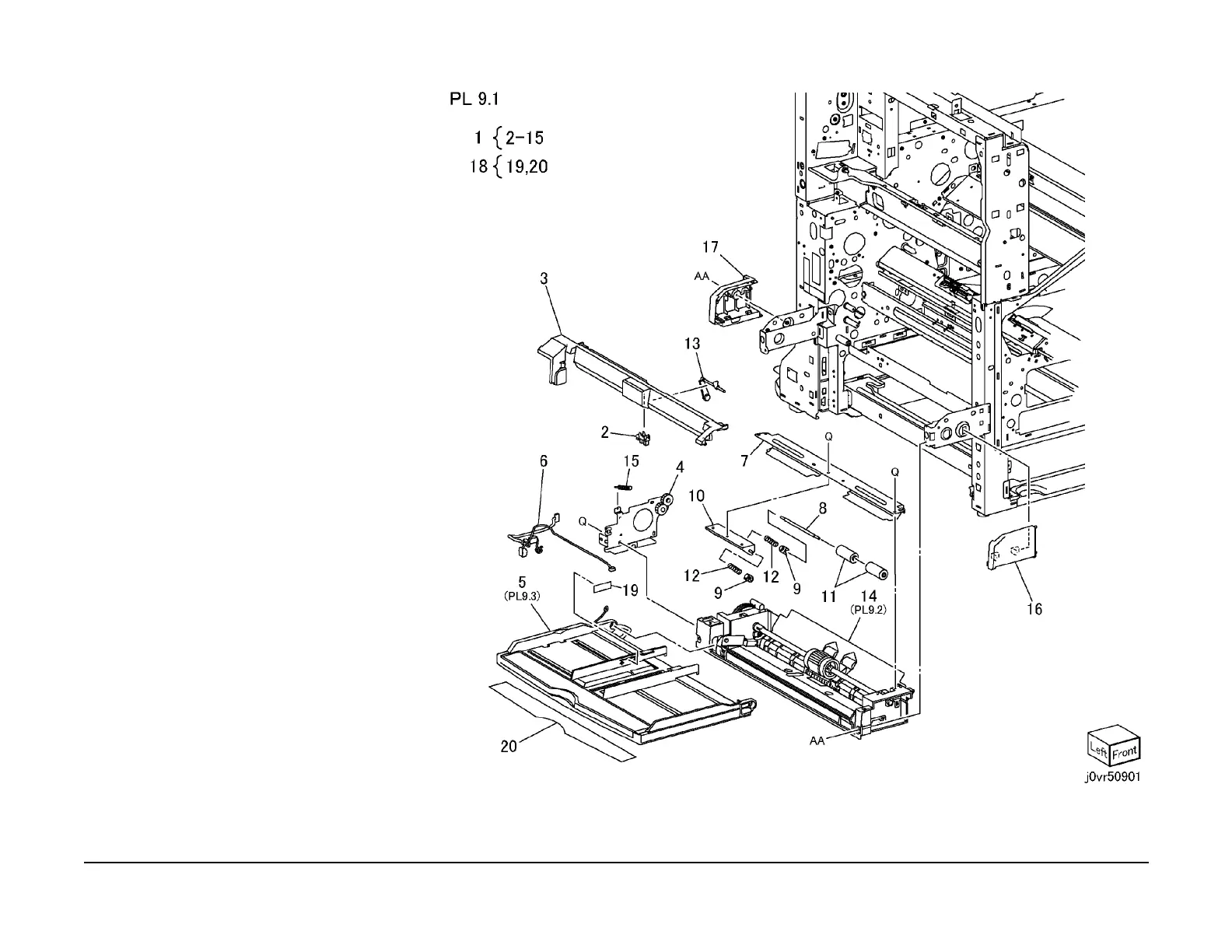

PL 9.1 MSI Assembly

Item Part Description

1 – MSI Feeder Assembly (Not Spared)

(REP 7.1.1)

2 930W00113 MSI Paper Detact Sensor

3 – Upper Frame (P/O PL 9.1 Item 1)

4 – Gear Bracket (P/O PL 9.1 Item 1)

5 050K56600 MSI Tray Assembly

6 962K13120 MSI Harness

7 – Pinch Chute (P/O PL 9.1 Item 1)

8 – Pinch Shaft (P/O PL 9.1 Item 1)

9 – Spring Spacer (P/O PL 9.1 Item 1)

10 – pinch Guide (P/O PL 9.1 Item 1)

11 604K20410 Kit 2 Roller 2

12 – Pinch Spring (P/O PL 9.1 Item 1)

13 120E22231 Actuator

14 801K22671 Lower Frame Assembly

15 – MSI Spring (P/O PL 9.1 Item 1)

16 – MSI Front Cover (Not Spared)

17 – MSI Rear Cover (Not Spared)

18 604K20520 MSI Label Kit

19 – Label (P/O PL 9.1 Item 18)

20 – Label (Max) (P/O PL 9.1 Item 18)
