January 2007
4-55
WorkCentre 7132
REP 7.1.1
Repairs/Adjustments
Reversion 4.0
REP 7.1.1 MSI Assembly
Parts List on PL 9.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the MSI Rear Cover. (Figure 1)
1. Remove the screw.
2. Remove the MSI Rear Cover.

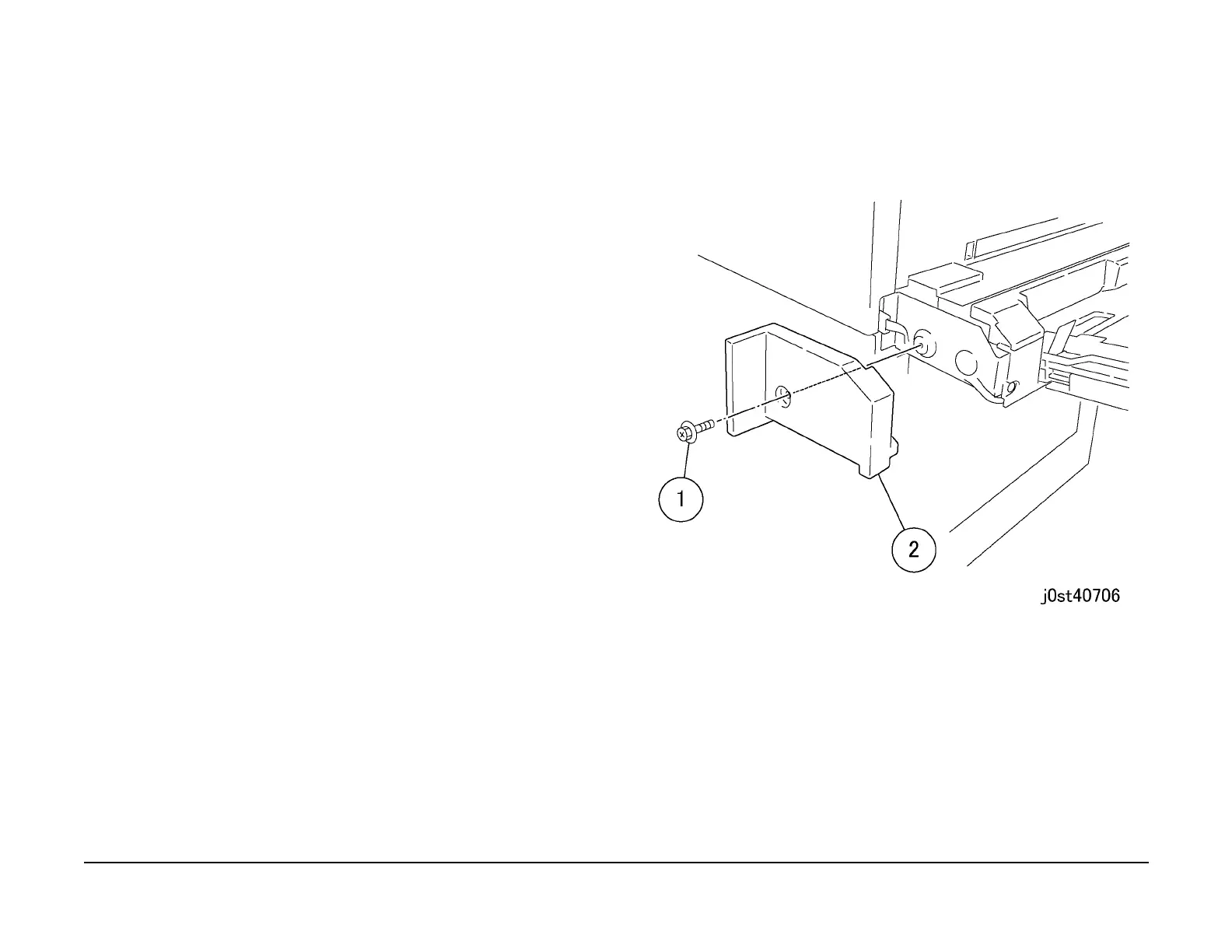

Figure 1 Removing the MSI Rear Cover
2. Disconnect the connector. (Figure 2)
1. Release the Wire Harness from the clamp.
2. Release the Wire Harness from the clamp.
3. Disconnect the connector.
