Xerox WorkCentre 7132 Service Documentation

January 2007
4-56
WorkCentre 7132
REP 7.1.1
Reversion 4.0
Repairs/Adjustments

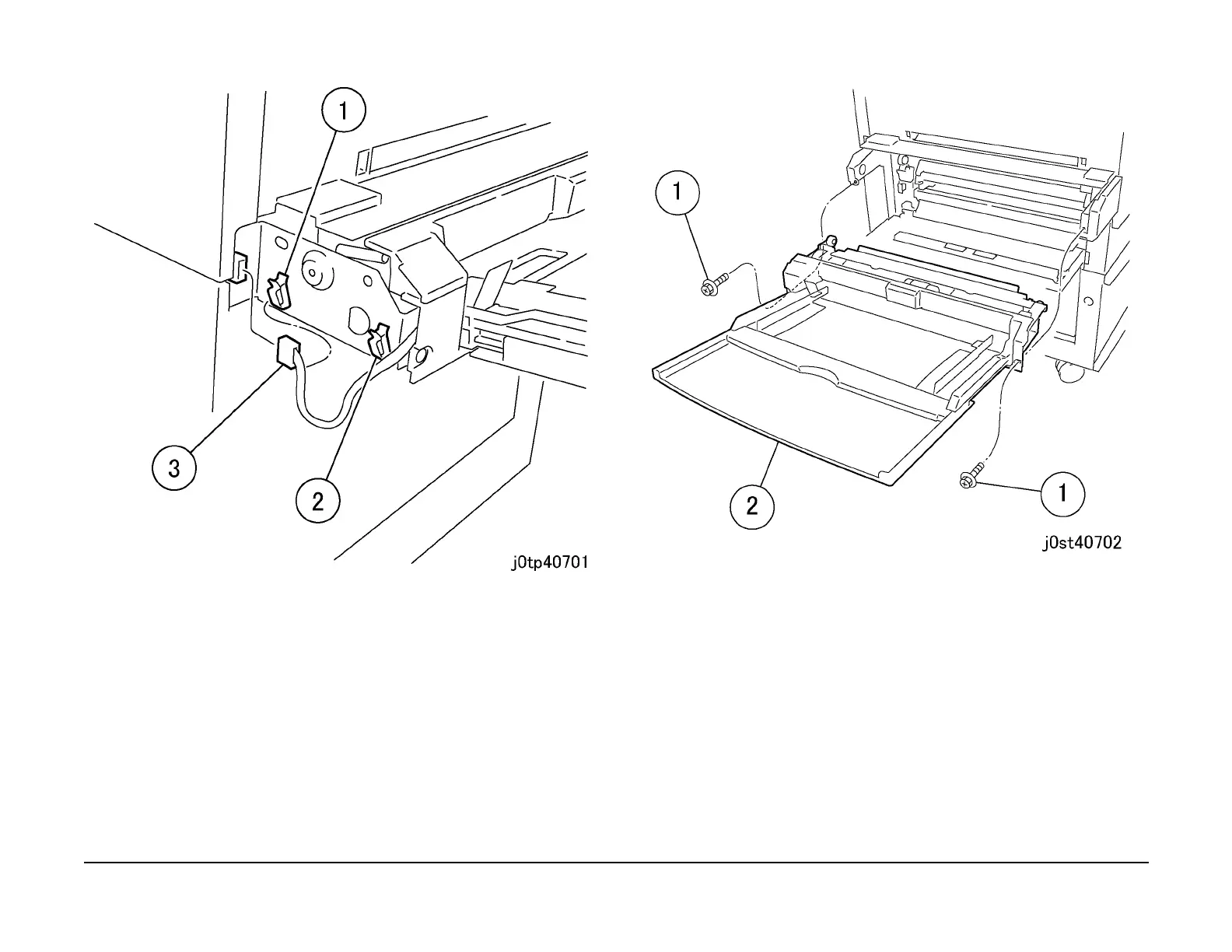

Figure 2 Disconnecting the connector
3. Remove the MSI Assembly. (Figure 3)
1. Remove the screws (2).
2. Remove the MSI Assembly.
Figure 3 Removing the MSI Assembly
Replacement
1. To install, carry out the removal steps in reverse order.
