WorkCentre 7132
REP 13.1.2
Reversion 4.0
Repairs/Adjustments
REP 13.1.2 Tray 3 Assembly (TTM)
Parts List on PL 15.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Pull out Tray 3.
2. Remove the paper from Tray 3.
3. Remove the Tray 3 Assembly. (Figure 1)
1. Remove the screws (2).
2. Push in Tray 3 Transport Assembly.
3. Remove the screw.
4. Remove the stopper.
5. Remove the Tray 3 Assembly.

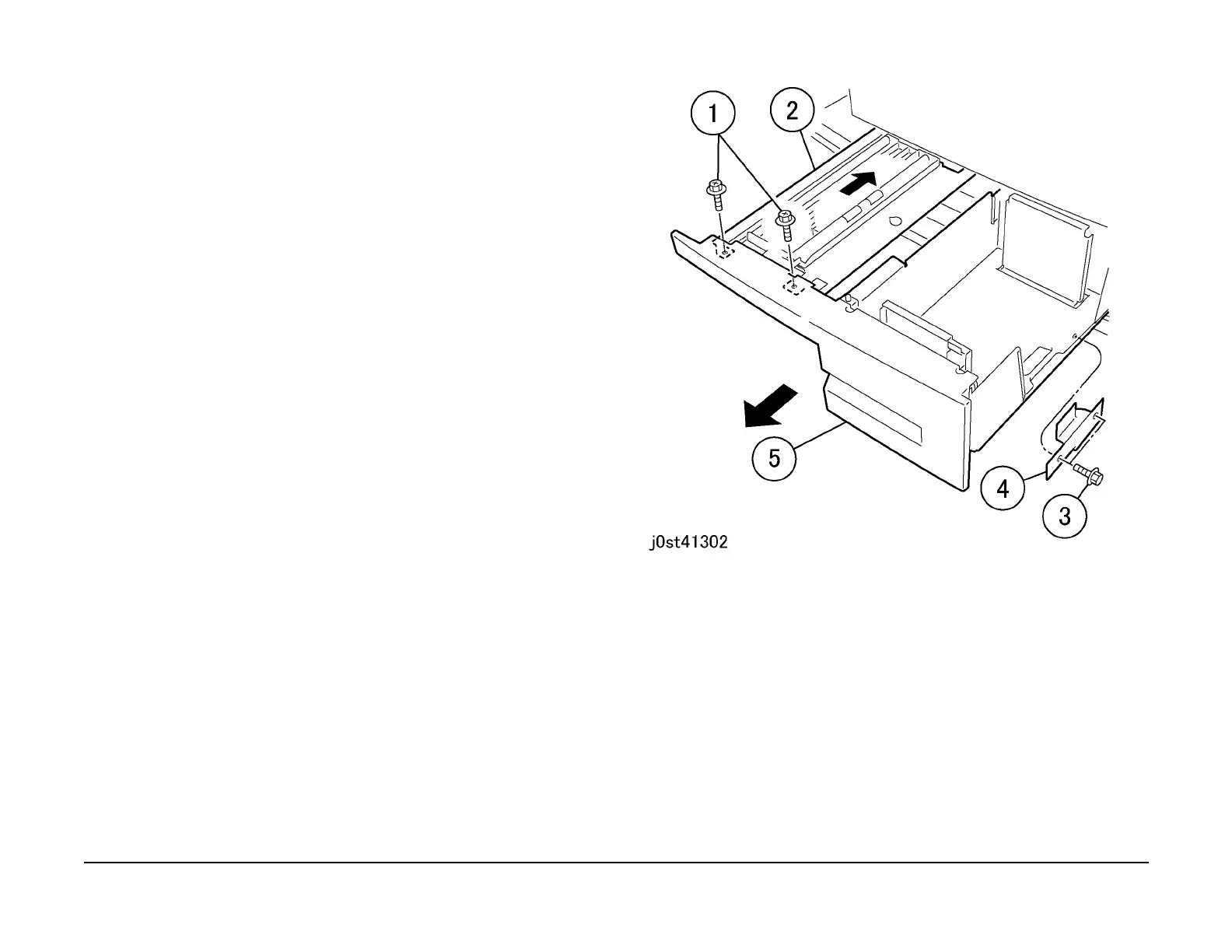

Figure 1 Removing the Tray 3 Assembly
Replacement
1. To install, carry out the removal steps in reverse order.
