Xerox WorkCentre 7132

January 2007
6-221
WorkCentre 7132
Product Tools and Test Patterns,
General procedures information
Reversion 4.0
Product Tools and Test Patterns Log Book Storage
A protected out-of-sight space exists at the left front corner, to the left of the center output tray.
Fold the log and insert into this space.

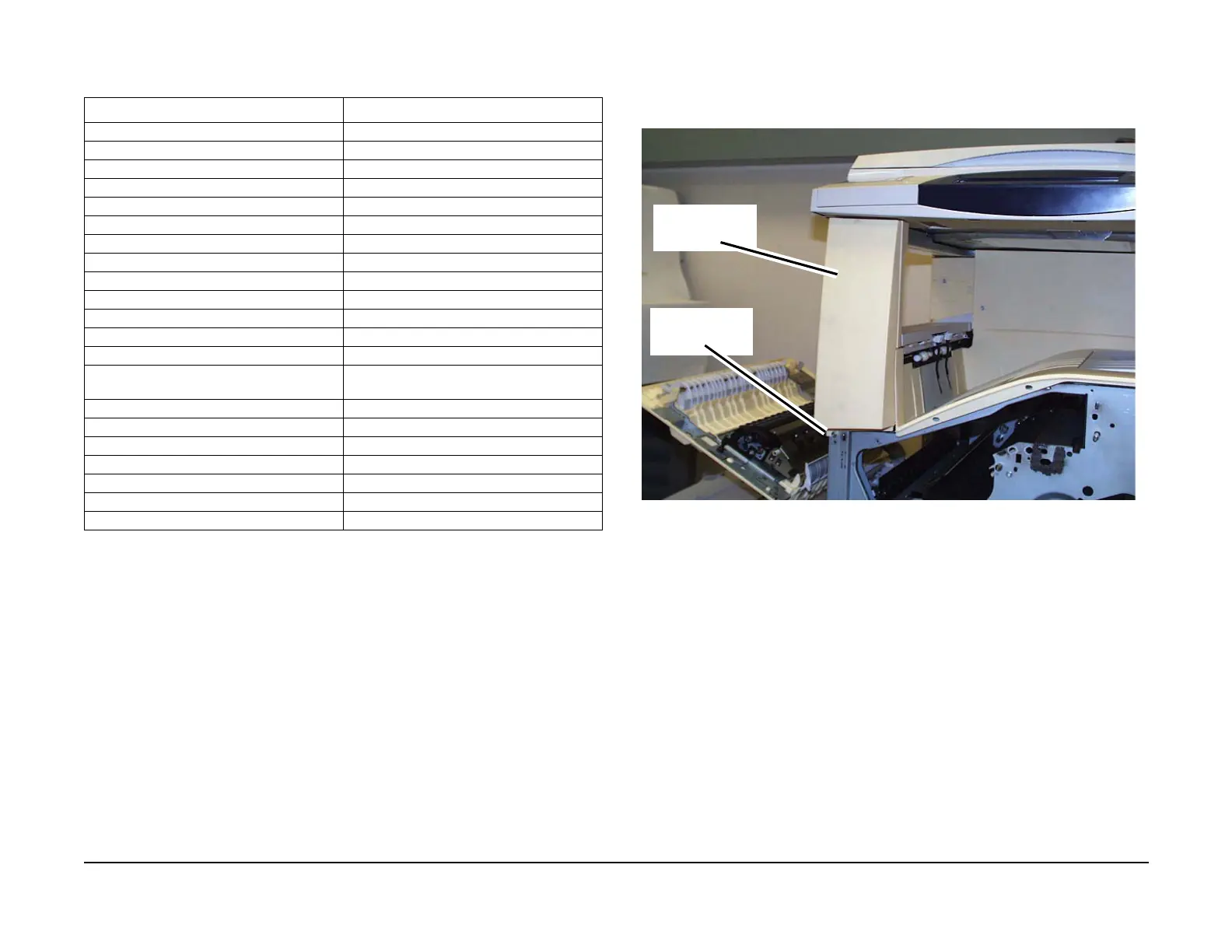

Figure 1 Log Book Storage Compartment
Table 1 Tools and Test Patterns
Description Part Number
Geometric Test Pattern 082E 08220
HVPS test probe (1/10X) 600T 01653
HVPS test probe adapter 600T 01996
Copy Paper Carrying Case 600T 01999
Copy Paper Zip Lock Bag 600T 02000
Colotech + - 90 gsm - A3 003R 94642
Service and Machine NVM Log 700P 97436
Serial cable 600T 02058
USB cable, 6 ft./2 meter Firmware Upload 600T02231
Network Interface (Crossover) cable 600T 02252
Parallel printer cable 117E 19340
PWS power cord adapter 600T 02018
L Probe 600T 02177
Machine Resident Disk Kit
(Machine Settings Floppy)
300K 63850
A3 (11” x 17”) Test Pattern 082E 02000
A3 Test Pattern 082P 521
A4 Test Pattern 082E 02010
8.5” x 11” Test Pattern 082E 02020
8.5” x 14” Test Pattern 082P 524
SIR 542.00 Solid area density Scale 082E 08230
SIR 494.00 Visual Scale 082P 00448
2
Lift up the panel
and remove
1
Remove the
screw (1)
