January 2007
4-21
WorkCentre 7132
REP 3.1.1
Repairs/Adjustments
Reversion 4.0
REP 3.1.1 ROS Unit
Parts List on PL 3.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Switch off the power and disconnect the Power Cord.
2. Remove the Right Side Cover. (REP 10.2.3)
3. Remove the Power Supply. (REP 9.2.3)
4. Remove the ROS Cooling Fan bracket. (Figure 1)

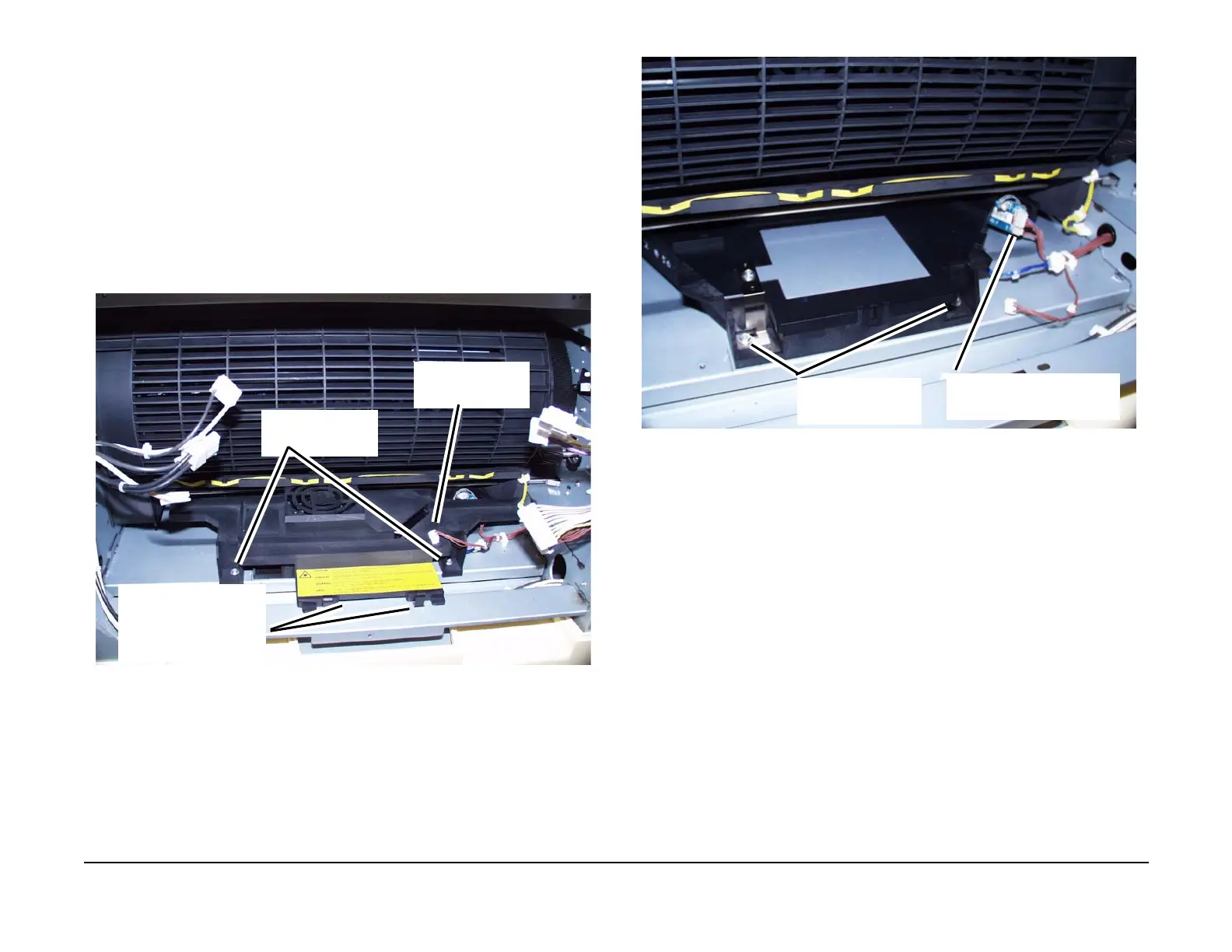

Figure 1 Removing the ROS Cooling Fan Bracket
5. Preparing to remove the ROS Assembly. (Figure 2)
Figure 2 Preparing to remove the ROS Assembly
6. Removing the ROS Assembly. (Figure 3)
1
Disconnect the con-
nector
2
Remove the screws
(2)
3
Release the spring latches
and remove the Cooling Fan
Bracket,
2
Remove the screws (2)
1
Disconnect the connectors (2)
To Next Page
