January 2007
5-66
WorkCentre 7132
PL 16.3
Reversion 4.0
Parts-list

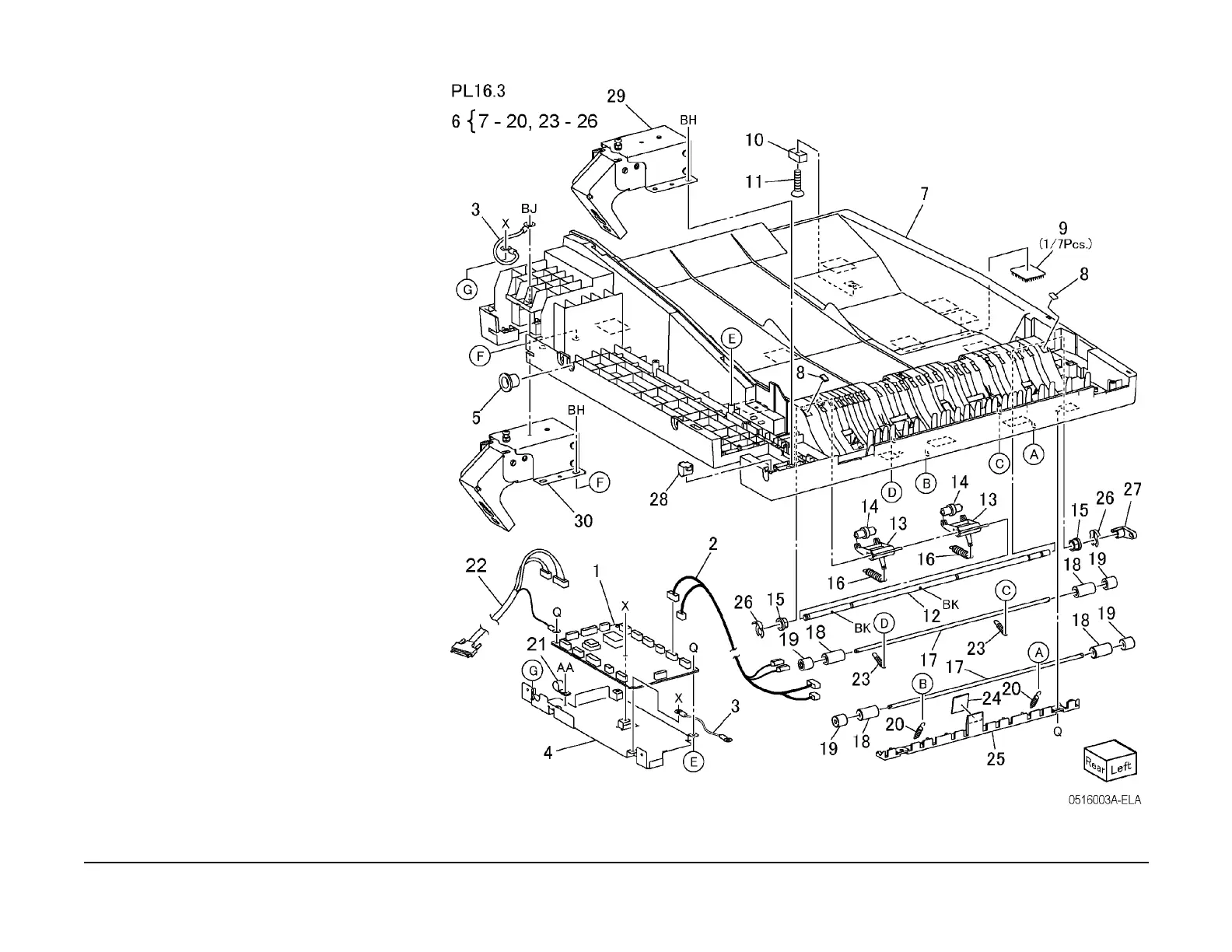

PL 16.3 DADF Base Cover
Item Part Description
1 960K02756 DADF PWB (REP 15.3.1)
2 962K19793 Harness
3 – Ground Wire (P/O PL 16.2 Item 1)
4 – PWB Bracket (P/O PL 16.2 Item 1)
5 – Open Type Bush (P/O PL 16.2 Item
1)
6 801K22541 Frame Assembly
7 – DADF Base Frame (P/O PL 16.3
Item 6)
8 – Gate Pad (P/O PL 16.3 Item 6)
9 – Tape (P/O PL 16.3 Item 6)
10 – Magnet (Interlock) (P/O PL 16.3
Item 6)
11 – Magnet Screw (P/O PL 16.3 Item 6)
12 – Exit Shaft (P/O PL 16.3 Item 6)
13 – Exit Holder (P/O PL 16.3 Item 6)
14 – Pinch Roll (Exit) (P/O PL 16.3 Item
6)
15 – Bearing (P/O PL 16.3 Item 6)
16 – Exit Spring (P/O PL 16.3 Item 6)
17 – Pinch Shaft (P/O PL 16.3 Item 6)
18 – Registration Pinch Roll (P/O PL
16.3 Item 6)
19 – Registration Pinch Roll (P/O PL
16.3 Item 6)
20 – Registration Spring (P/O PL 16.3
Item 6)
21 – P-Clamp (P/O PL 16.2 Item 1)
22 117E27450 DADF IIT Cable
23 – Spring (P/O PL 16.3 Item 6)
24 – Sensor Pad (P/O PL 16.3 Item 6)
25 – Registration Cover (P/O PL 16.3
Item 6)
26 028E94260 KL-Clip
27 – Solenoid Lever (P/O PL 16.2 Item
1)
28 – Rear Cap Cover (P/O PL 16.2 Item
1)
29 036K91551 Left Counter Balance (REP 15.3.2)
30 036K91561 Right Counter Balance (REP
15.3.3)
