January 2007
7-53
WorkCentre 7132
7.3.15 Wire Net DC COM (+5VRTN)-2
Wiring-data
Reversion 4.0
7.3.15 Wire Net DC COM (+5VRTN)-2

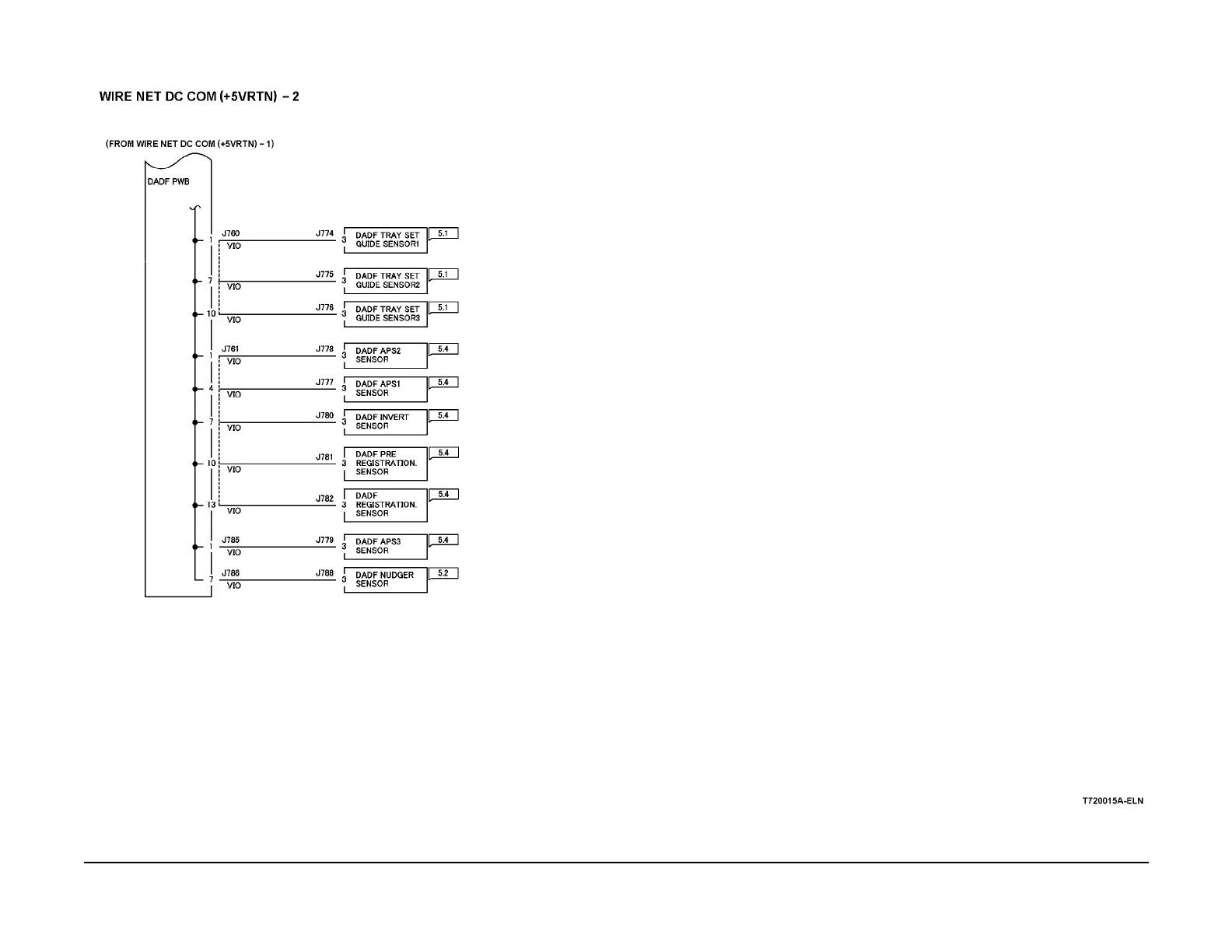

Figure 1 Wire Net DC COM (+5VRTN)-2
