Xerox WorkCentre 7132 Service Documentation

January 2007
5-34
WorkCentre 7132
PL 11.1
Reversion 4.0
Parts-list

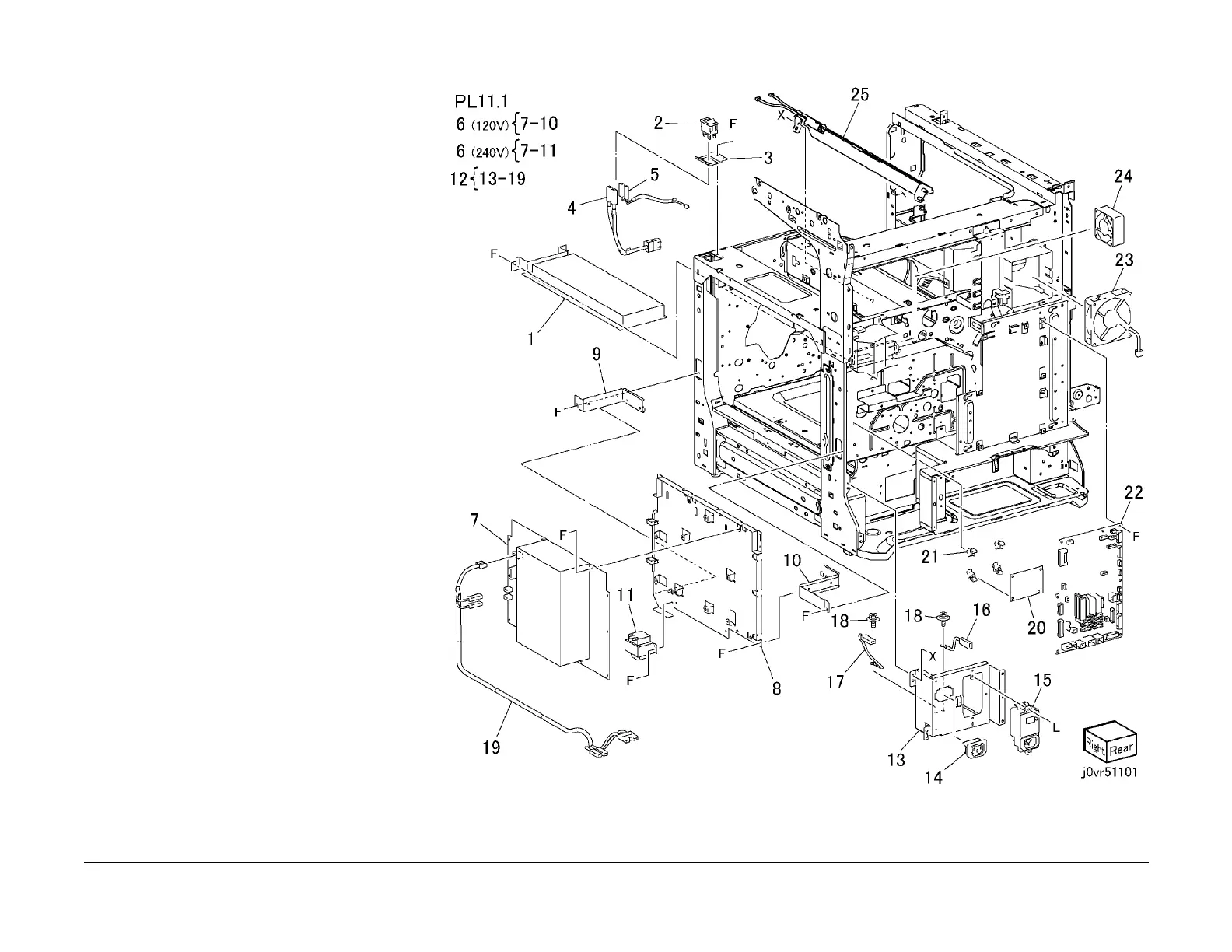

PL 11.1 Electrical
Item Part Description
1 105E16410 PSHV-04A1
2 110E11230 Main Power Switch
3 – Bracket (Not Spared)
4 – Main Switch AC Harness (Not
Spared)
5 – Main Switch DC Harness (Not
Spared)
6 – Power (120v) Chassis Assembly,
Unit (240v) Chassis Assembly (Not
Spared) (REP 9.2.3)
7 105E16382 Power Unit (120v) (REP 9.2.3)
– 105E16392 Power Unit (240v) (23/28CPM)
8 – Chassis (P/O PL 11.1 Item 6)
9 – LVPS Front Bracket (P/O PL 11.1
Item 6)
10 – LVPS Rear Bracket (P/O PL 11.1
Item 6) (33CPM)
11 104E94890 Choke Coil (220 Only)
12 101K52640 AC Chassis Assembly
13 – AC Chassis (P/O PL 11.1 Item 12)
14 – Outlet (P/O PL 11.1 Item 12)
15 908W01201 GFI
16 – FG 1 VRN Harness (P/O PL 11.1
Item 12)
17 – FG 2 VRN Harness (P/O PL 11.1
Item 12)
18 – Screw (P/O PL 11.1 Item 12)
19 – AC Power VRN Harness (P/O PL
11.1 Item 12)
20 960K09570 PWB Relay
21 – PWB Support
22 960K09388 MCU PWB (REP 9.1.1)
23 927W00144 Fan-Fuser
24 927W00121 Fan-Rear (REP 10.3.1)
25 130K69060 Sensor Bar Assembly (REP 4.3.1)
