January 2007
3-32
WorkCentre 7132
201mm Streaks from the lead edge Defect
Reversion 4.0
Image Quality
201mm Streaks from the lead edge Defect

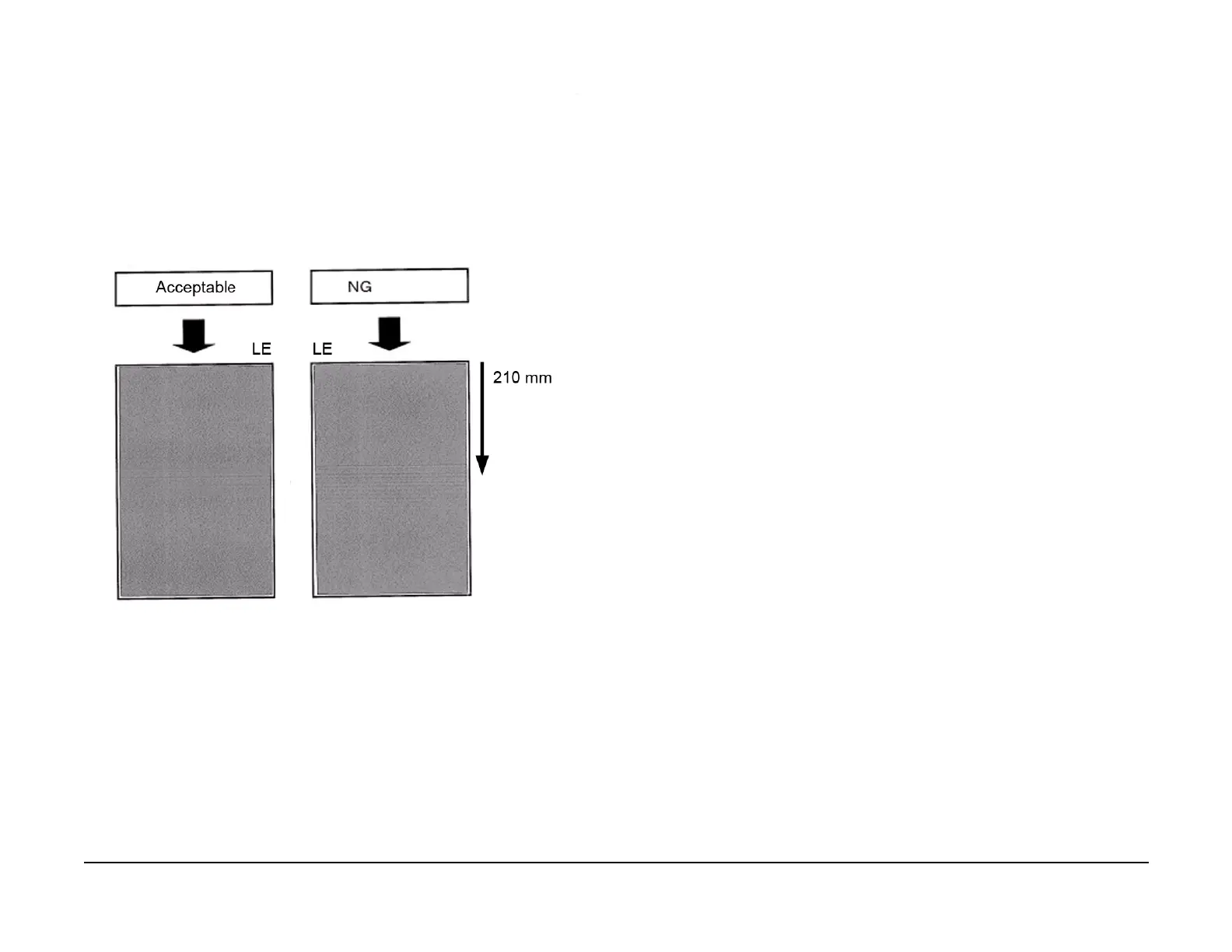

Figure 1 201mm Streaks Defect Sample (VA-005)
Cause
The 201mm streaks appear in the same position of the black images, 201 mm from the lead
edge.
Corrective Action
Replace the 2nd BTR (PL 2.7).
