January 2007
5-54
WorkCentre 7132
PL 15.1
Reversion 4.0
Parts-list

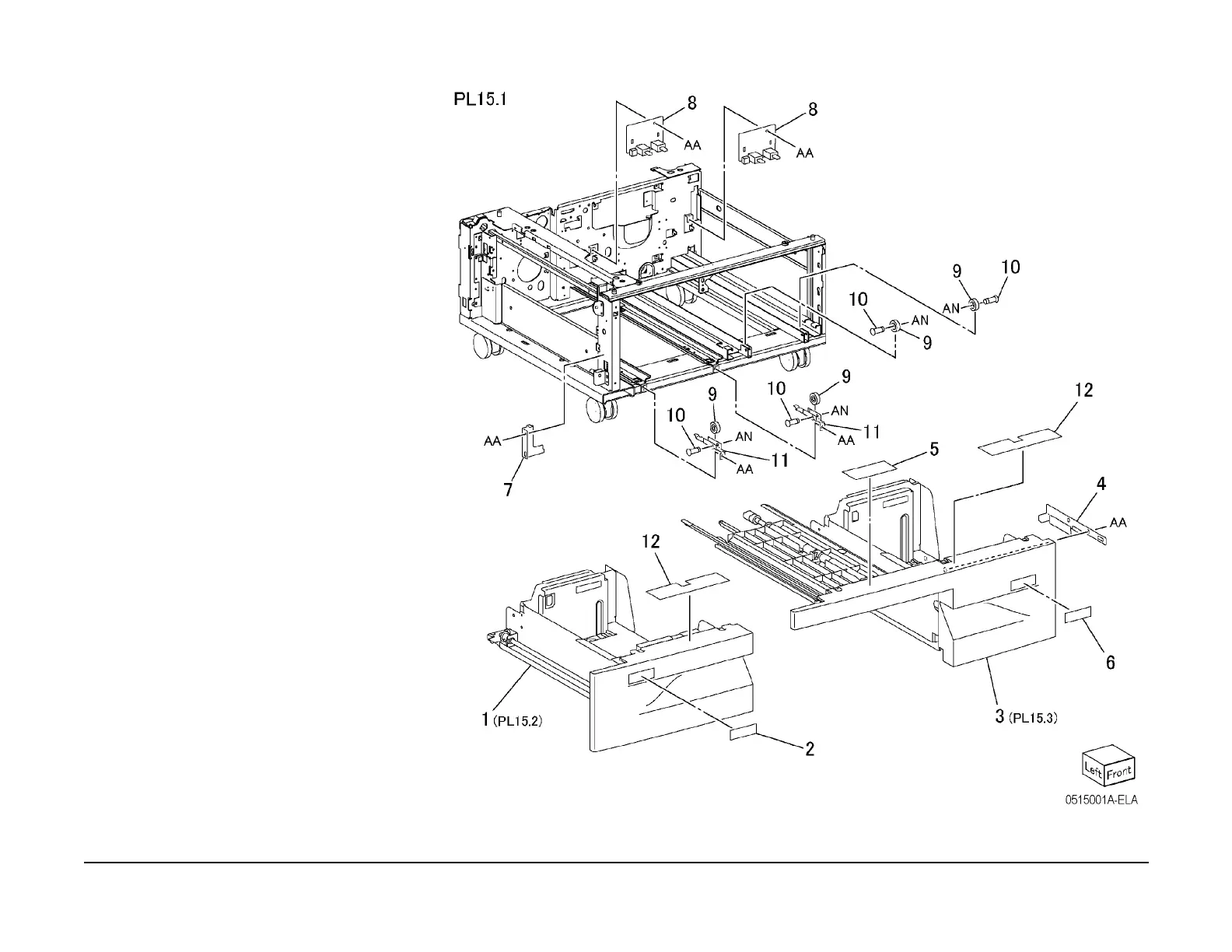

PL 15.1 Tray 2/3, feeder
Assembly-TTM
Item Part Description
1 050K53962 Tray 2 Assembly (REP 13.1.1)
2 – Label (2) (Not Spared)
3 050K53952 Tray 3 Assembly (REP 13.1.2)
4 – Stop Spring (Not Spared)
5 – Label (TTM) (Not Spared)
6 – Label (3) (Not Spared)
7 – Bracket Stopper (Not Spared)
8 110K11820 Paper Size Switch (REP 13.8.1)
9 059E98210 Roller
10 – Shaft (Not Spared)
11 – Roll Bracket (Not Spared)
12 – Label (Instruction) (Not Spared)
