WorkCentre 7132

PL 12.2

Parts-list

Reversion 4.0

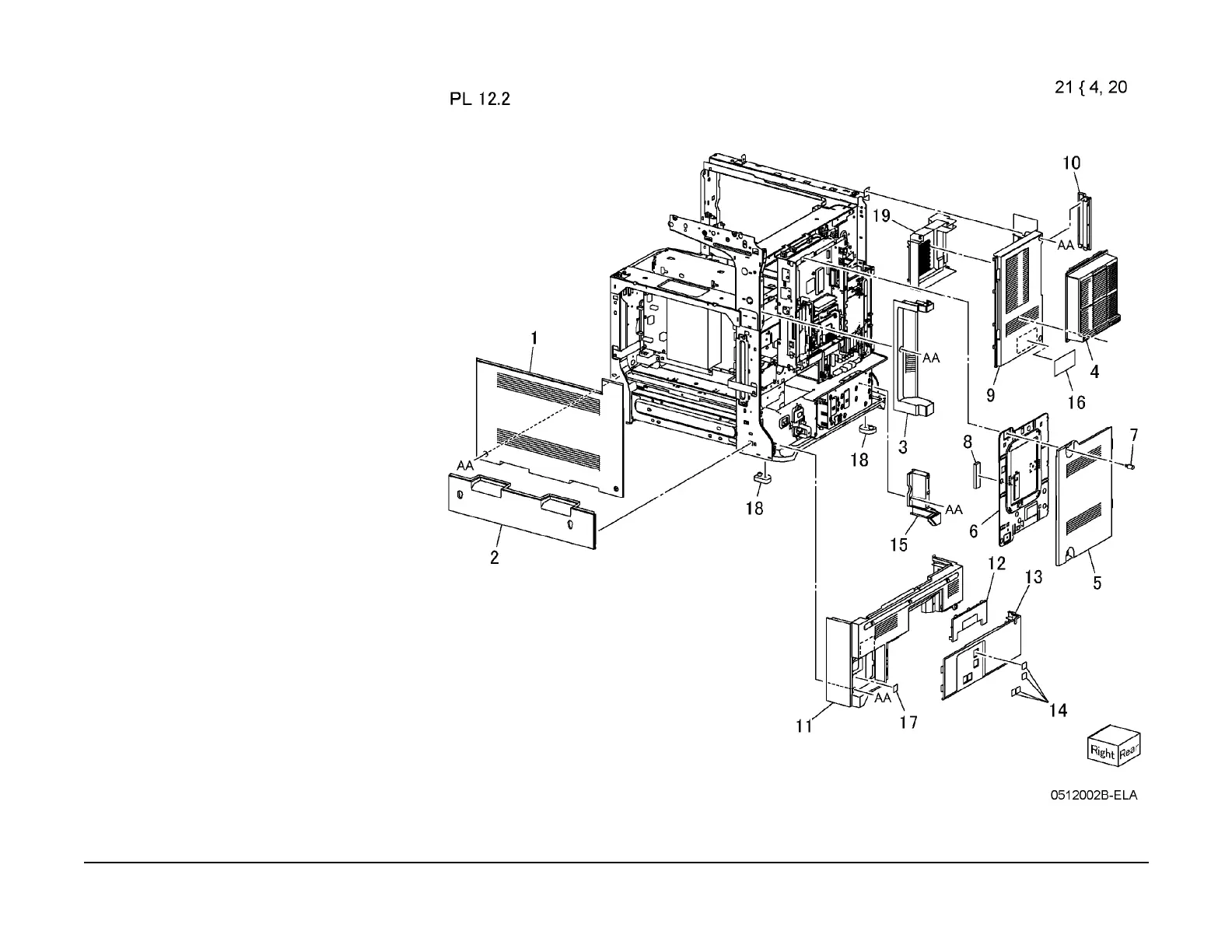

PL 12.2 Cover-Rear, Right

Item Part Description

1 – Right Upper Cover (Not Spared)

(REP 10.2.3)

2 – Right Lower Cover (Not Spared)

3 – ESS Right Cover (Not Spared)

4 008R13025 PR Filter

5 – ESS Cover (P/O PL 12.2 Item 4)

(REP 10.2.1)

6 – ESS Cover (P/O PL 12.2 Item 4)

7 – Screw (P/O PL 12.2 Item 4)

8 – Cushion (P/O PL 12.2 Item 4)

9 – Rear Lefthand Upper Cover (Not

Spared) (REP 10.2.1)

10 802E88700 Filter Cover

11 – Rear Lower Cover (Not Spared)

(REP 10.2.1)

12 – Cap MCU Cover (Not Spared)

(REP 10.2.1)

13 – Fax Cover (Not Spared) (REP

10.2.1)

14 – Blind Fax Cover (Not Spared)

15 – Rear Low Lefthand Cover (Not

Spared)

16 – Data Plate (MN 120/220) (Not

Spared)

17 – Outlet Label (120/220) (Not

Spared)

18 – Rear Foot (Not Spared)

19 – Filter Duct (Not Spared)

20 – Fan Motor (Not Shown)

21 604K33510 Ozone Filter Kit (120V)
