Xerox WorkCentre 7132 Service Documentation

January 2007
5-20
WorkCentre 7132
PL 5.2
Reversion 4.0
Parts-list

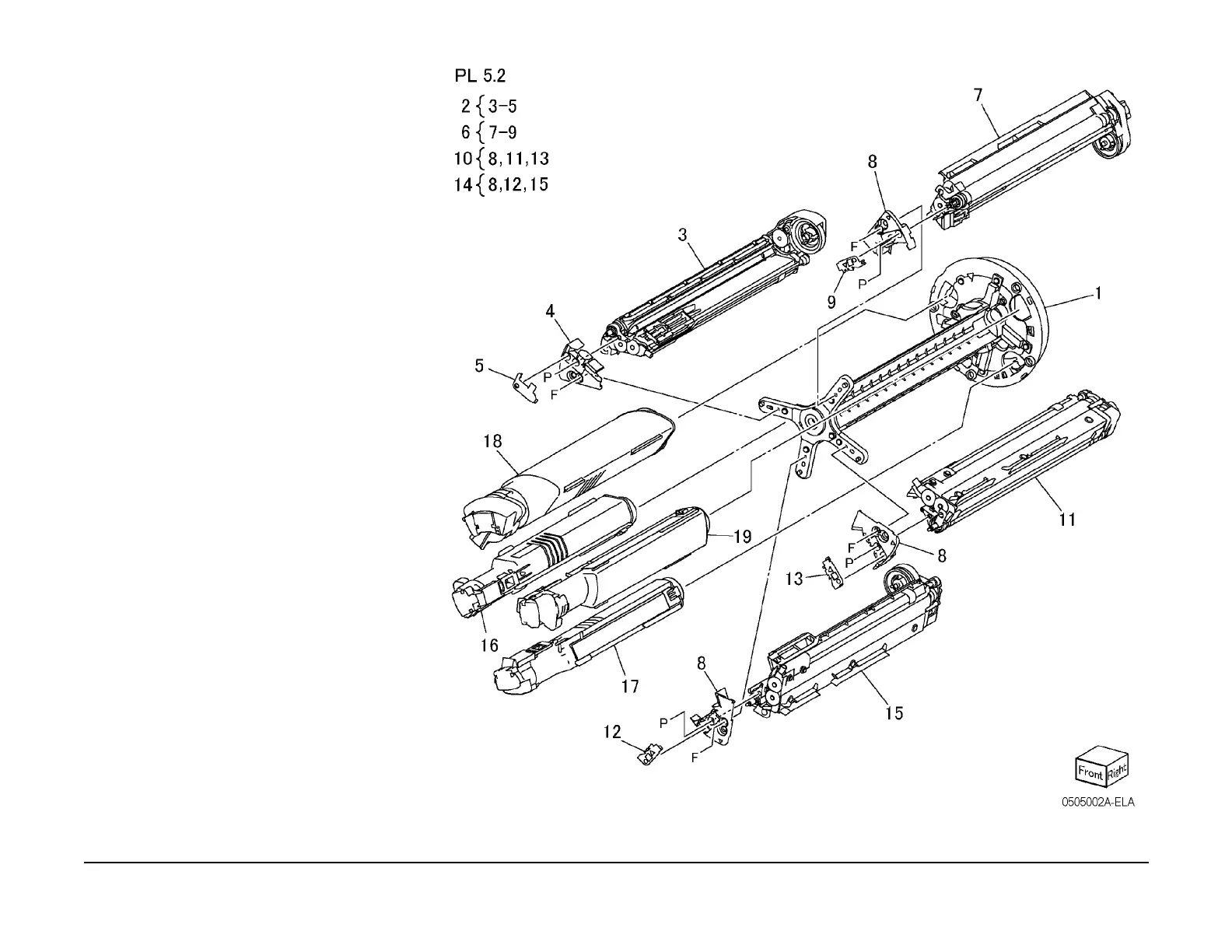

PL 5.2 Developer Housing, Developer
Cartridge
Item Part Description
1 – Rotary Frame (Not Spared)
2 802K83411 Developer K Housing (Developer
not included, must order PL5.1 Item
18) (REP 4.1.1)
3 – Developer Housing K (P/O PL 5.2
Item 2)
4 – Front Cover K (P/O PL 5.2 Item 2)
5 – Out Cover K (P/O PL 5.2 Item 2)
6 802K83550 Cyan Developer Housing Assembly
(Developer not included, must
order PL5.1 Item 18) (REP 4.1.1)
7 – Developer Housing C (P/O PL 5.2
Item 6)
8 – Front Cover (P/O PL 5.2 Item 6, 10,
14)
9 – Cyan Out Cover (P/O PL 5.2 Item
6)
10 802K83530 Magenta Developer Housing
Assembly (Developer not included,
must order PL5.1 Item 18) (REP
4.1.1)
11 – Magenta Developer Housing (P/O
PL 5.2 Item 10)
12 – Yellow Out Cover (P/O PL 5.2 Item
14)
13 – Magenta Out Cover (P/O PL 5.2
Item 10)
14 802K83491 Yellow Developer Housing
Assembly (Developer not included,
must order PL5.1 Item 18) (REP
4.1.1)
15 – Yellow Developer Housing (P/O PL
5.2 Item 14)
16 – Toner Cartridge (Yellow) (Not
Spared) (REP 4.1.2)
17 – Toner Cartridge (Magenta) (Not
Spared) (REP 4.1.2)
18 – Toner Cartridge (Black) (Not
Spared) (REP 4.1.2)
19 – Toner Cartridge (Cyan) (Not
Spared) (REP 4.1.2)
