January 2007
4-13
WorkCentre 7132
REP 2.1.1
Repairs/Adjustments
Reversion 4.0
REP 2.1.1 Tray 1 Feeder
Parts List on PL 2.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Switch off the power and disconnect the power cord.
2. Remove the MSI Assembly. (REP 7.1.1)
3. Remove the L/H Upper Cover Unit. (REP 2.6.2)
4. Pull out Tray 1.
5. Open the left side Tray 1 Vertical Transport door.

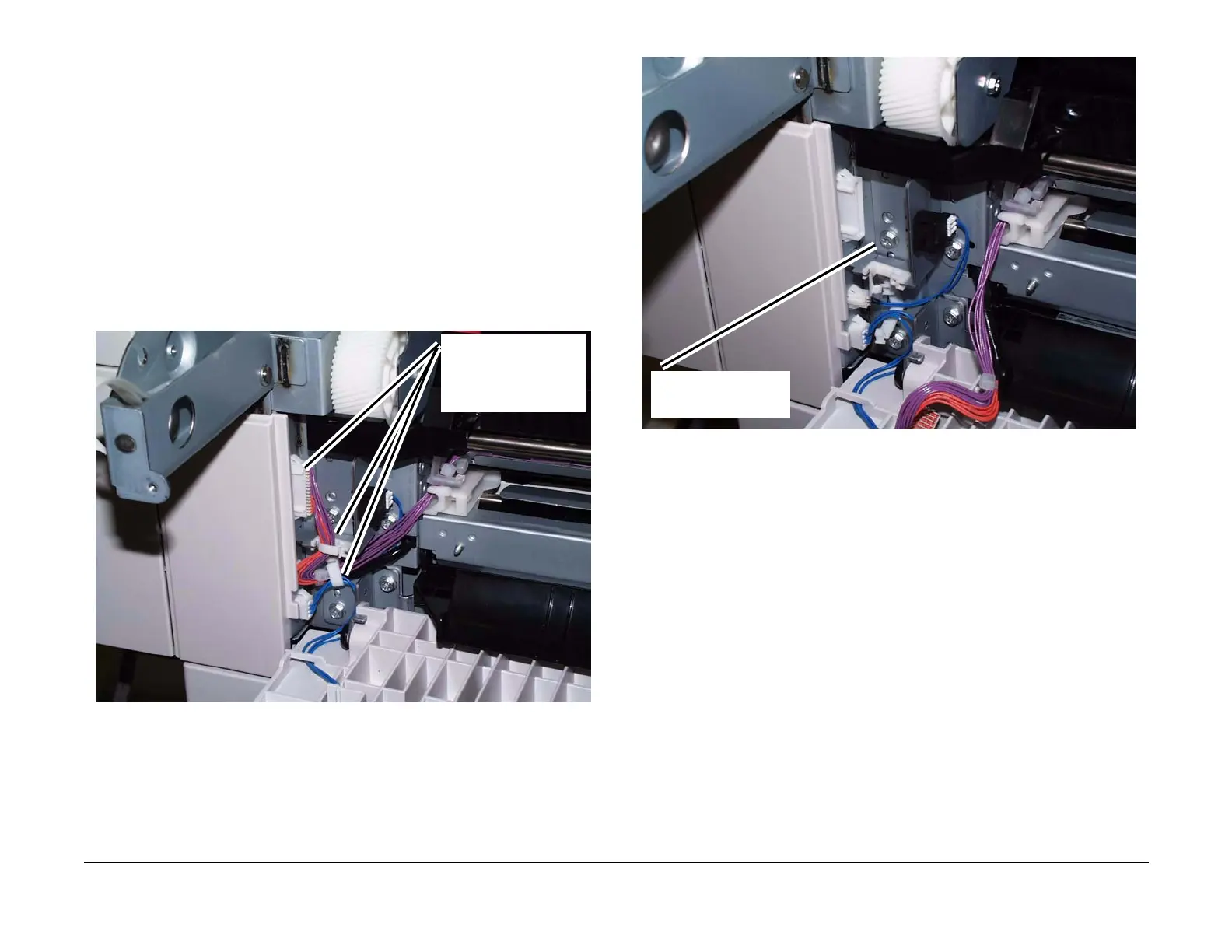

6. Disconnect the connector (1) and remove the wires from the wire clamps (2). (Figure 1)
Figure 1 Disconnecting the connector
7. Remove the screw from the sensor bracket and move the sensor bracket aside. (Figure
2)
Figure 2 Moving the Sensor Bracket
8. Preparing to remove the Tray 1 Feeder.
a. Remove the screws (2). (Figure 3)
Disconnect the connector
(1) and remove the wires
from the wire clamps (2)
Remove the screw (1)
and set the bracket to
one side
To Next Page
