January 2007
5-44
WorkCentre 7132
PL 13.5
Reversion 4.0
Parts-list

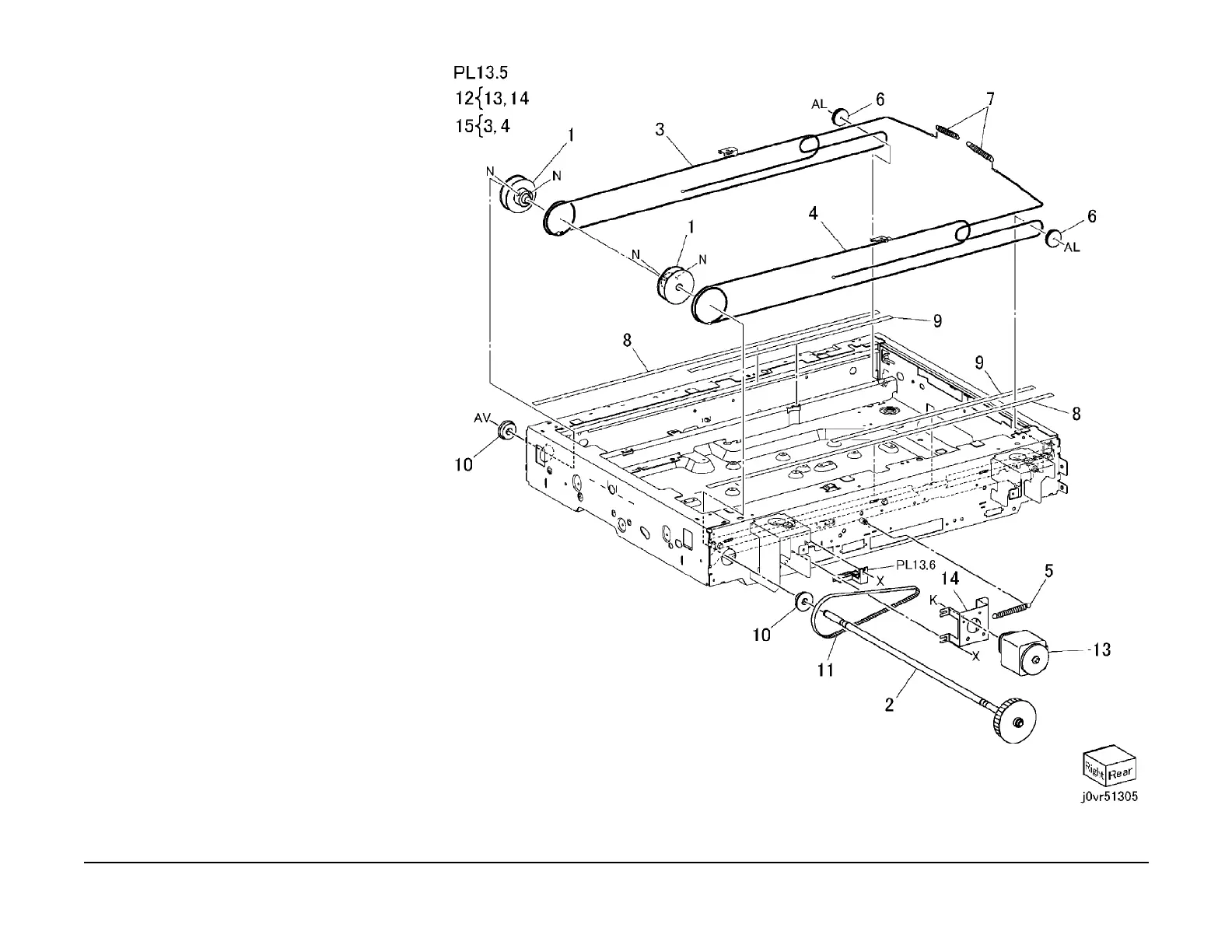

PL 13.5 Carriage Cable/Motor
Item Part Description
1 – Capstan Pulley (P/O PL 13.1 Item
12)
2 – Drive Shaft (P/O PL 13.1 Item 12)
3 – Front Carriage Cable (P/O PL 13.5
Item 15)
4 – Rear Carriage Cable (P/O PL 13.5
Item 15) (REP 11.5.1)
5 – Extension Spring (P/O PL 13.1 Item
12) (REP 11.5.1)
6 020E37030 Pulley
7 604K20440 Spring Kit
8 – Tape (P/O PL 13.1 Item 12)
9 – Tape (P/O PL 13.1 Item 12)
10 – Bearing (P/O PL 13.1 Item 12)
11 023E26430 Belt
12 127K49532 IIT Motor Assembly (120V)
– 127K49530 IIT Motor Assembly (220V)
13 – Carriage Motor (P/O PL 13.5 Item
12) (REP 11.5.2)
14 – Motor Bracket (P/O PL 13.5 Item
12)
15 604K20510 IIT Cable Kit
