Xerox WorkCentre 7132 Service Documentation

January 2007
5-40
WorkCentre 7132
PL 13.1
Reversion 4.0
Parts-list

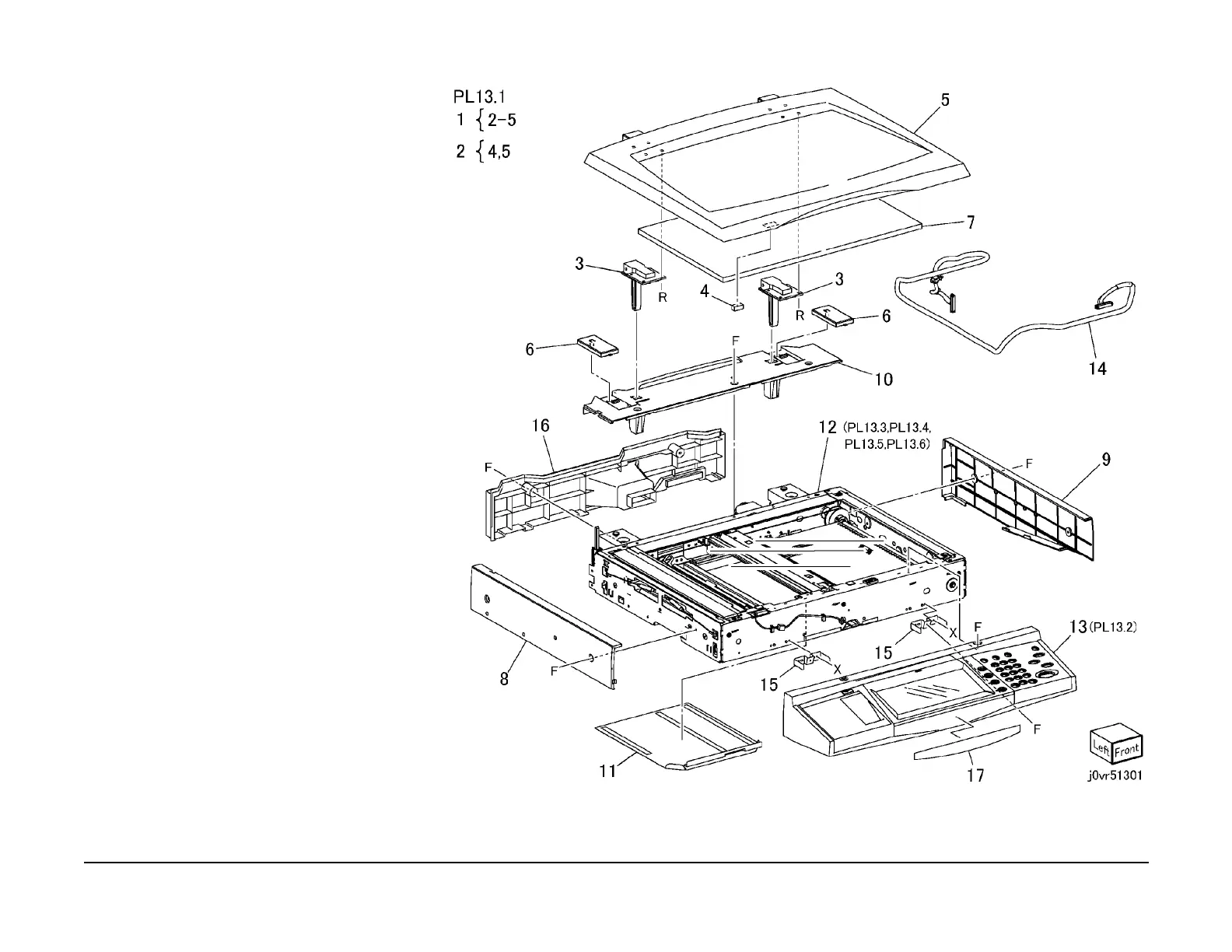

PL 13.1 Platen Cover/IIT Assembly
Item Part Description
1 802K55690 AF Platen Cover Assembly
2 802K59201 A Platen Cover
3 – Counter Balance (P/O PL 13.1 Item
1)
4 – Interlock Magnet (P/O PL 13.1 Item
1)
5 – Platen A Cover (P/O PL 13.1 Item
1)
6 – Hinge Cover (Not Spared)
7 004E13450 Platen Cushion (REP 11.1.1)
8 – IIT Left Cover (Not Spared)
9 – IIT Right Cover (Not Spared)
10 – Top Rear Cover (Not Spared)
11 – Exit Guide (Not Spared)
12 062K16326 Main IIT Assembly
13 802K84040 Console Assembly (REP 11.1.2)
14 – HB Cable (Not Spared)
15 – UI Bracket (Not Spared)
16 – IIT Rear Cover (Not Spared)
17 – Name Label (Not Spared)
