January 2007
4-37
WorkCentre 7132
REP 4.2.5
Repairs/Adjustments
Reversion 4.0
REP 4.2.5 IBT Belt
Parts List on PL 6.2
Removal
1. Switch off the power and disconnect the Power Cord.
2. Remove the IBT Module. (REP 4.2.2)
3. Place the IBT Module on a flat work surface.
4. Remove the IBT Cleaner from the IBT Module. (REP 4.2.4)
5. Remove the outboard frame (Figure 1)

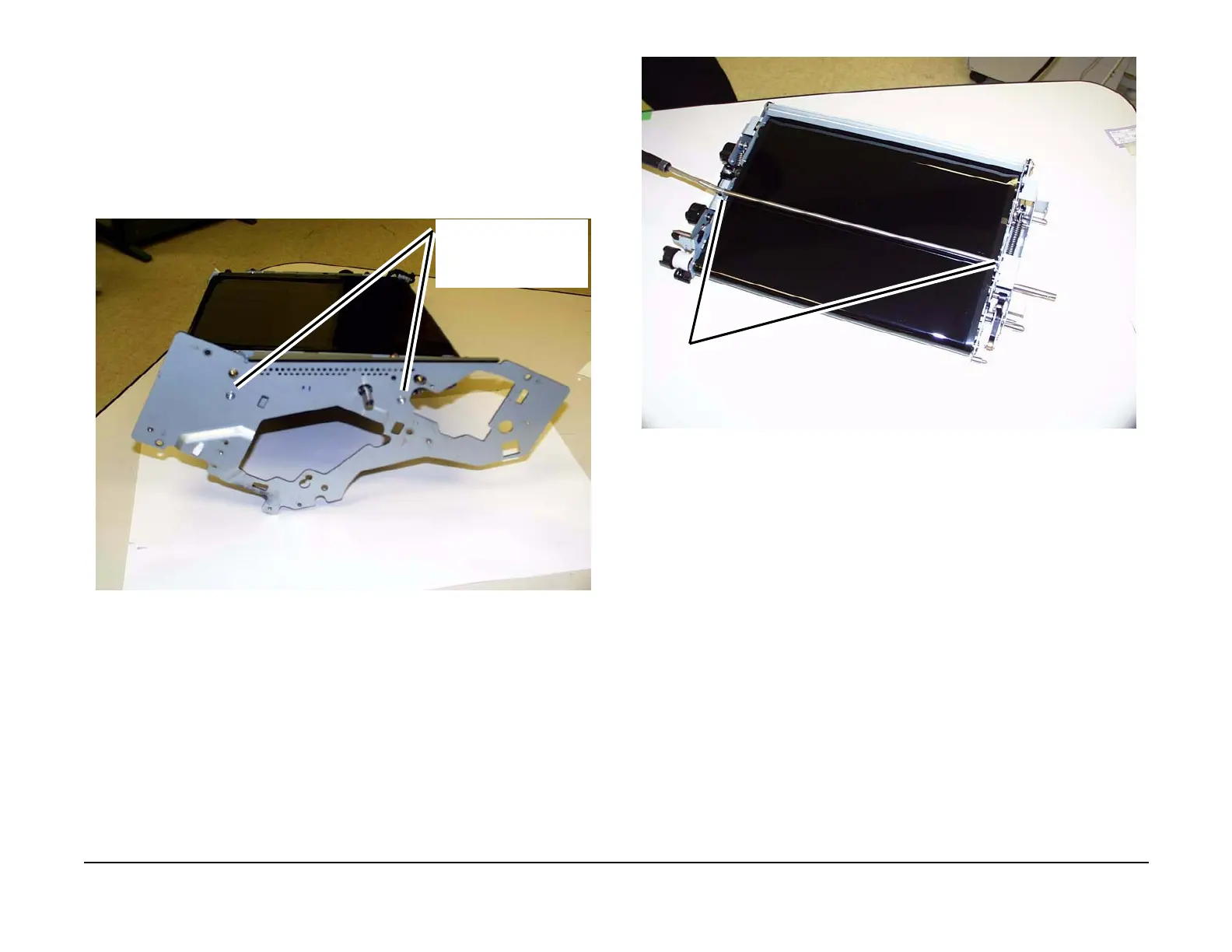

Figure 1 Removing the outboard frame
6. Remove the cross bar from the IBT Module. (Figure 2)
Figure 2 Removing the cross bar
NOTE: Note the orientation of the frame cross brace. Be sure to reinstall the frame cross brace
in the same manner which it was removed.
7. Remove the cross brace. (Figure 3)
1
Remove the screws (2)
and remove the frame
Remove the screws (2)
and remove the cross bar
