REP 16.10.1
Reversion 4.0
Repairs/Adjustments

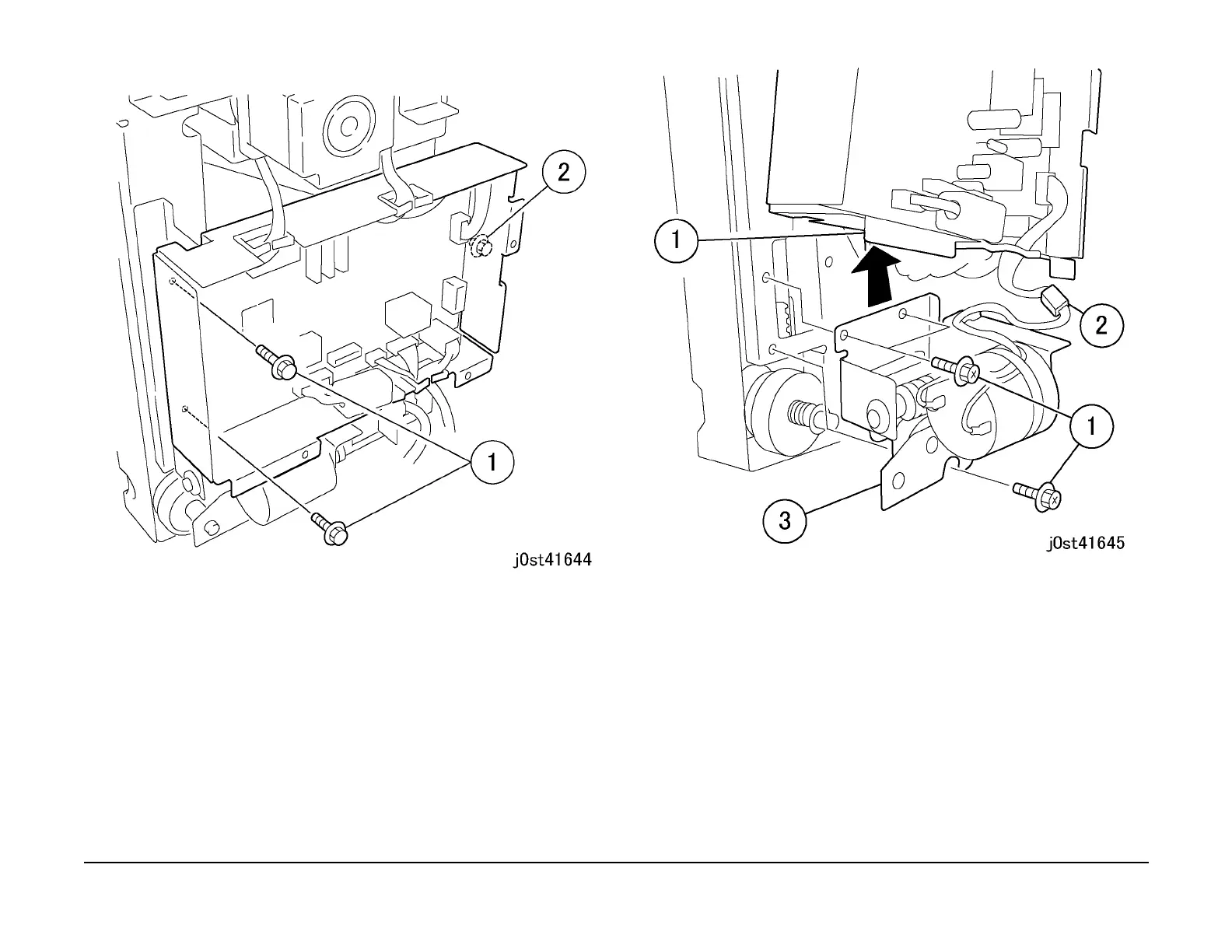

Figure 3 Removing the screws
5. Remove the Stacker Motor Assembly. (Figure 4)
1. Remove the screws (x3) while sliding the PWB Bracket upwards.
2. Slide the gear.
3. Remove the Stacker Motor Assembly.
Figure 4 Removing the Staple Motor Assembly
