Xerox WorkCentre 7132

January 2007
4-19
WorkCentre 7132
REP 2.5.1
Repairs/Adjustments
Reversion 4.0

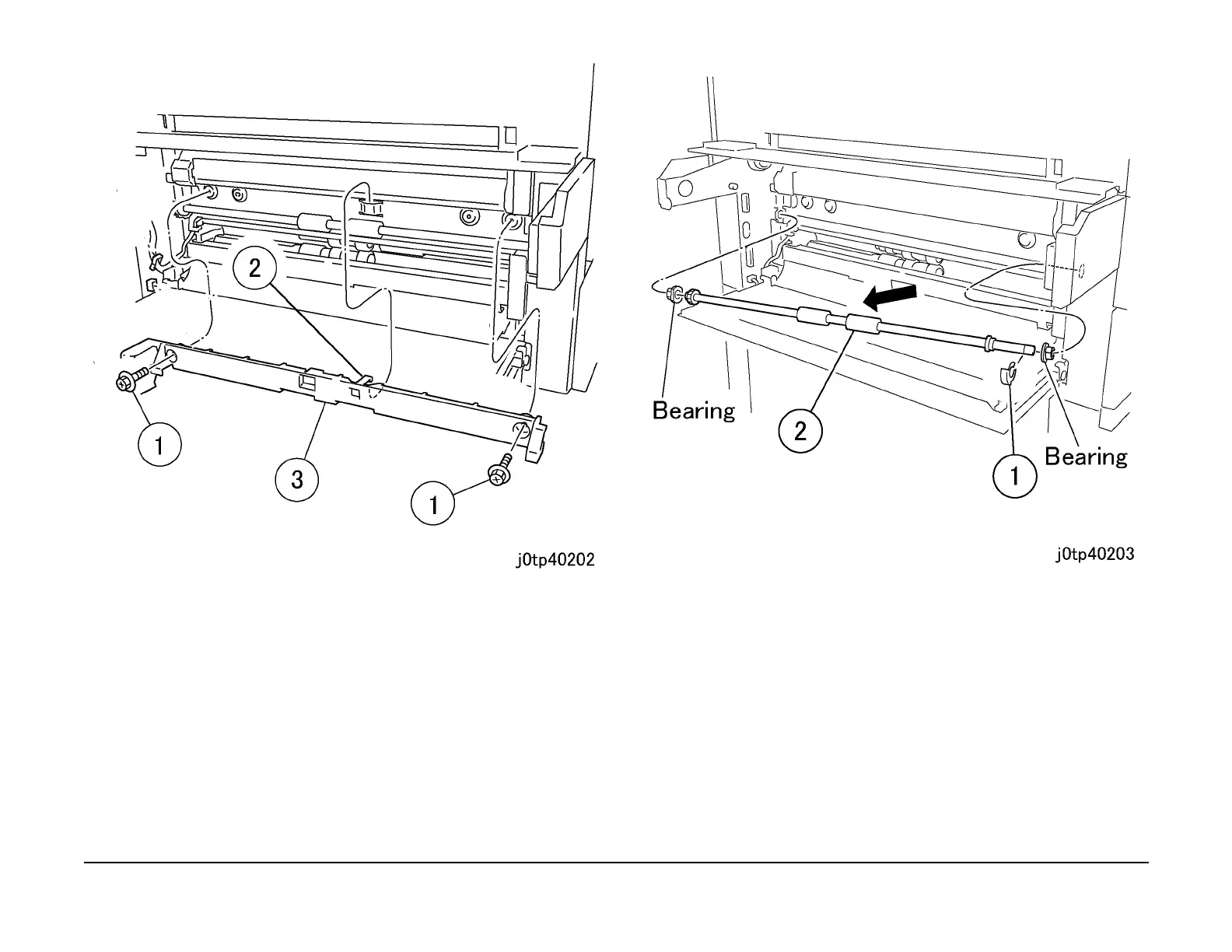

Figure 1 Removing the chute
4. Remove the Takeaway Roll. (Figure 2)
NOTE: Use care not to drop bearings or gear.
1. Remove the E-Clip
2. Slide out the Takeaway Roll
Figure 2 Removing the Takeaway Roll
