Xerox WorkCentre 7132

January 2007
4-16
WorkCentre 7132
REP 2.3.1
Reversion 4.0
Repairs/Adjustments

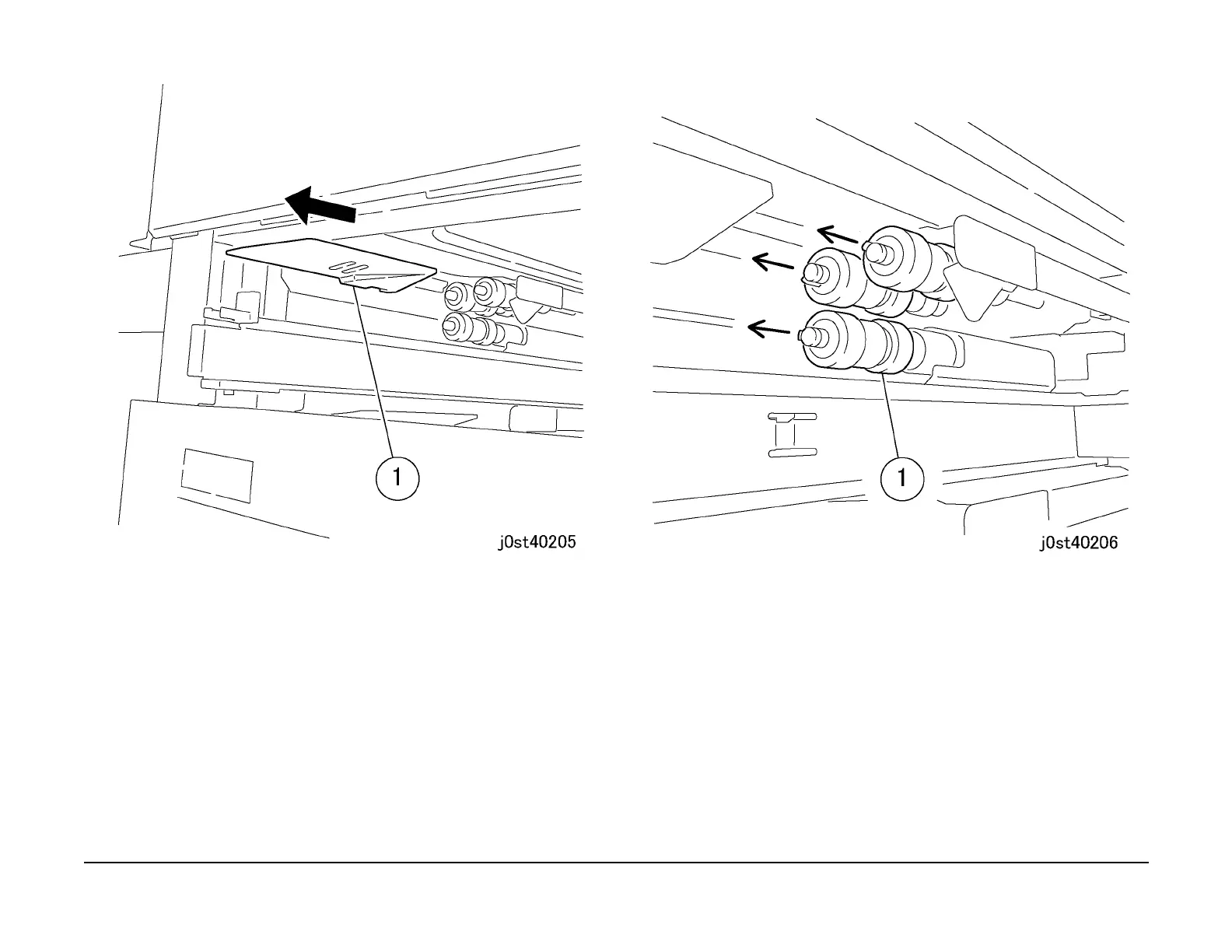

Figure 1 Sliding the guide to the front
3. Remove the Feed/Nudger/Retard Roll. (Figure 2)
1. Rotate the Feed/Nudge/Retard Roll clockwise to access the locking tab. Release the
lock and remove the Feed/Nudger/Retard Roll.
Figure 2 Removing the Feed/Nudger/Retard Roll
