WorkCentre 7132
REP 16.5.2
Repairs/Adjustments
Reversion 4.0

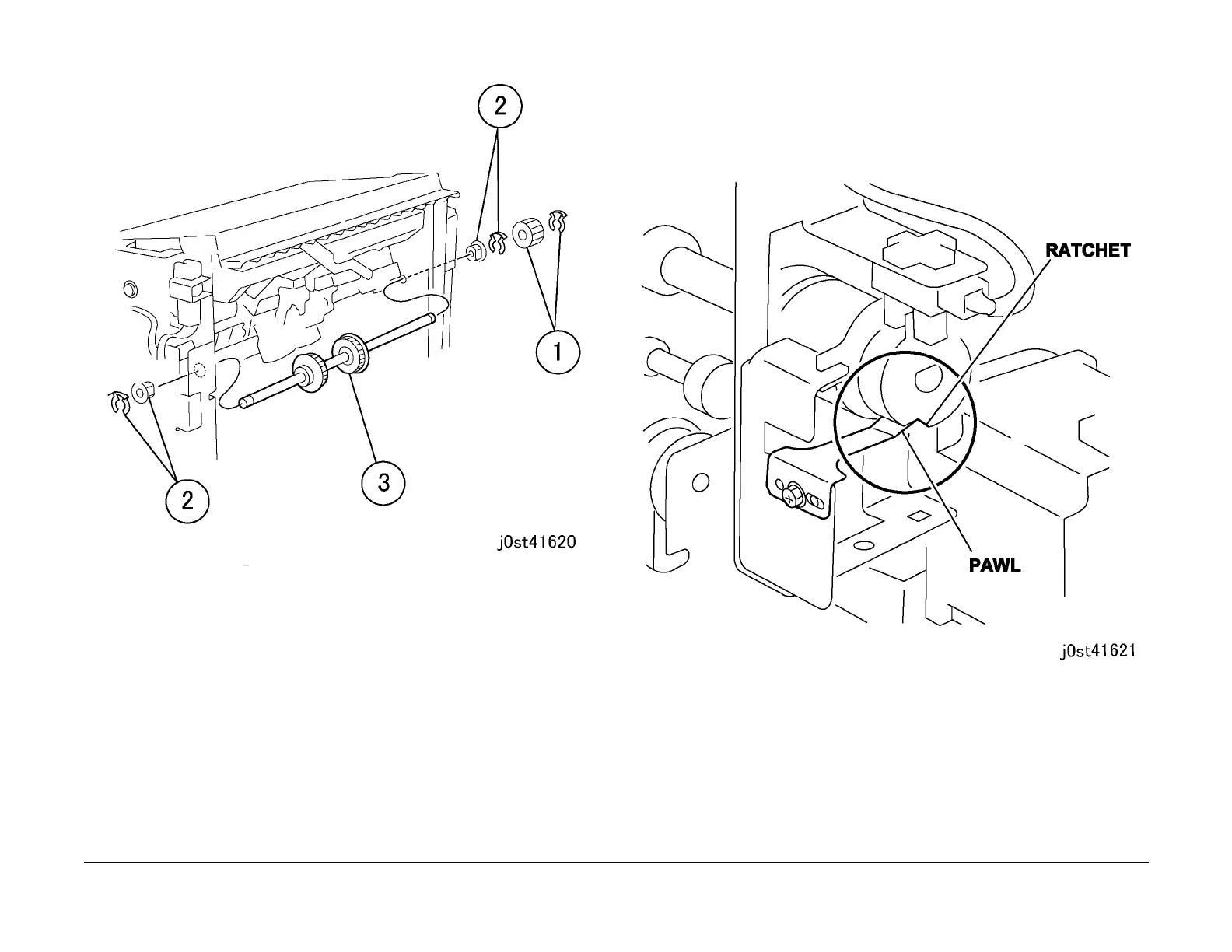

Figure 9 Removing the Eject Shaft
Replacement
NOTE: Replace the Exit Roll and Eject Roll at the same time.
NOTE: When installing the Actuator, ensure that the stopper is inserted into the ditch of the
Actuator as illustrated below. (Figure 10)
Figure 10 Installing the Actuator
