WorkCentre 7132
REP 15.8.1
Reversion 4.0
Repairs/Adjustments

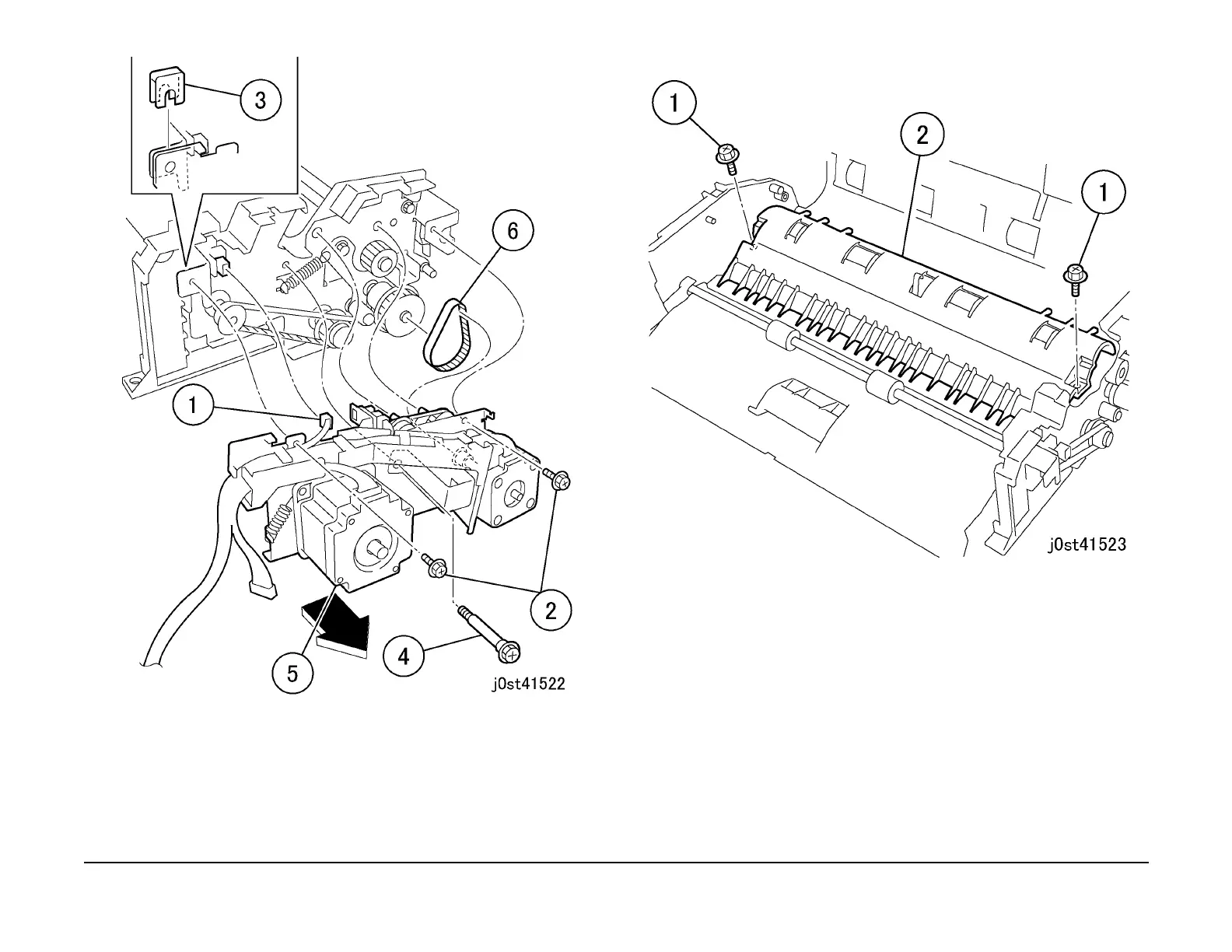

Figure 2 Moving the motor unit
8. Open the chute.
9. Remove the Feed Guide. (Figure 3)
1. Remove the screws (2).
2. Remove the Feed Guide.
Figure 3 Removing the Feed Guide
10. Remove the sensor holder. (Figure 4)
1. Remove the Tapping Screws (2).
2. Remove the sensor holder.
