Xerox WorkCentre 7132

January 2007
4-152
WorkCentre 7132
REP 16.1.2
Reversion 4.0
Repairs/Adjustments

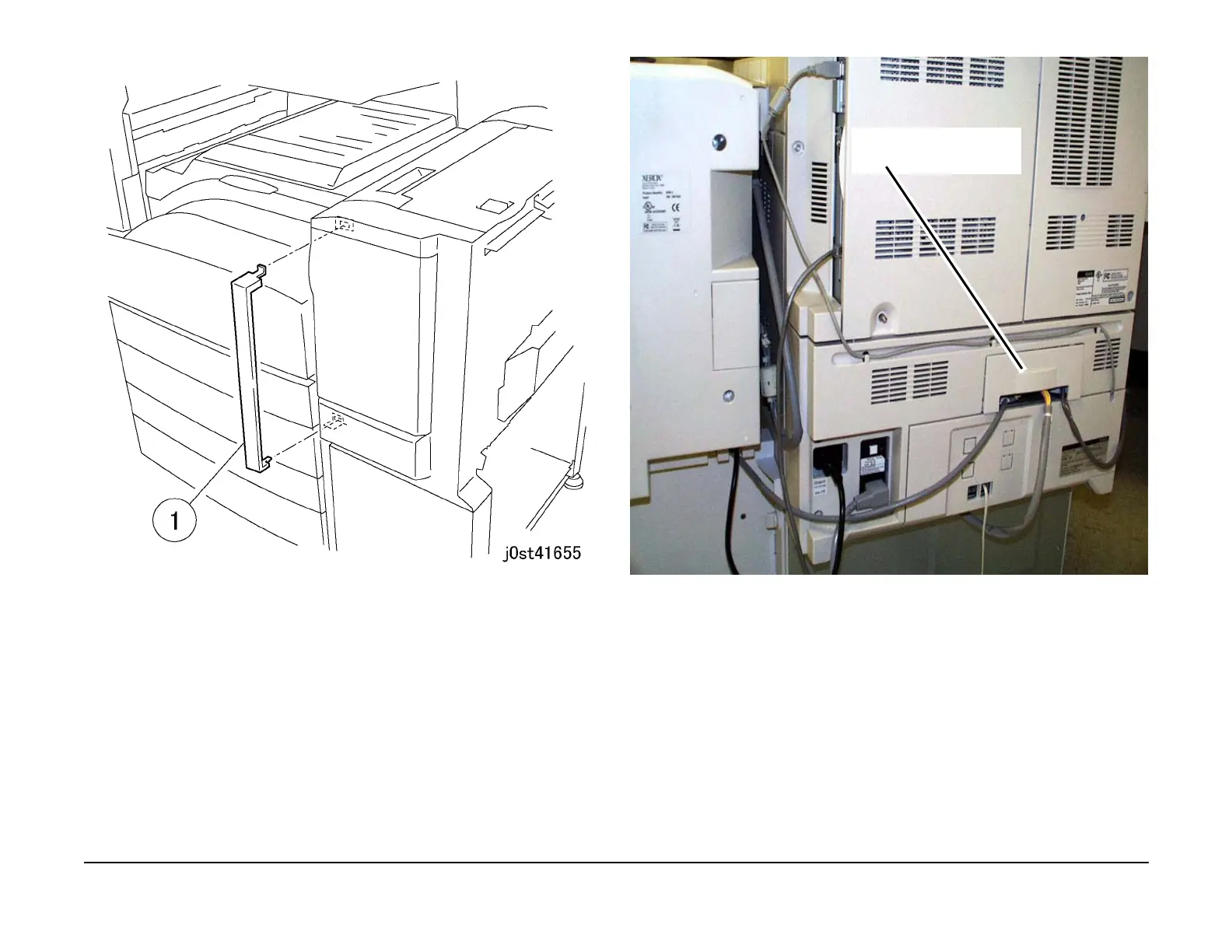

Figure 2 Removing the cover
3. Remove the cover. (Figure 3)
1. Remove the cover.
Figure 3 Removing the cover
4. Remove the Left Panel. (Figure 4)
1. Remove the Left Panel.
1
Remove the Cover
