Xerox WorkCentre 7132 Service Documentation

January 2007
4-153
WorkCentre 7132
REP 16.1.2
Repairs/Adjustments
Reversion 4.0

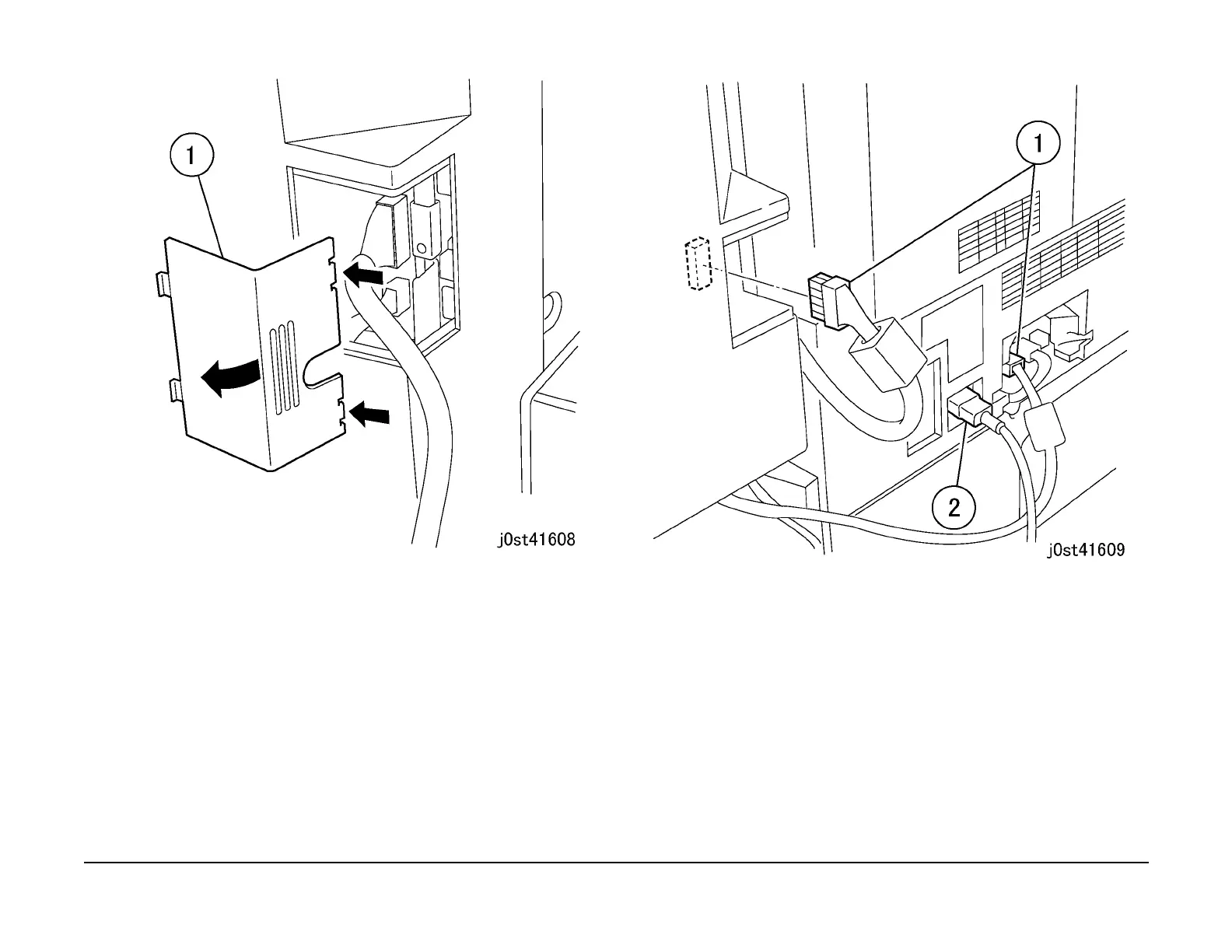

Figure 4 Removing the Left Panel
5. Disconnect the cables and connectors. (Figure 5)
1. Disconnect the connectors (x2).
2. Disconnect the cable.
Figure 5 Disconnecting the cables and connectors
6. Remove the Knob Screws. (Figure 6)
1. Remove the Knob Screws (x2).
