Xerox WorkCentre 7132

January 2007
4-154
WorkCentre 7132
REP 16.1.2
Reversion 4.0
Repairs/Adjustments

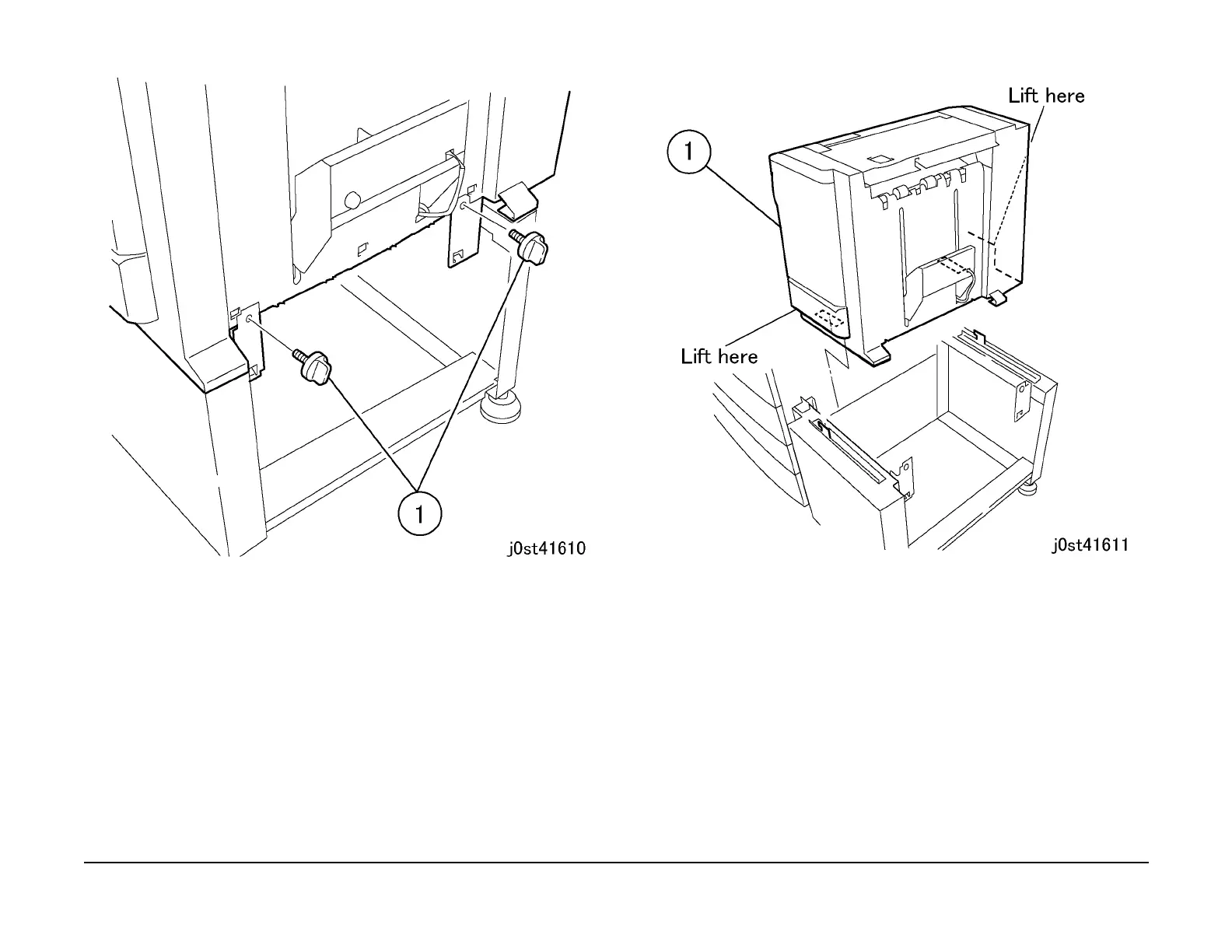

Figure 6 Removing the Knob Screws
7. Move the Finisher Assembly to the left and lower it down from the rack. (Figure 7)
1. Remove the Finisher Assembly.
Figure 7 Removing the Finisher Assembly
