Xerox WorkCentre 7132 Service Documentation

January 2007
4-31
WorkCentre 7132
REP 4.2.2
Repairs/Adjustments
Reversion 4.0

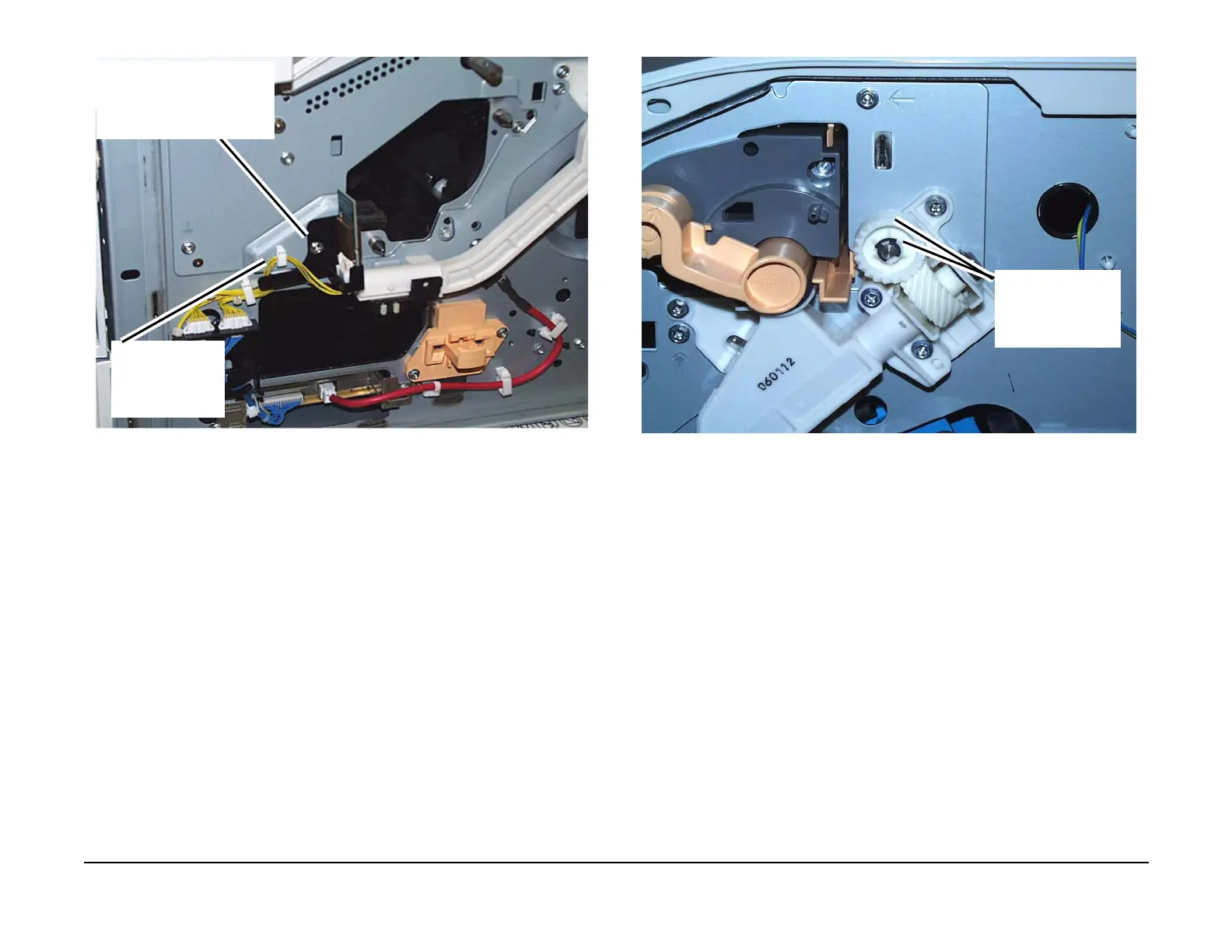

Figure 2 Removing the CRUM Bracket
7. Remove the Waste Auger drive gear. (Figure 3)
Figure 3 Removing the Waste Auger C-clip and drive gear
8. Remove the Waste Auger drive shaft bushing. (Figure 4)
1
Remove the har-
ness from the cable
clamp
2
Remove the screw
(1) and remove the
CRUM bracket
1
Remove the C-clip
and gear
