Xerox WorkCentre 7132

January 2007
4-136
WorkCentre 7132
REP 15.4.1
Reversion 4.0
Repairs/Adjustments

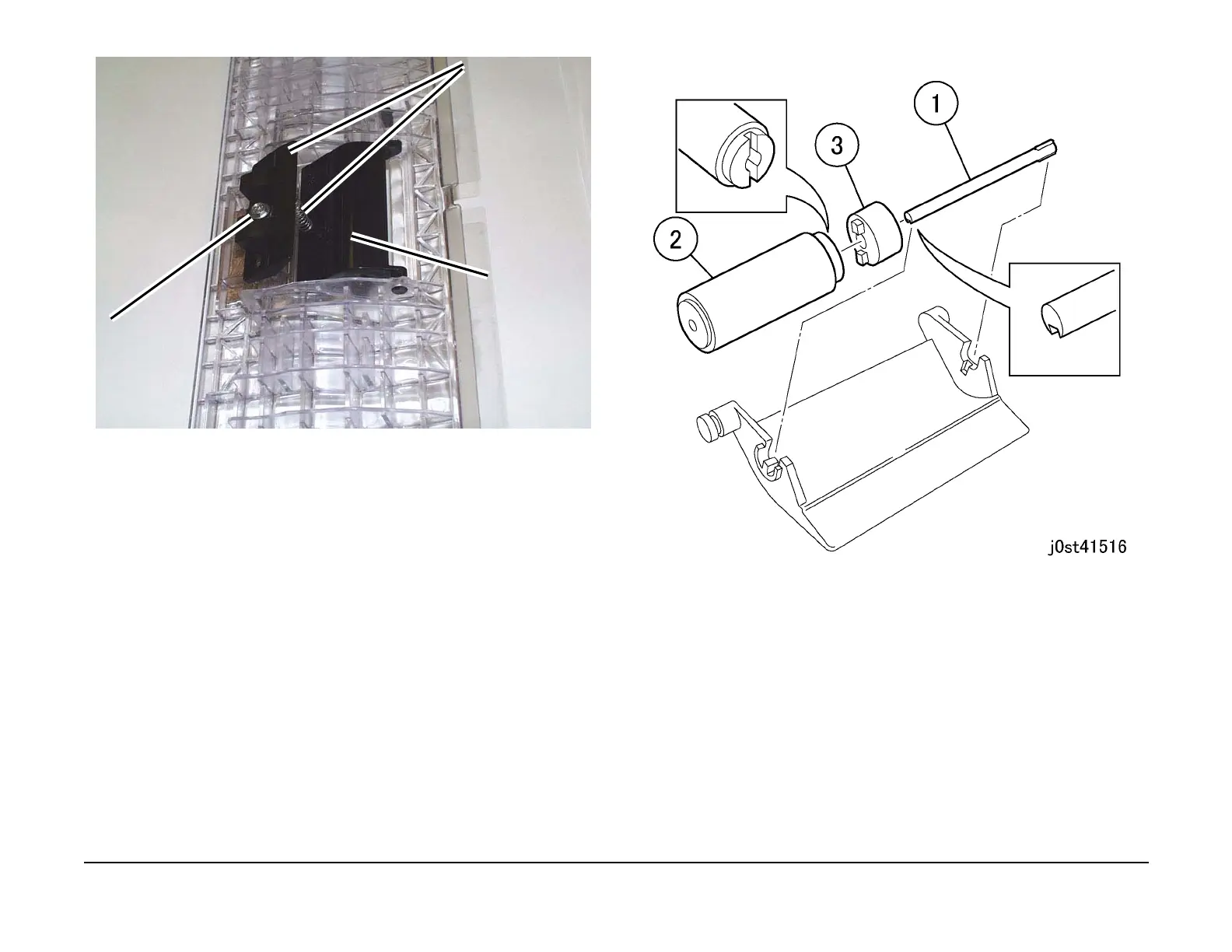

Figure 2 Removing the Retard Roll Bracket and spring
4. Remove the Retard Roll. (Figure 3)
1. Remove the shaft.
2. Remove the Retard Roll.
3. Remove the Torque Limiter.
Figure 3 Removing the Retard Roll
Replacement
Check the software version and upgrade the software level as needed.
1
Remove the
screw (1)
2
Remove the Retard
Roll Bracket and
spring
3
Raise the Retard
Roll Holder
