January 2007
4-144
WorkCentre 7132
REP 15.6.1
Reversion 4.0
Repairs/Adjustments

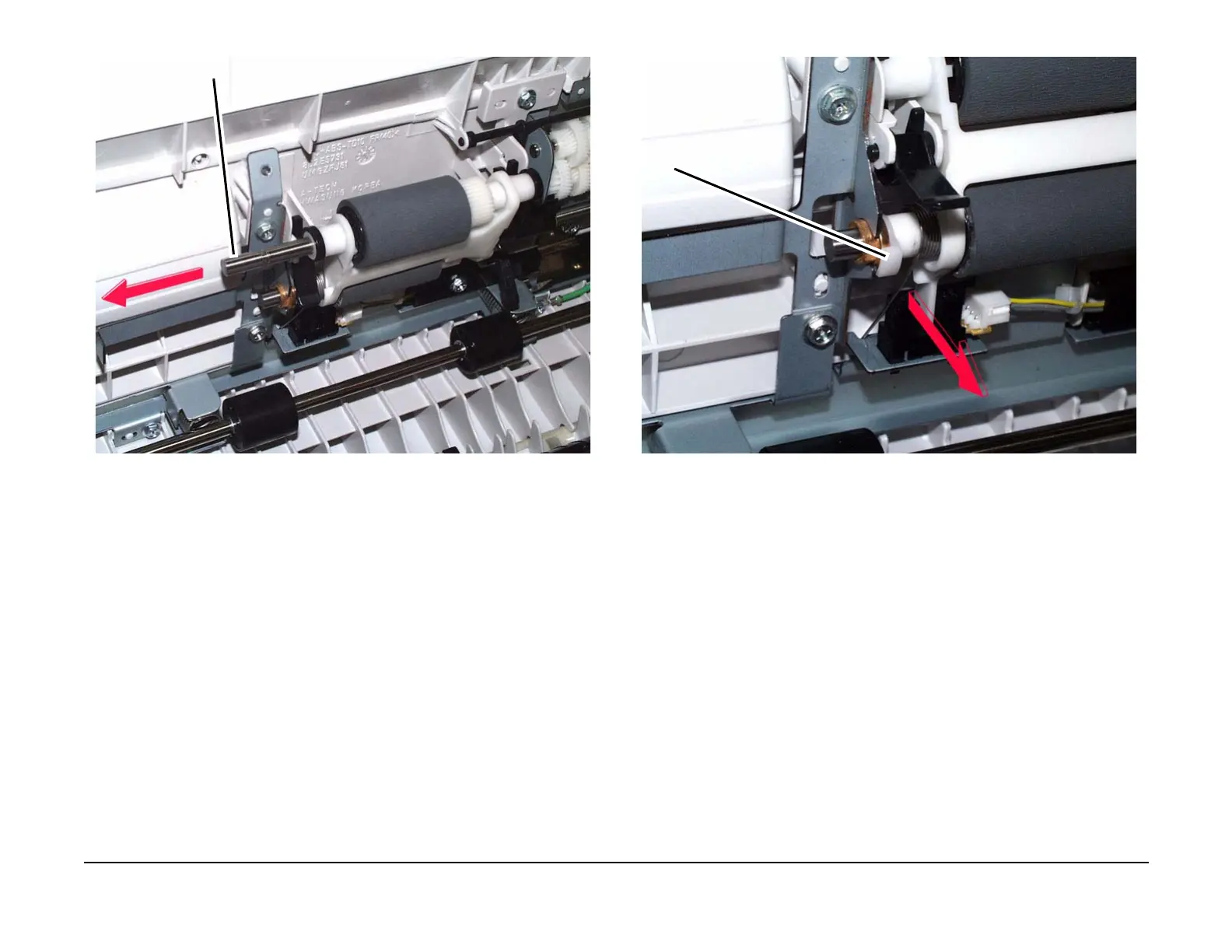

Figure 4 Removing the Nudger Roll shaft and the Nudger Roll
6. Retract the Nudger Roll by rotating the Torque Limiter inboard gear.
7. To remove the Feed Roll, remove the locking tab. (Figure 5)
Figure 5 Removing the Feed Roll Locking Tab
8. Remove the Feed Roll Shaft and remove the Feed Roll. (Figure 6)
Nudger Roll Shaft
Feed Roll Locking
Tab
To Next Page
