Xerox WorkCentre 7132 Service Documentation

January 2007
4-145
WorkCentre 7132
REP 15.6.1
Repairs/Adjustments
Reversion 4.0

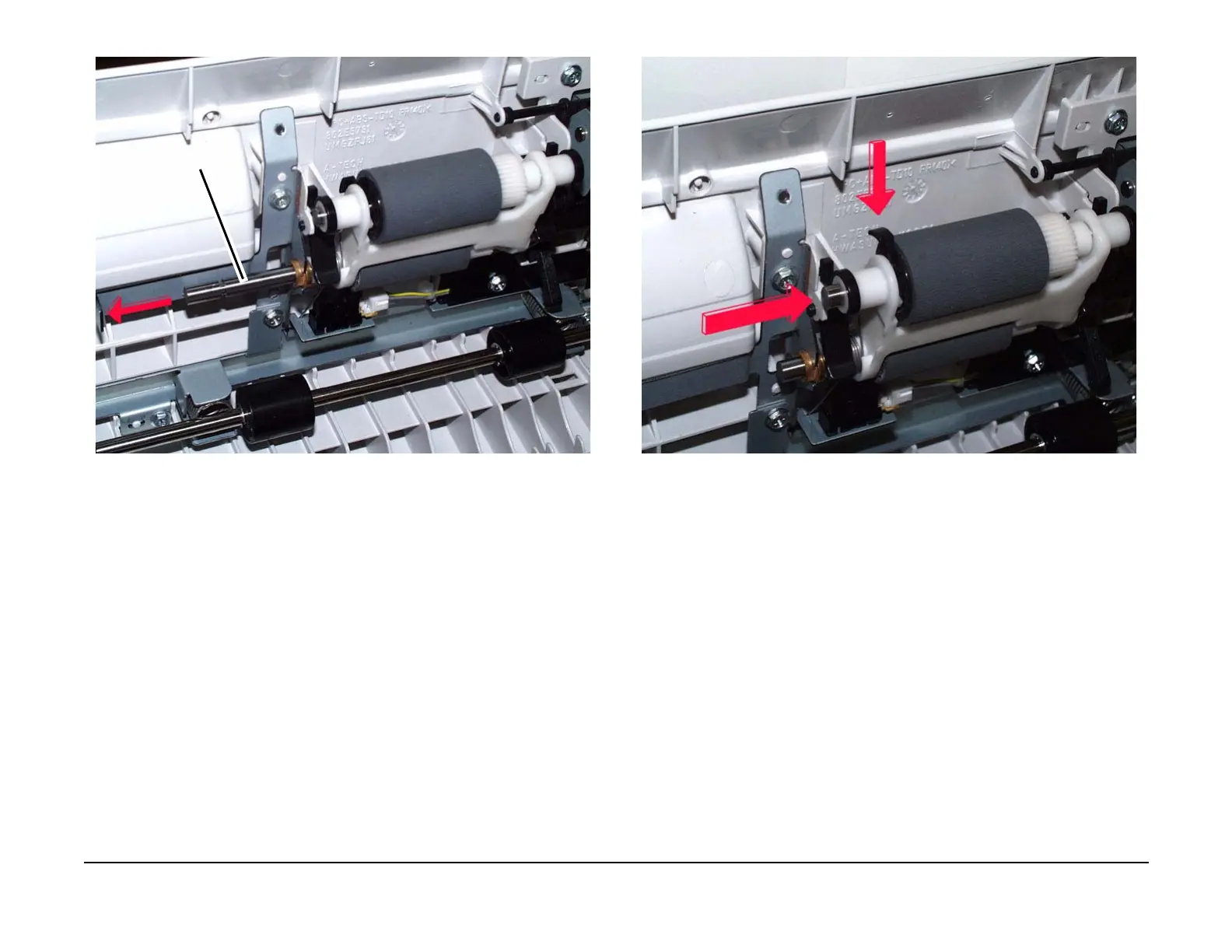

Figure 6 Removing the Feed Roll shaft and the Feed Roll
Replacement
1. Extend the Nudger Roll by rotating the Torque Limiter inboard gear.
2. Install the Nudger Roll and Nudger Roll shaft. The shaft is spring loaded so push in the
shaft and hold it and install the locking clip. (Figure 7)
Figure 7 Installing the Nudger Roll, Nudger Roll shaft and locking clip
3. Retract the Nudger Roll by rotating the Torque Limiter inboard gear.
4. Install the Feed Roll and Feed Roll shaft. The shaft is spring loaded so push in the shaft
and hold it and install the locking clip. (Figure 8)
Feed Roll Shaft
