January 2007
4-95
WorkCentre 7132
REP 11.5.2
Repairs/Adjustments
Reversion 4.0

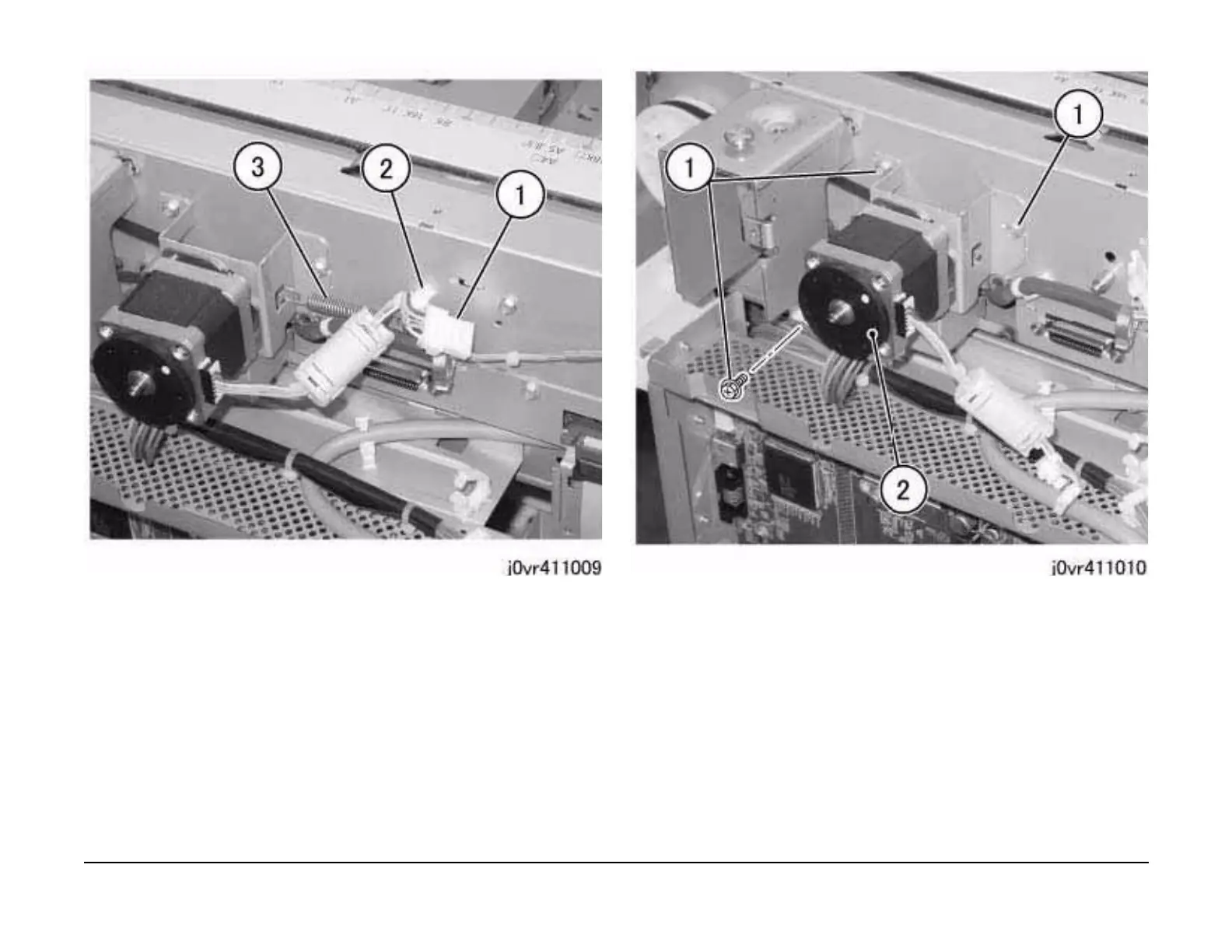

Figure 7 Disconnecting the connector
4. Remove the Carriage Motor Assembly. (Figure 8)
a. 1. Remove the screws (x3).
b. 2. Remove the Carriage Motor Assembly.
Figure 8 Removing the Carriage Motor Assembly
Replacement
1. To install, carry out the removal steps in reverse order.
