Xerox WorkCentre 7132 Service Documentation

January 2007
4-94
WorkCentre 7132
REP 11.5.2
Reversion 4.0
Repairs/Adjustments

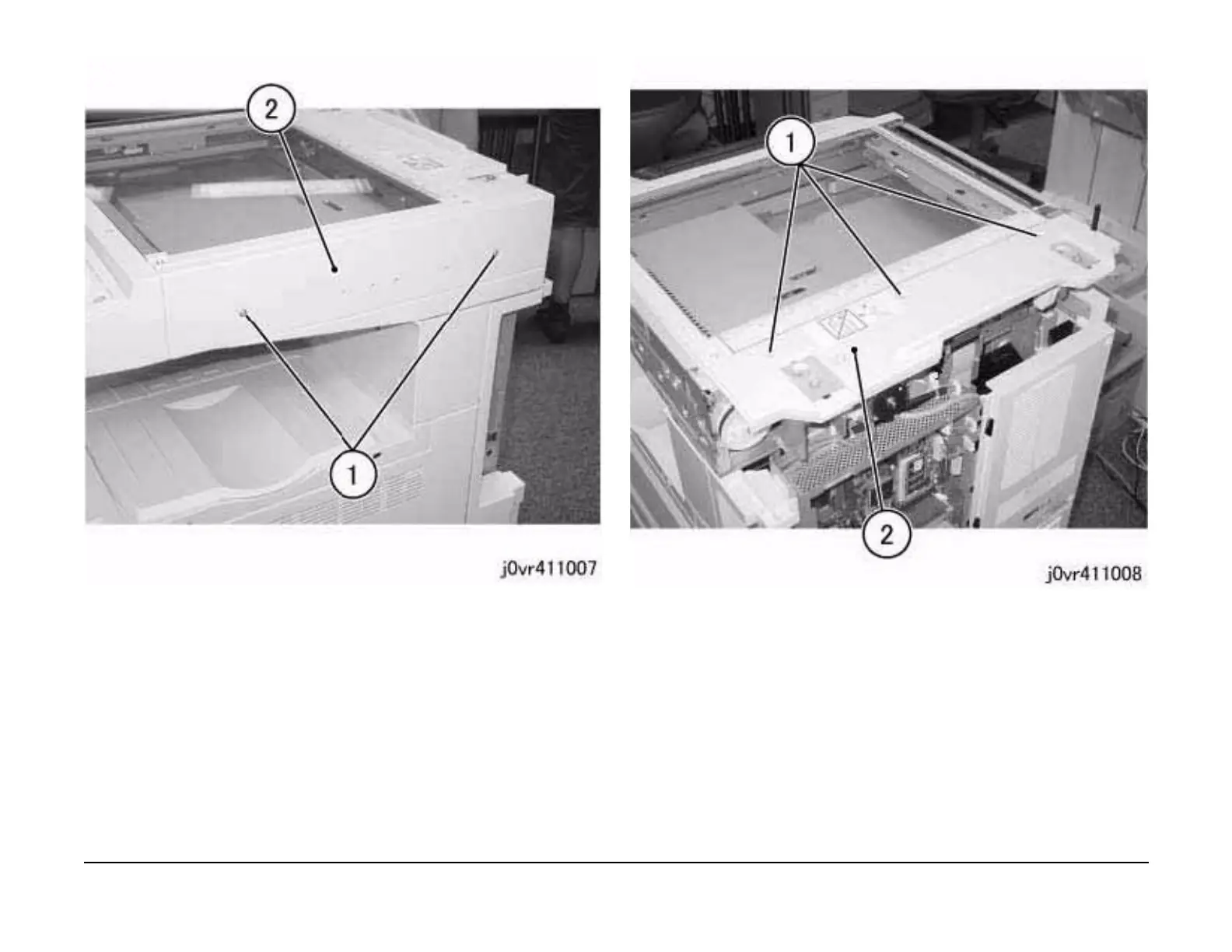

Figure 5 Removing the IIT Right Cover
3. Remove the IIT Rear Cover. (Figure 6)
1. Remove the screws (3).
2. Remove the IIT Rear Cover.
Figure 6 Removing the IIT Rear Cover
3. Disconnect the connector. (Figure 7)
1. Disconnect the connector.
2. Remove the clamp.
3. Remove the spring.
