Xerox WorkCentre 7132 Service Documentation

January 2007
4-93
WorkCentre 7132
REP 11.5.2
Repairs/Adjustments
Reversion 4.0

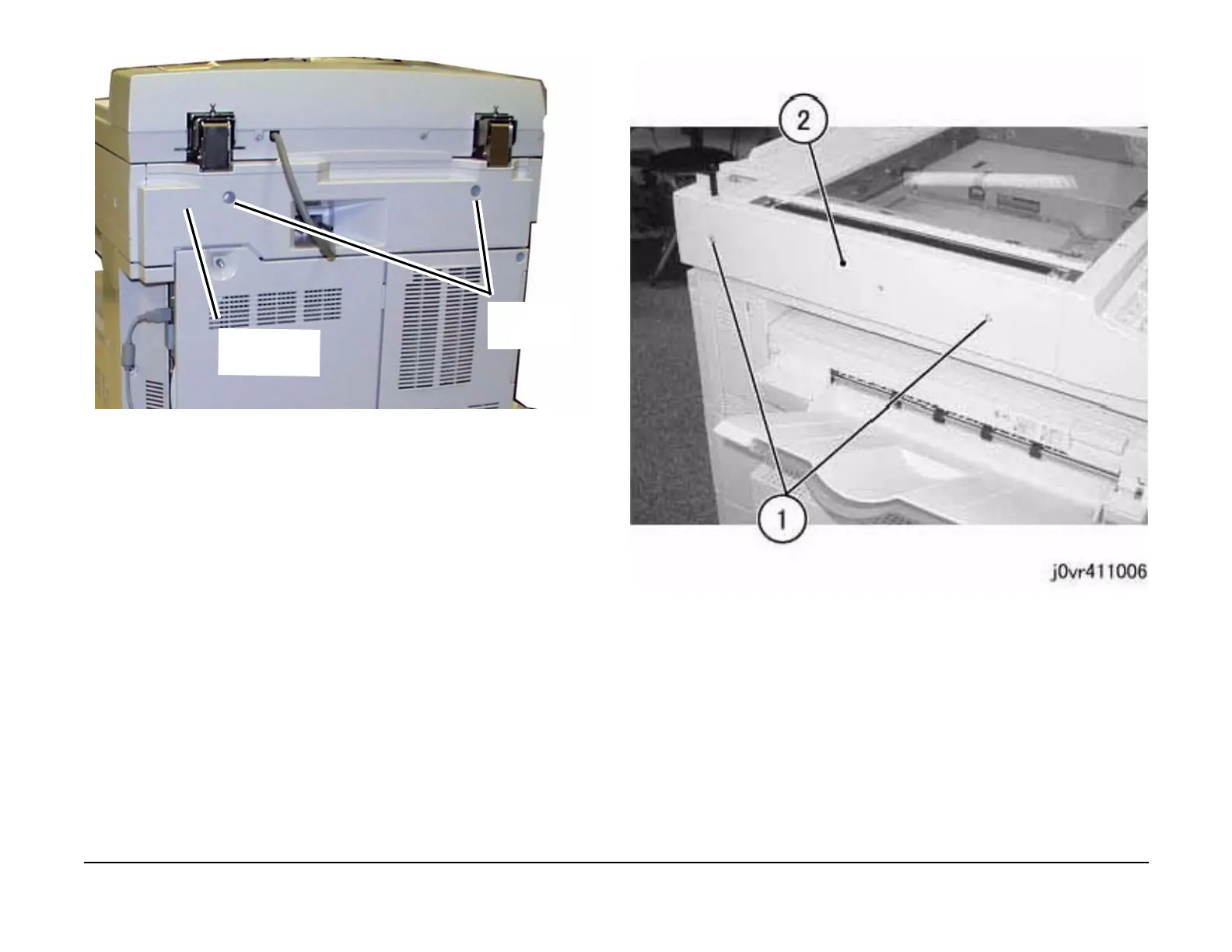

Figure 3 Removing the Rear Upper Cover
4. Remove the IIT Left Cover. (Figure 4)
1. Remove the screws (2).
2. Remove the IIT Left Cover.
Figure 4 Removing the IIT Left Cover
3. Remove the IIT Rear Cover. (Figure 5)
1. Remove the screws (2).
2. Remove the IIT Right Cover.
2
Remove the
cover
1
Remove the
screws (2)
