Xerox WorkCentre 7132 Service Documentation

January 2007
4-73
WorkCentre 7132
REP 10.2.1
Repairs/Adjustments
Reversion 4.0

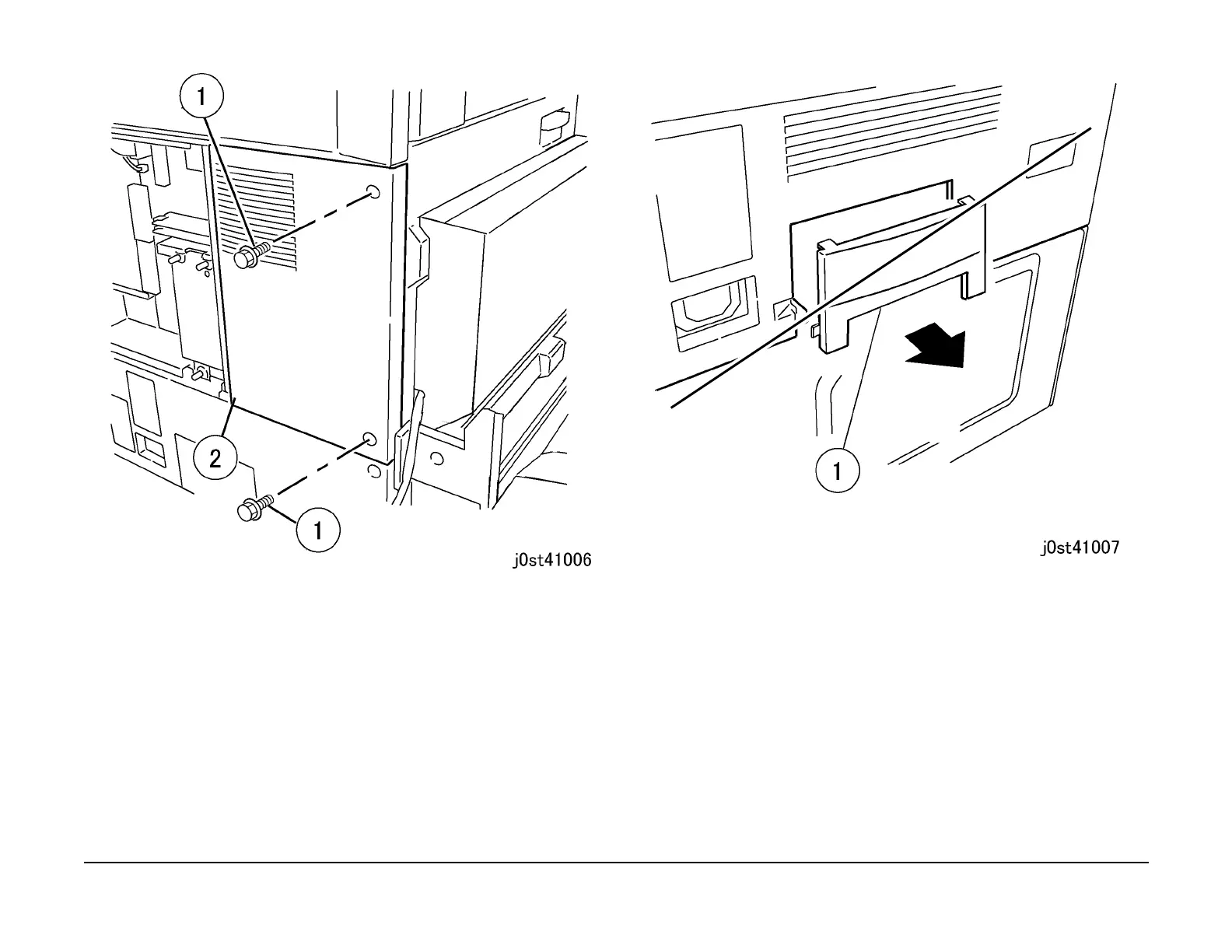

Figure 2 Removing the Rear Middle Cover
3. For the Duplex and Finisher models, remove the cover. (Figure 3)
1. Pull out to remove it.
Figure 3 Removing the cover
4. Remove the Rear Lower Cover. (Figure 4)
1. Remove the screws (4).
2. Remove the Rear Lower Cover.
2
Remove the insert
cover
