Xerox WorkCentre 7132 Service Documentation

January 2007
4-85
WorkCentre 7132
REP 11.4.1
Repairs/Adjustments
Reversion 4.0

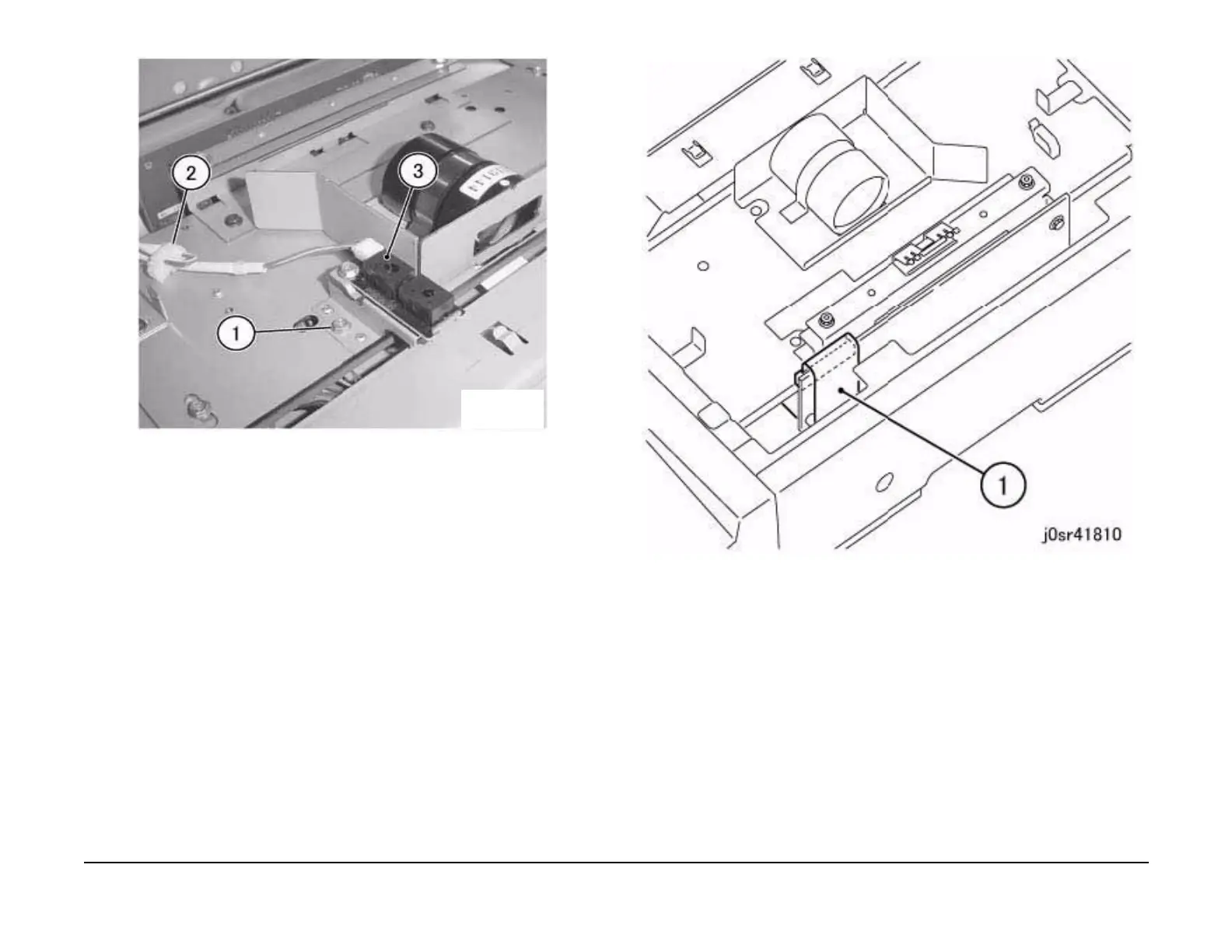

Figure 2 Removing the APS Sensor
4. Disconnect the CCD Flat Cable. (Figure 3)
1. Take off the hook.
2. Disconnect the CCD Flat Cable.
Figure 3 Disconnecting the FFC CCD Cable
5. Replace the Lens Kit Assembly. (Figure 4)
1. Remove the screws (4).
2. Remove the Lens Kit Assembly.
3. Observe the orientation of the Lens Kit Assembly.
Sensor
