Xerox WorkCentre 7132 Service Documentation

January 2007
4-262
WorkCentre 7132
ADJ 11.6.1
Reversion 4.0
Repairs/Adjustments

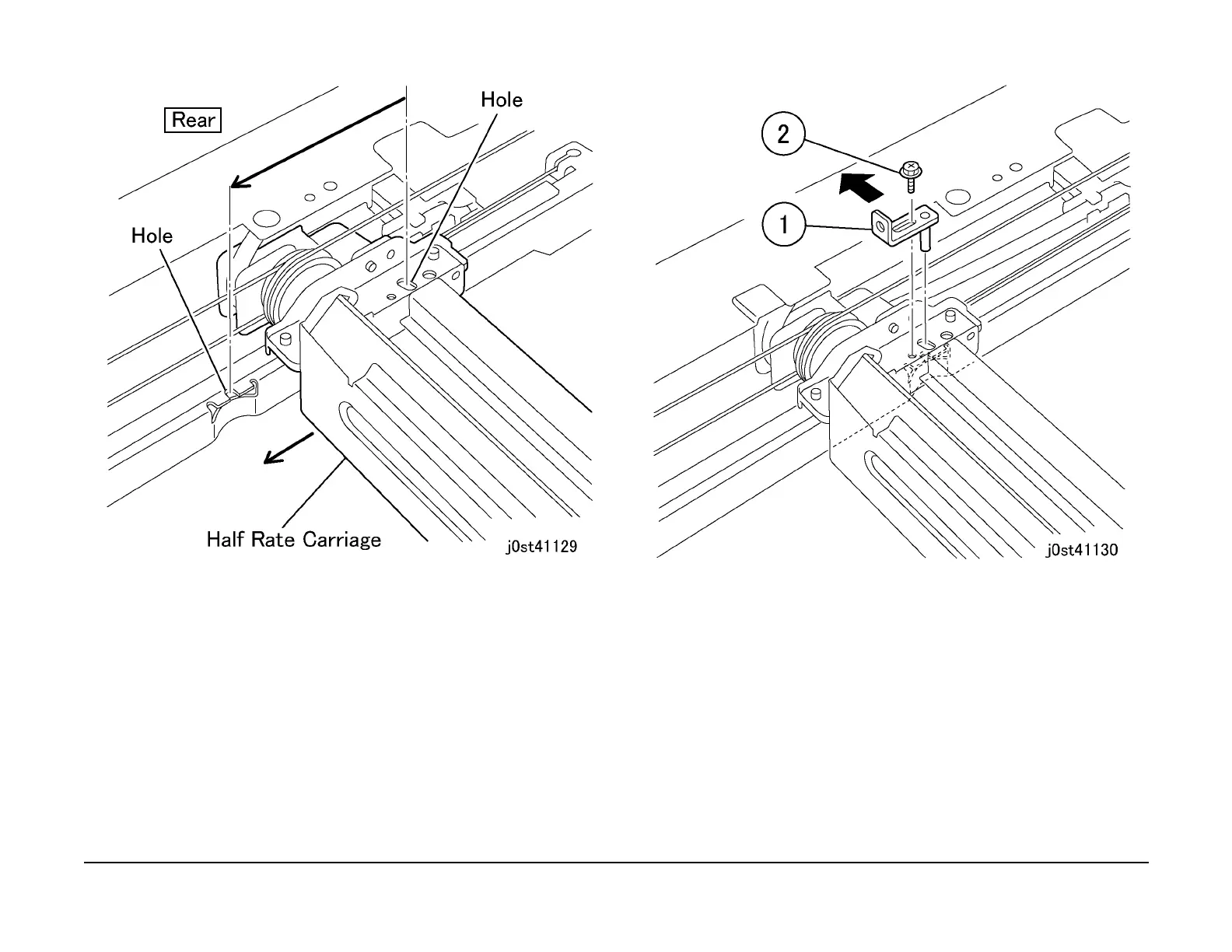

Figure 2 Position Adjustment of Half Rate Carriage 1/3
6. Fix the tool to the Half Rate Carriage. (Figure 3)
NOTE: Install the tools near the edges (the front tool to the front and the rear tool to the
rear).
1. Fix the tool. (Front/Rear)
2. Secure it with a screw.
Figure 3 Position Adjustment of Half Rate Carriage 2/3
NOTE: The fixing position of the pulley can be changed if the tool holes of the Half Rate
Carriage and the rail are not aligned and the tool is not fixed in place. (Figure 4)
1. Loosen the screws (2).
2. Turn the Pulley until the tool hole aligns.
3. Align the shaft concave with the Pulley end face and tighten the screws (2).
