Xerox WorkCentre 7132

January 2007
4-264
WorkCentre 7132
ADJ 11.6.1
Reversion 4.0
Repairs/Adjustments

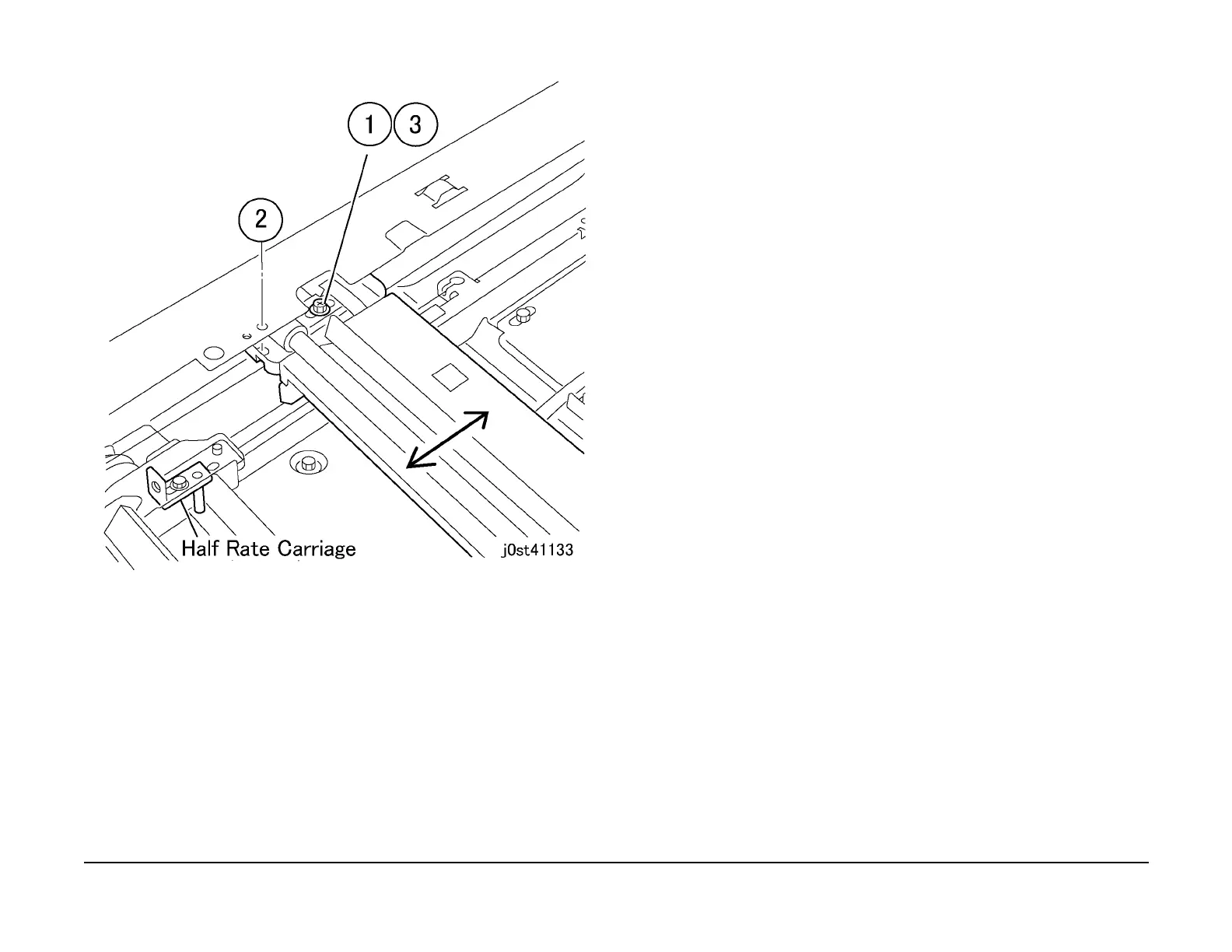

Figure 6 Position Adjustment of Full Rate Carriage 2/2
8. When adjusting the front position of Full Rate Carriage, move the tool for Half Rate Car-
riage to the front of Full Rate Carriage before doing the adjustment.
At this time the rear tool for Full Rate Carriage remains installed.
