ADSP-21368 SHARC Processor Hardware Reference B-7
Interrupts

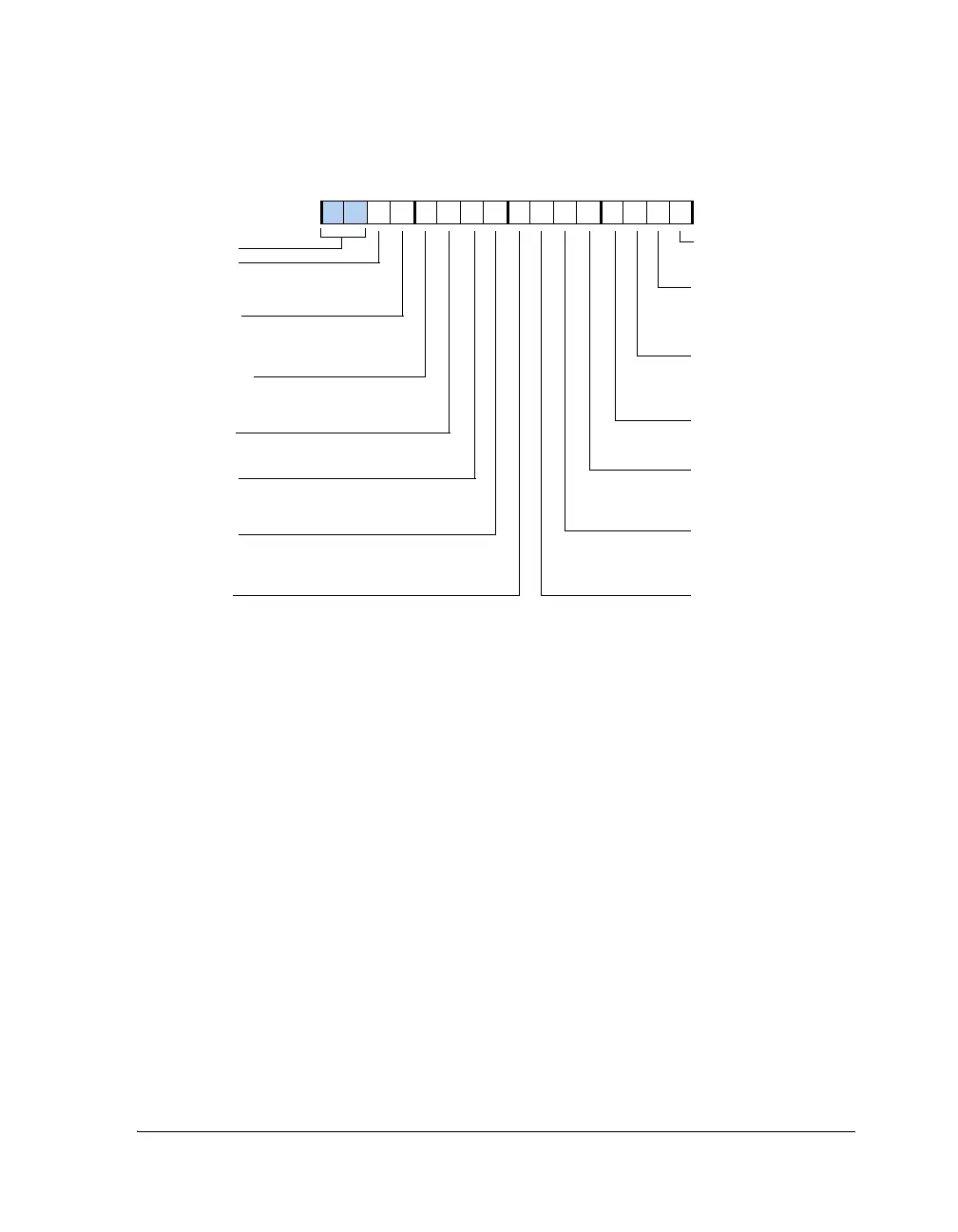

Figure B-1. LIRPTL Register (Bits 16–31)
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16
0000000000000000
P13IMSK
P12IMSK
Reserved
Programmable Interrupt 12
Mask (DAI1 Interrupt Mask)
P18IMSKP
Programmable Interrupt 18 Mask
Pointer (SPI B Interrupt Mask Pointer)
P17IMSKP
Programmable Interrupt 17 Mask Pointer
(General-purpose IOP Timer2 Interrupt
Mask Pointer)
P13MASKP
Programmable Interrupt 12 Mask Pointer
(DAI1 Interrupt Mask Pointer)
P12IMSKP
P11MSKP
Programmable Interrupt 9 Mask Pointer
(External Port DMA Channel 0 Interrupt
Mask Pointer)
P10IMSKP
Programmable Interrupt 10 Mask Pointer
(General-Purpose IOP Timer1 Interrupt
Mask Pointer)
P9IMSKP
P17IMSK
Programmable Interrupt 17
Mask (General-Purpose IOP
Timer2 Interrupt Mask)
P18IMSK
Programmable Interrupt 18
Mask (SPI B Interrupt Mask)
P6IMSKP
Programmable Interrupt 6
Mask Pointer (SPORT0
Interrupt Mask Pointer)
P7IMSKP
Programmable Interrupt 7
Mask Pointer (SPORT2
Interrupt Mask Pointer)
P8IMSKP
Programmable Interrupt 8
Mask Pointer (SPORT4
Interrupt Mask Pointer)
LIRPTL
Programmable Interrupt 13
Mask (EPDMA1 Interrupt
Mask)
Defaults in parenthesis
Programmable Interrupt 13 Mask Pointer
(EPDMA1 Interrupt Mask Pointer)
Programmable Interrupt 11 Mask Pointer
(SPORT7 Interrupt Mask Pointer)
