R01UH0823EJ0100 Rev.1.00 Page 1328 of 1823

Jul 31, 2019

RX23W Group 37. Serial Sound Interface (SSI)

(2) Reception Using Interrupts

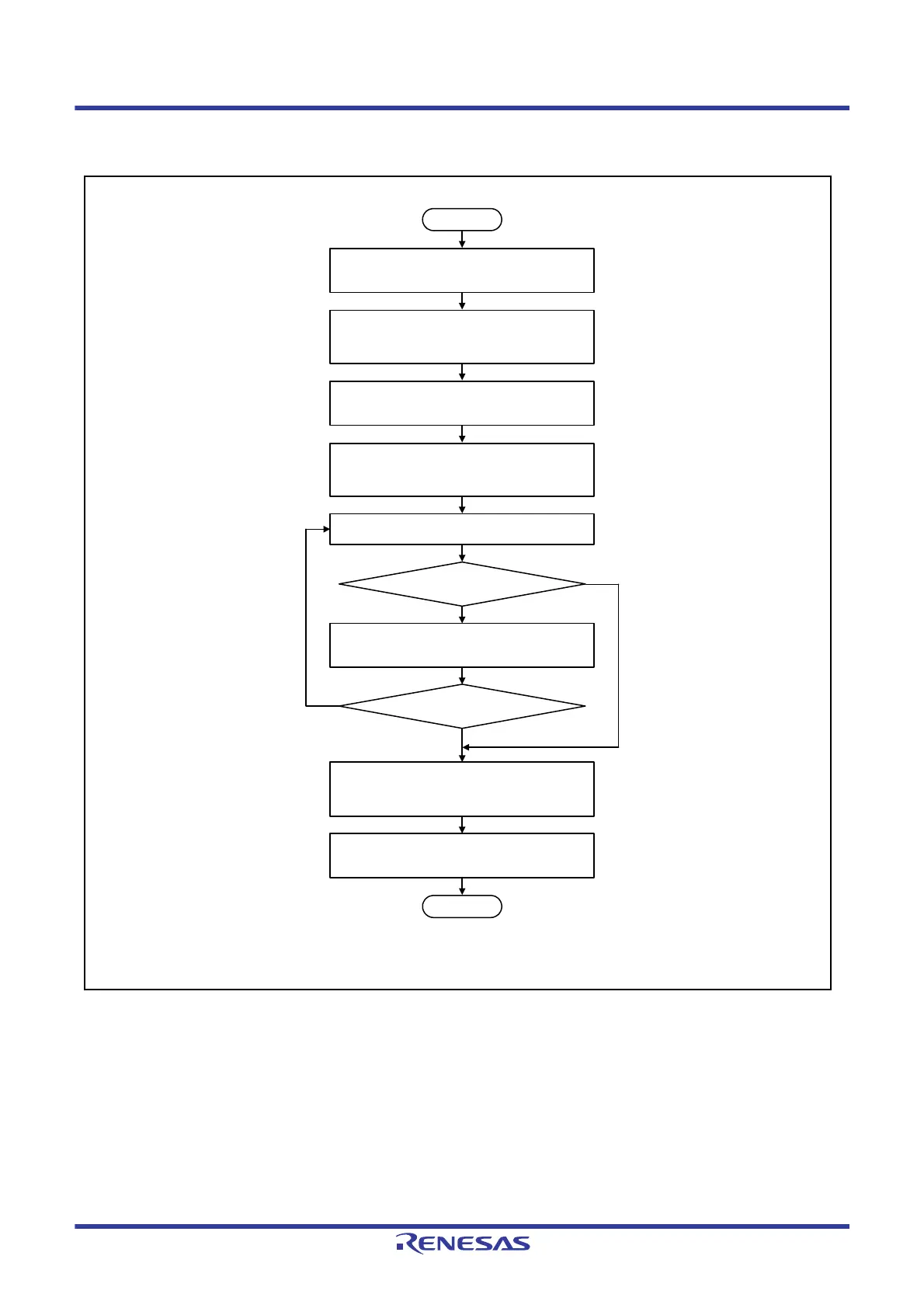

Figure 37.21 Reception Using Interrupts

Start

Set the SSIFCR.AUCKE bit to 1 in master

mode.

Set the SSICR register

configuration bits.

Setup the interrupt controller.

Enable an error interrupt,

enable a receive interrupt,

enable receive operation.

Wait for an interrupt.

Error interrupt?

Receive more data?

Wait for an idle interrupt

from this module

End

Yes

Read receive data,

clear the SSIFSR.RDF flag

Yes

Note 1. If an error interrupt (underflow/overflow) occurs, go back to the start in the flowchart again.

Disable receive operation,

disable an error interrupt,

enable an idle interrupt.
