RX23W Group 46. Temperature Sensor (TEMPSA)

T: Measured temperature (°C)

Vs: Voltage output by the temperature sensor when the temperature is measured (V)

V1: Voltage output by the temperature sensor when Ta = Tj = 88°C and AVCC0 = VREFH0 = 3.3 V (V)

Slope: Temperature gradient listed in

Table 51.48 ÷ 1000 (V/°C)

Error in the measured temperature (the range of variation is 3σ) is shown in

Figure 46.2.

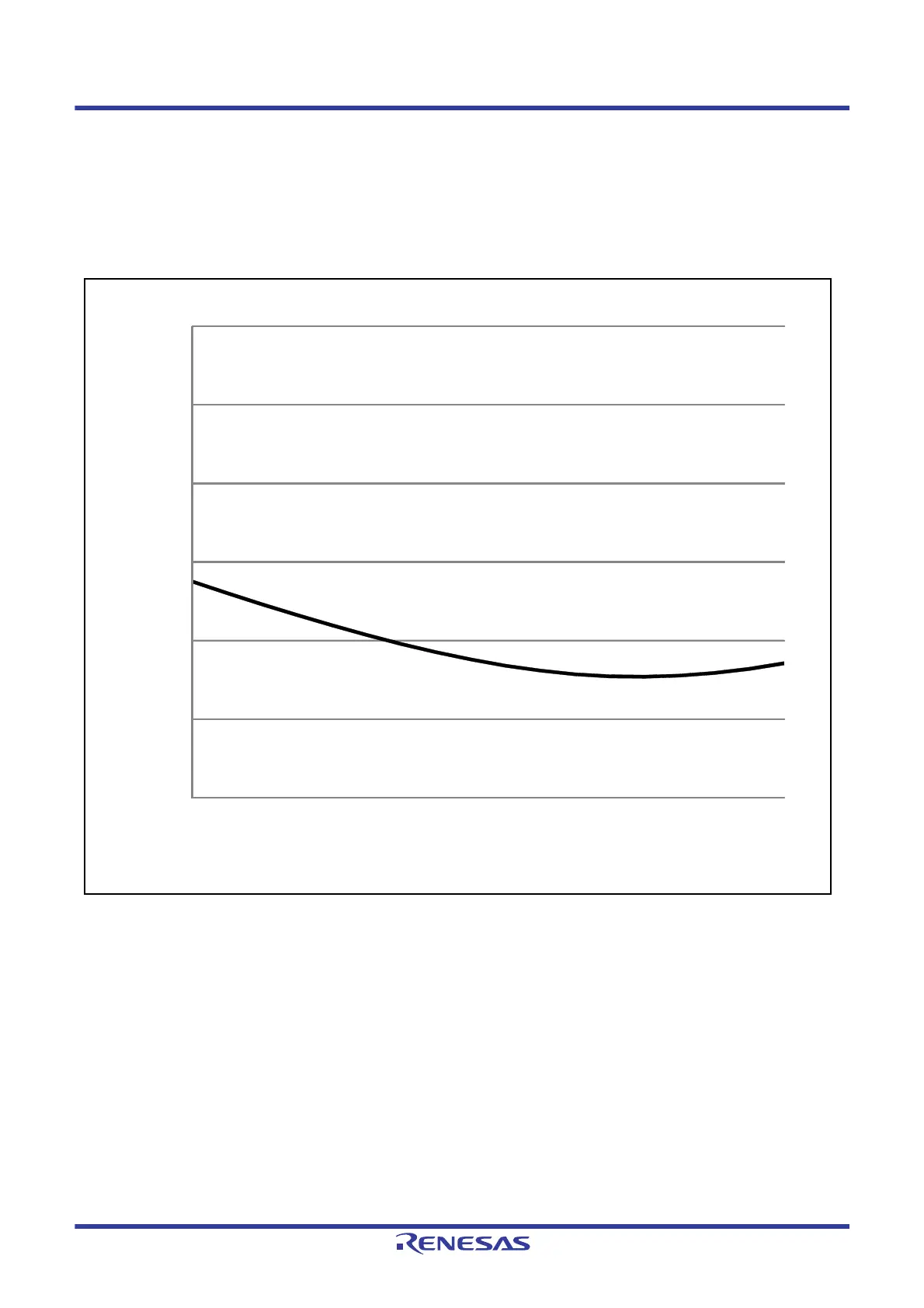

Figure 46.2 Error in the Measured Temperature (Designed Value)

46.3.2 Setting the 12-Bit A/D Converter

For details, refer to section 44, 12-Bit A/D Converter (S12ADE).

±0.0

±2.0

±4.0

±6.0

±8.0

±10.0

±12.0

-40 -20 0 20 40 60 80 100 120

Measured temperature [°C]

Error (3) [°C]
