R01UH0823EJ0100 Rev.1.00 Page 1690 of 1823

Jul 31, 2019

RX23W Group 50. Flash Memory (FLASH)

50.7.4 Software Command Usage

This section describes how to use each software command, using flowcharts.

50.7.4.1 Program

Figure 50.12 and Figure 50.13 show the procedure to issue the program command.

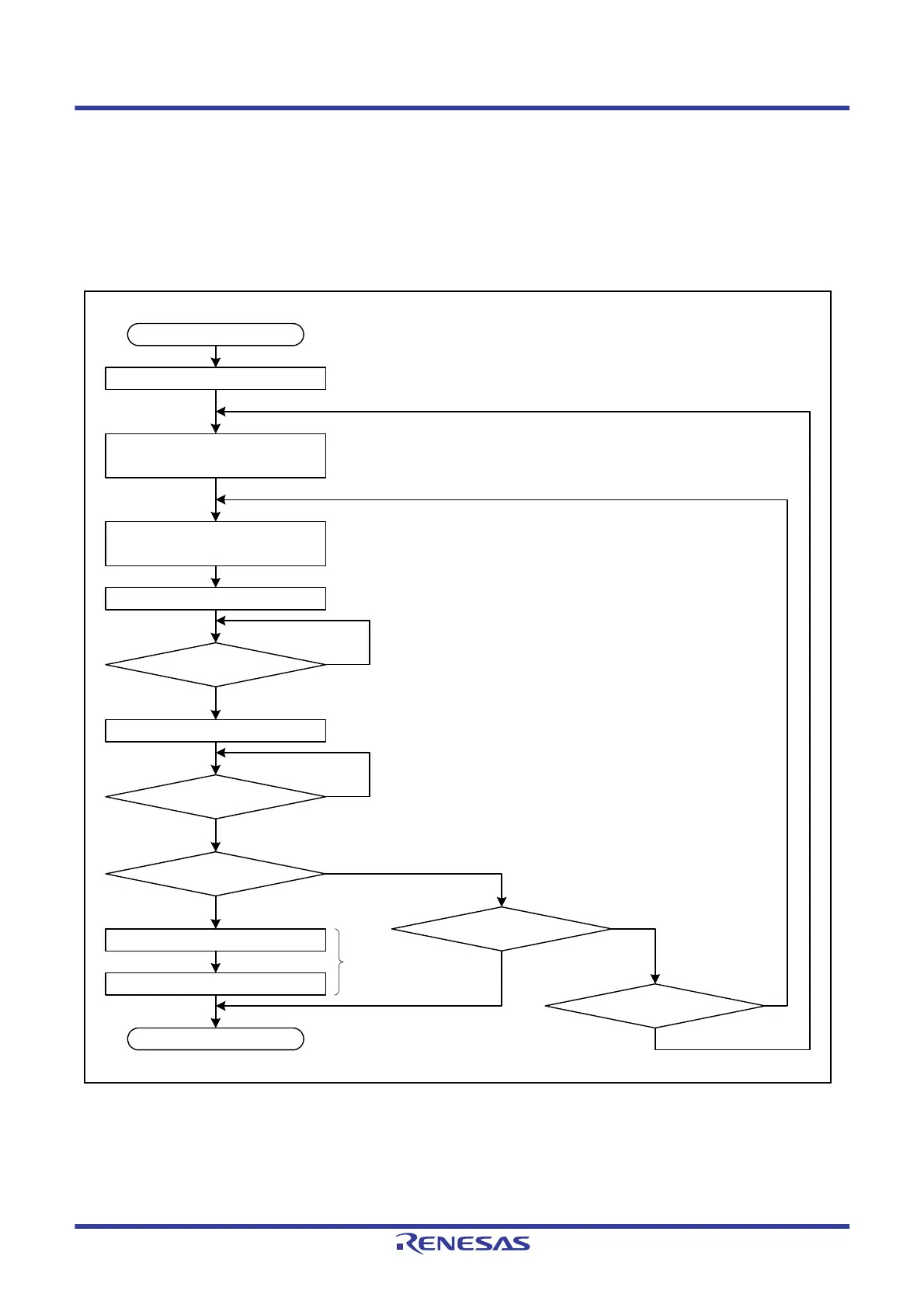

Figure 50.12 Procedure to Issue the Program Command for the ROM

FASR.EXS bit = 0

Set programming address in registers

FSARH and FSARL

Yes

Set programming data in registers

FWB0, FWB1, FWB2, and FWB3

FCR register = 81h

FCR register = 00h

FSTATR1.FRDY flag = 1?

End in ROM P/E mode

FSTATR1.FRDY flag = 0?

Yes

Continue ROM programming?

Yes

FSTATR0.ILGLERR flag = 1 or

FSTATR0.PRGERR flag = 1?

Yes

FRESETR.FRESET bit = 1

FRESETR.FRESET bit = 0

Sequencer

initialization

Program continuous area?

Yes

Start in ROM P/E mode
