RX23W Group 6. Resets

6.3.7 Determination of Cold/Warm Start

By reading the CWSF flag in RSTSR1, the type of reset processing caused can be identified; that is, whether a power-on

reset has caused the reset processing (cold start) or a reset signal input during operation has caused the reset processing

(warm start).

The CWSF flag in RSTSR1 is set to 0 when a power-on reset occurs (cold start); otherwise the flag is not set to 0. The

flag is set to 1 when 1 is written to it through programming; it is not set to 0 even when 0 is written.

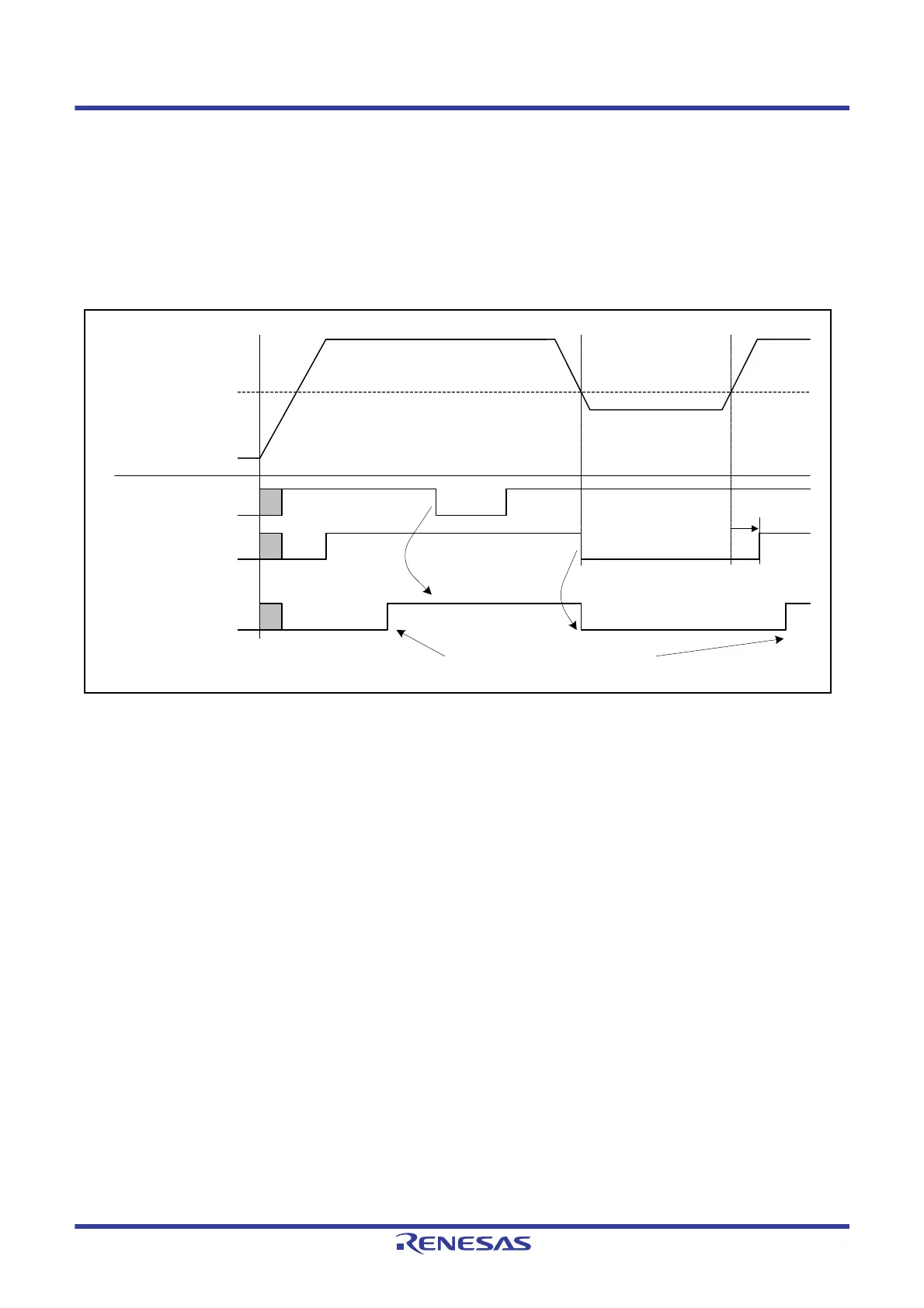

Figure 6.3 shows an example of cold/warm start determination operation.

Figure 6.3 Example of Cold/Warm Start Determination Operation

VPOR

External voltage VCC

RES# pin

POR detection signal

(Low is valid)

RSTSR1.CWSF flag

Set to 1 through programming

Not driven to 0 when a

low level is applied to

the RES# pin
