R01UH0823EJ0100 Rev.1.00 Page 1660 of 1823

Jul 31, 2019

RX23W Group 50. Flash Memory (FLASH)

50.2 ROM Area and Block Configuration

The maximum ROM size of this MCU is 512 Kbytes. The ROM area is divided into blocks. A block is 2-Kbyte area.

When executing the block erase command, the memory is erased by the block.

Figure 50.1 shows the ROM Area and

Block Configuration.

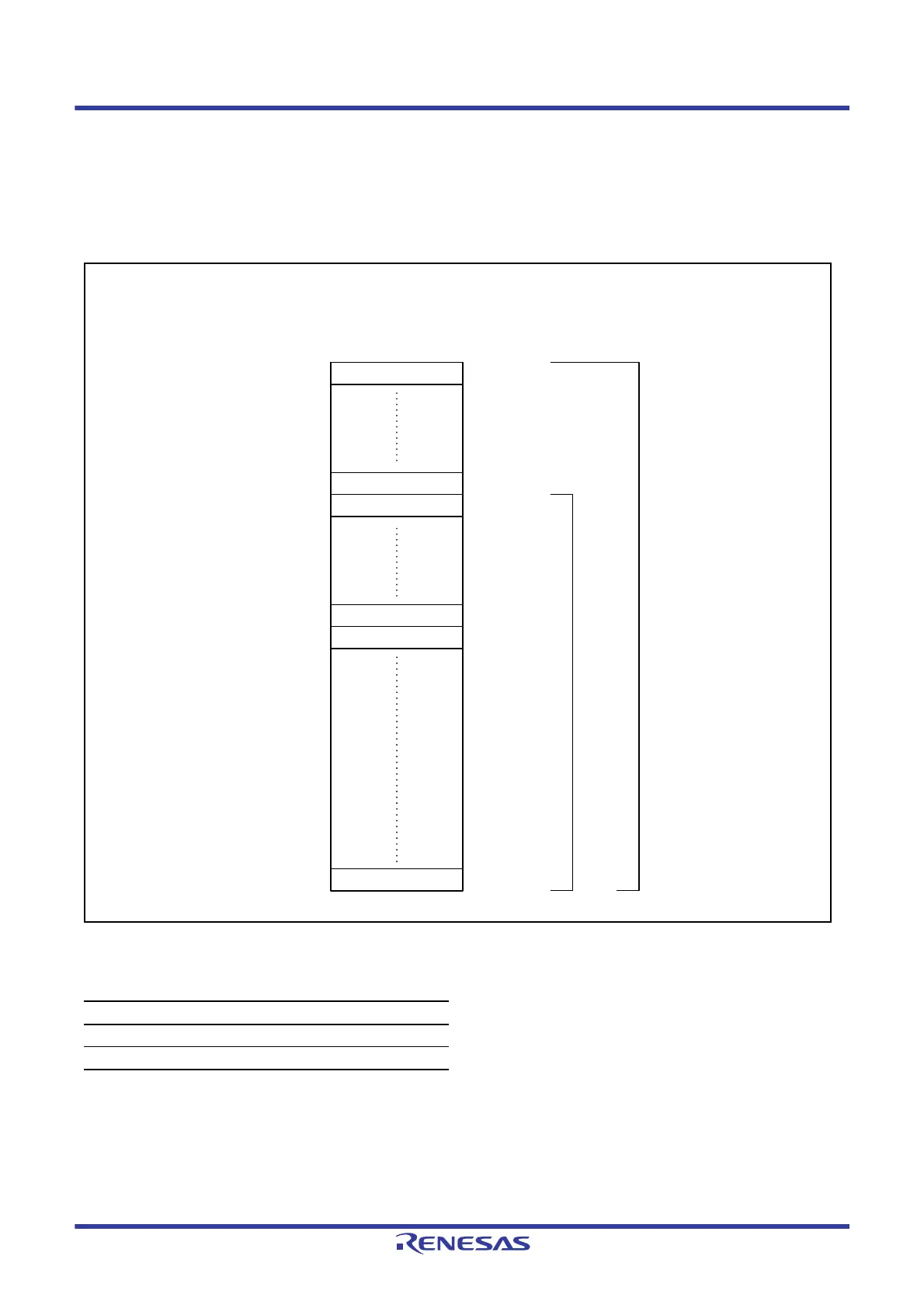

Figure 50.1 ROM Area and Block Configuration

Table 50.2 Correspondence Between ROM Capacity and Addresses for Reading

ROM Capacity Addresses for Reading

512 Kbytes FFF8 0000h to FFFF FFFFh

384 Kbytes FFFA 0000h to FFFF FFFFh

FC1A 0000h

FC18 0000h

384

Kbytes

512

Kbytes

FC1C 0000h

User area (block number)

1 block = 2 Kbytes

Address for programming/erasureAddress for reading

FFF8 0000h

FFFA 0000h

FFFC 0000h

FFFF FFFFh

(255)

(192)

(191)

(128)

(127)

(000)

FC1F FFFFh
